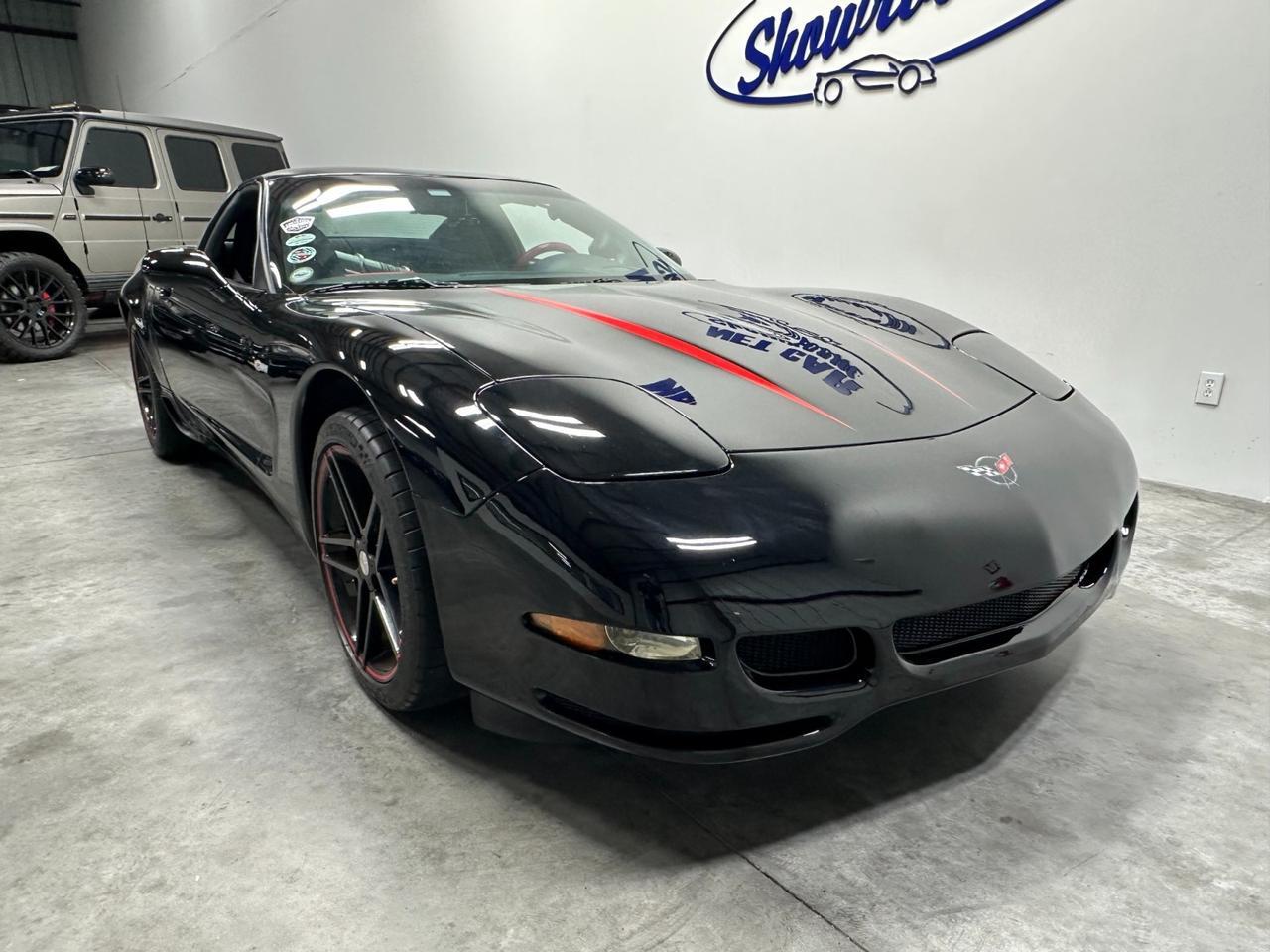

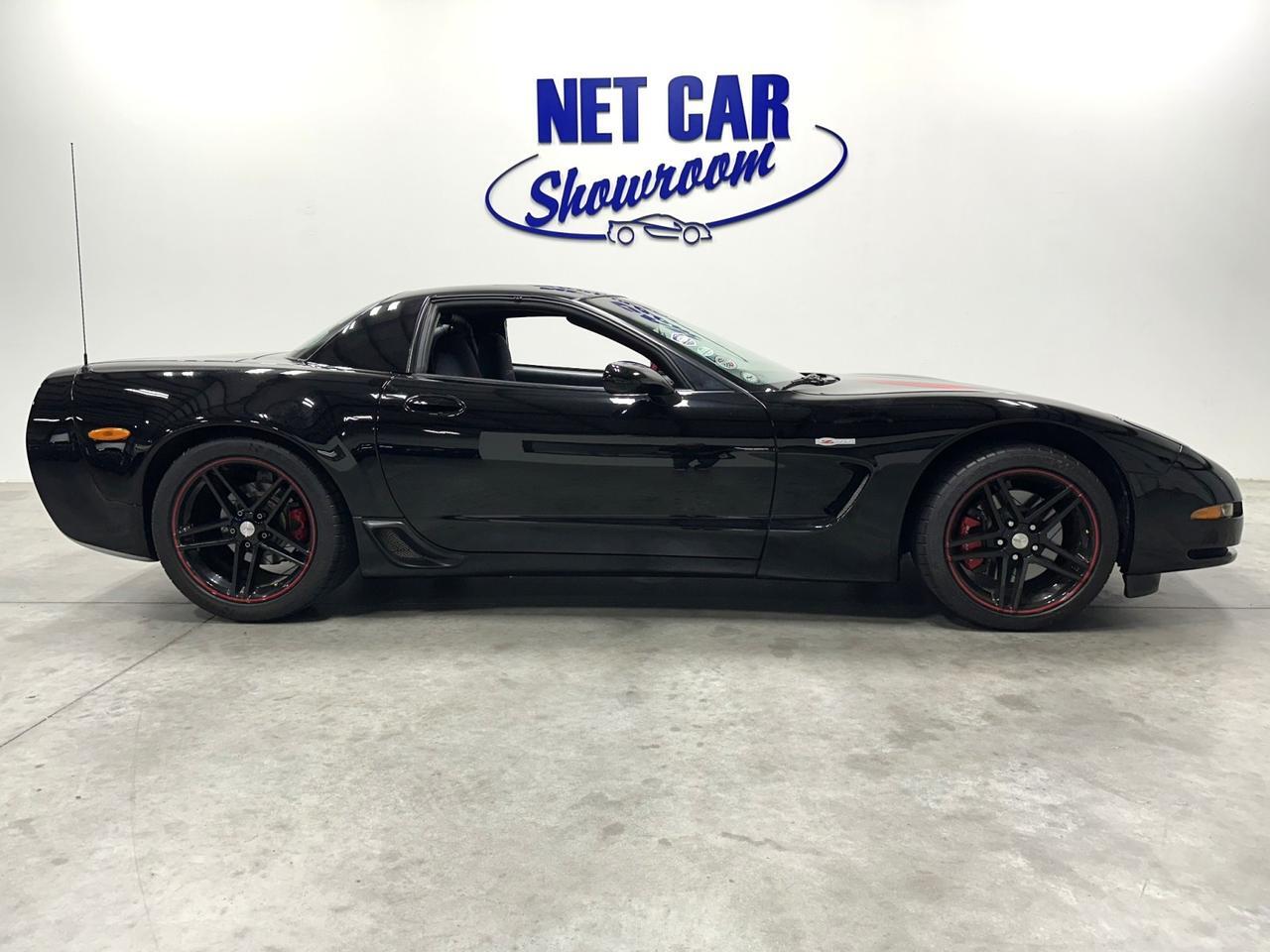

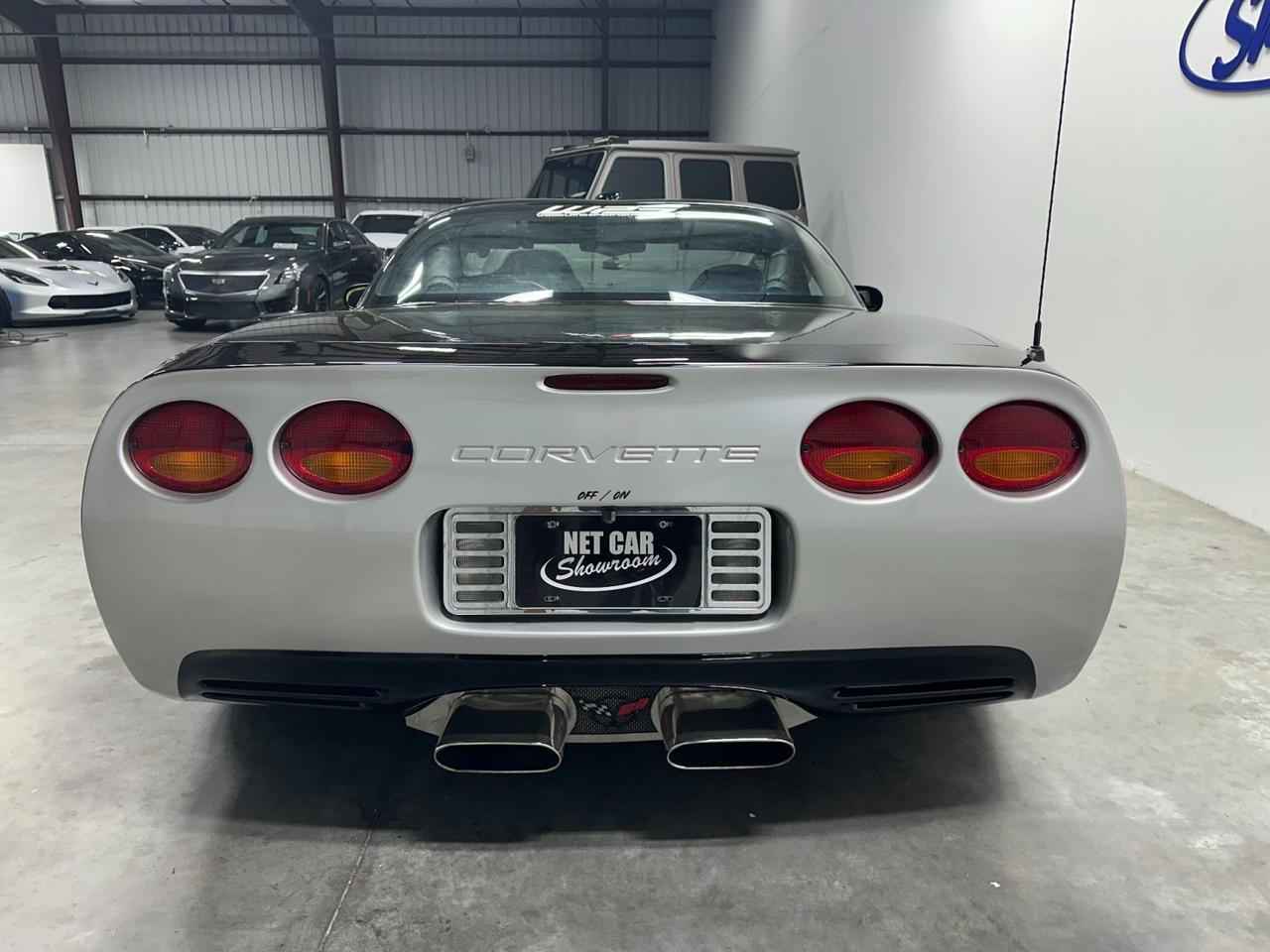

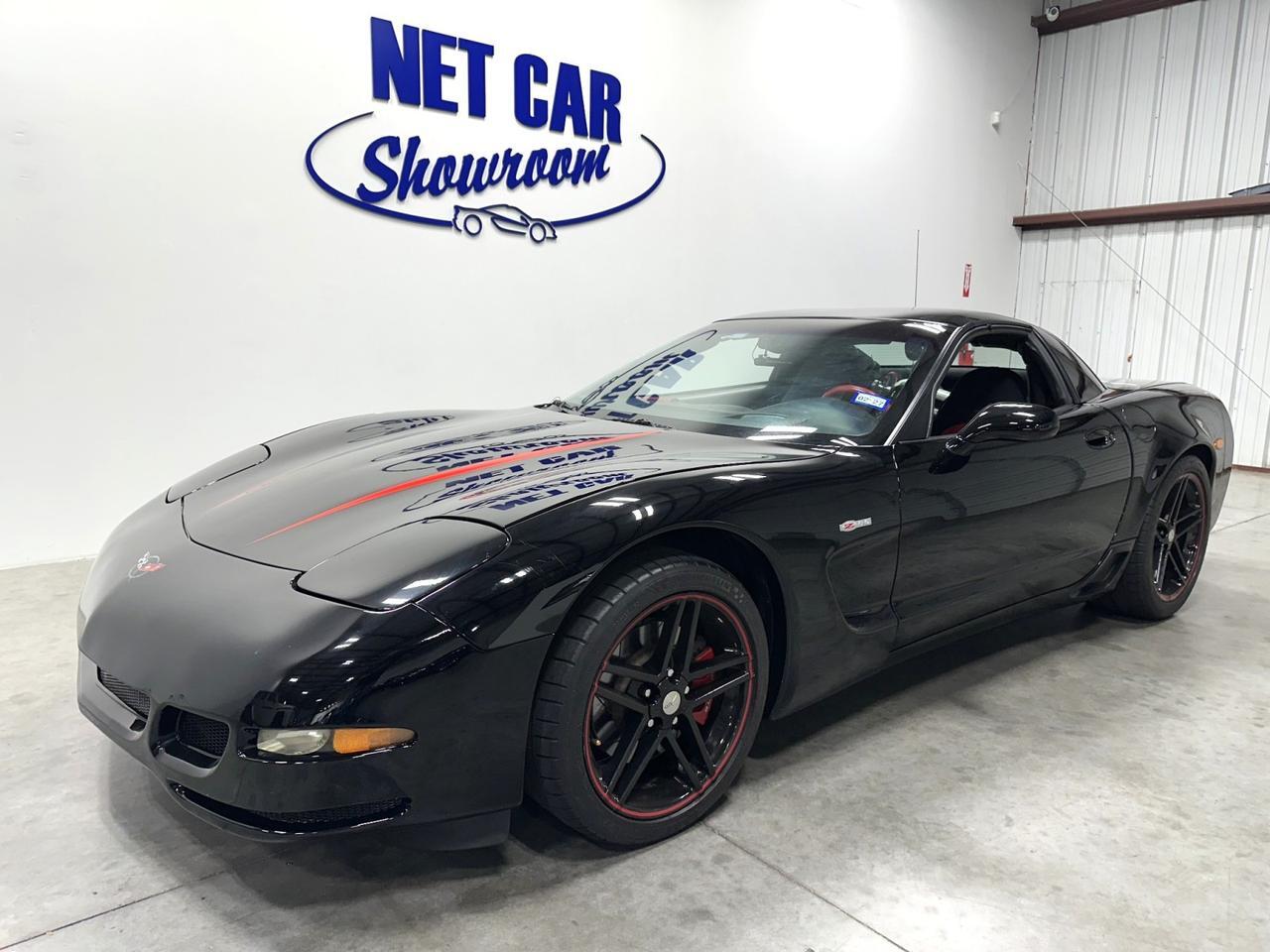

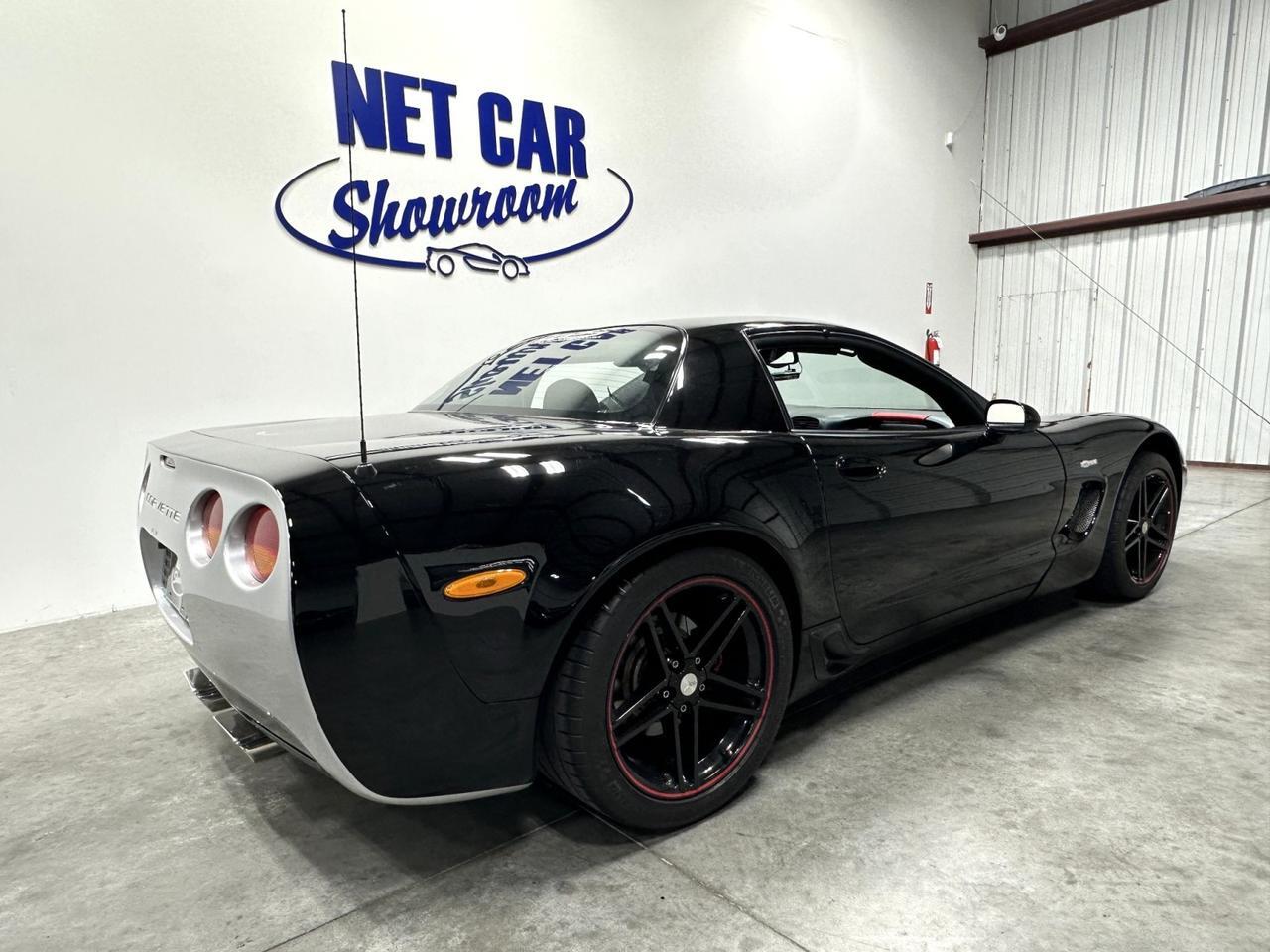

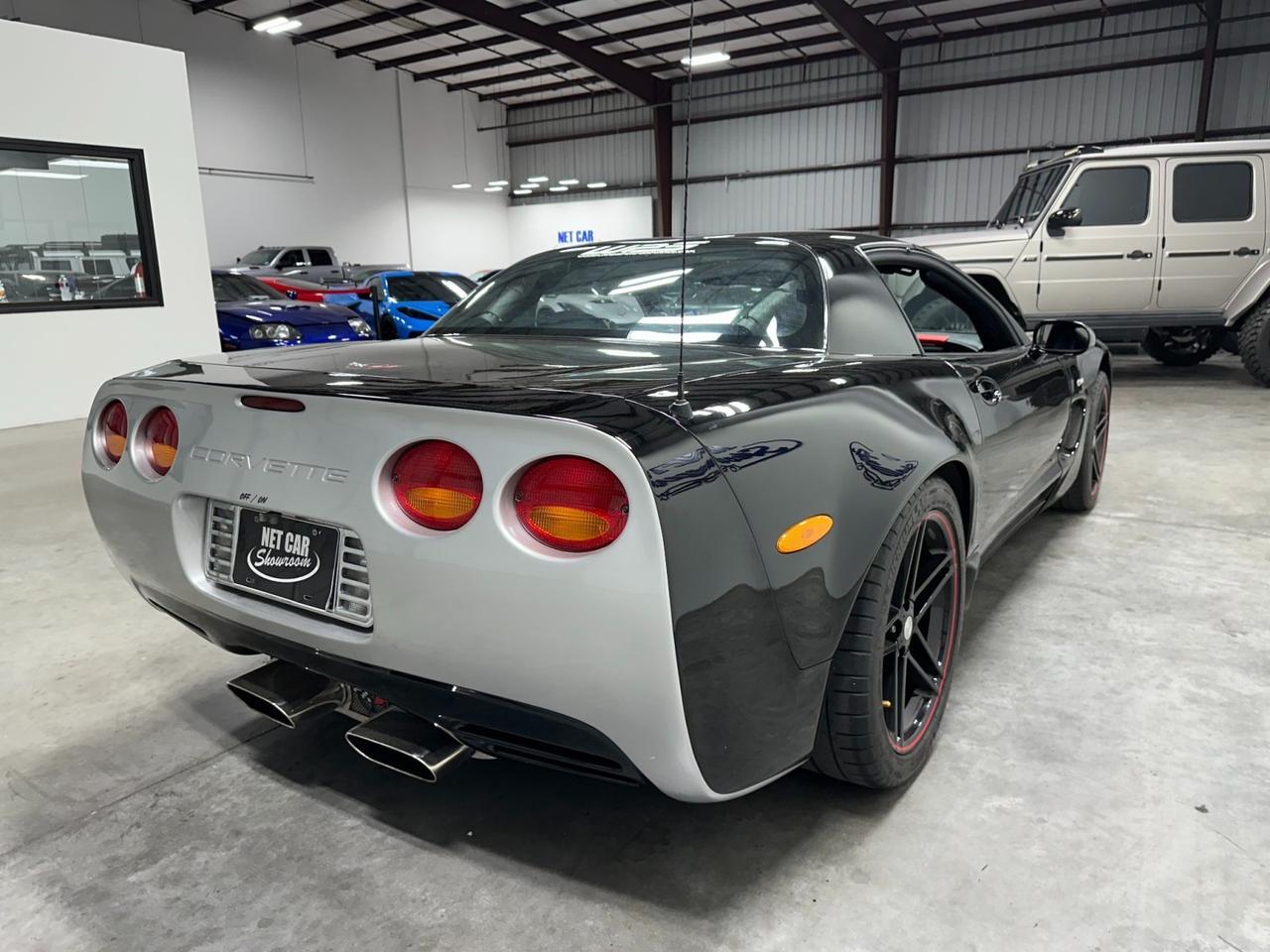

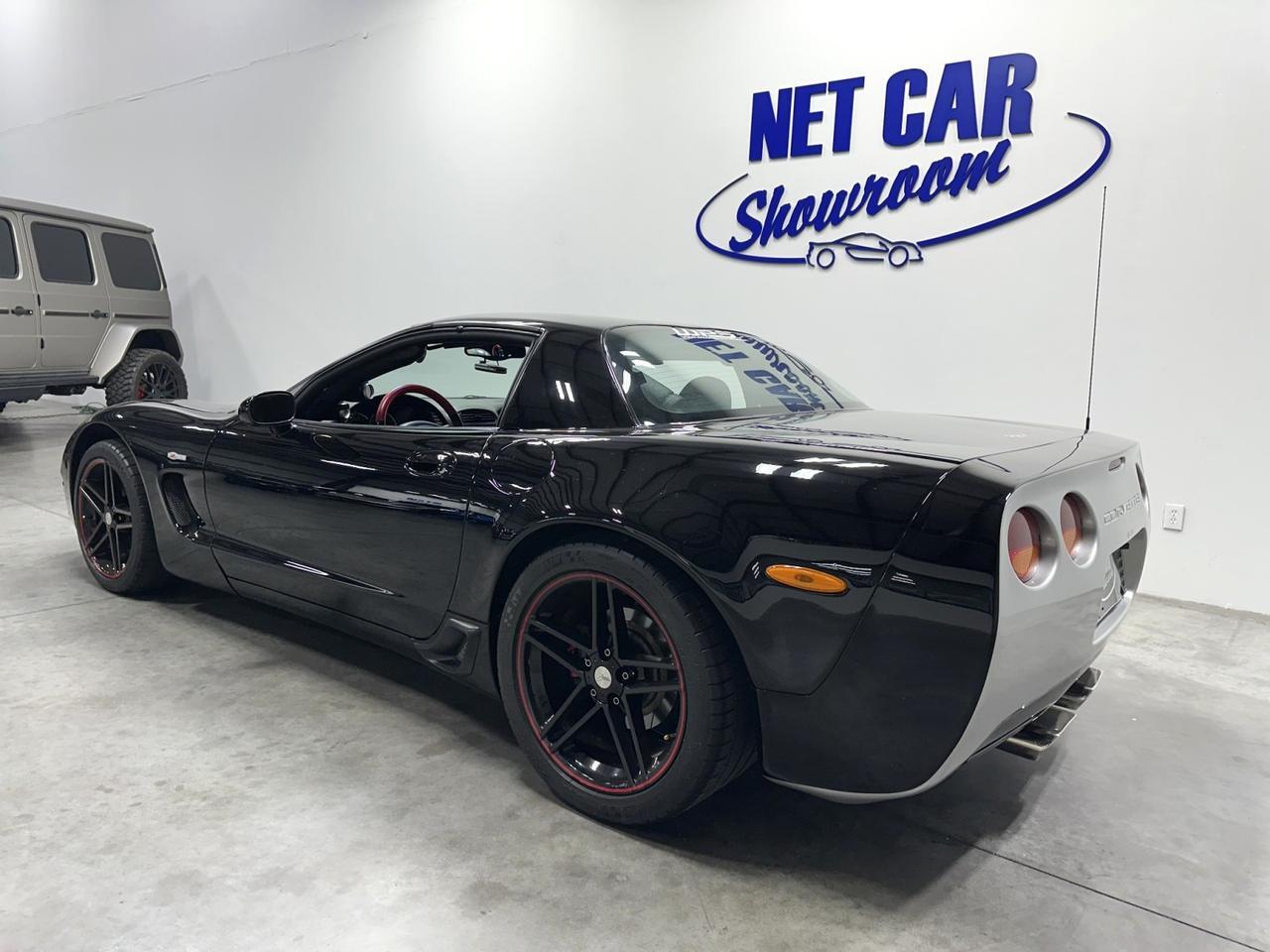

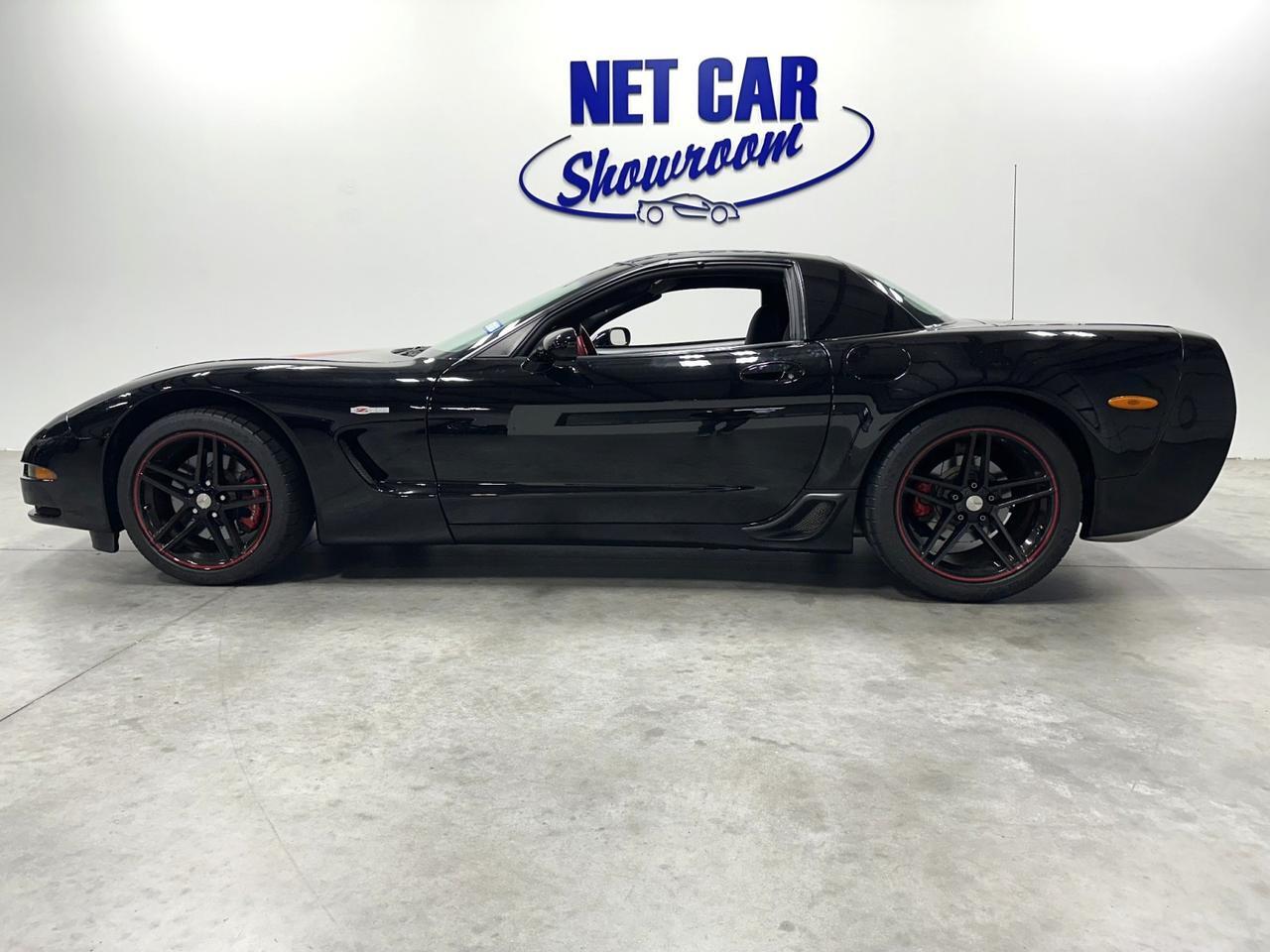

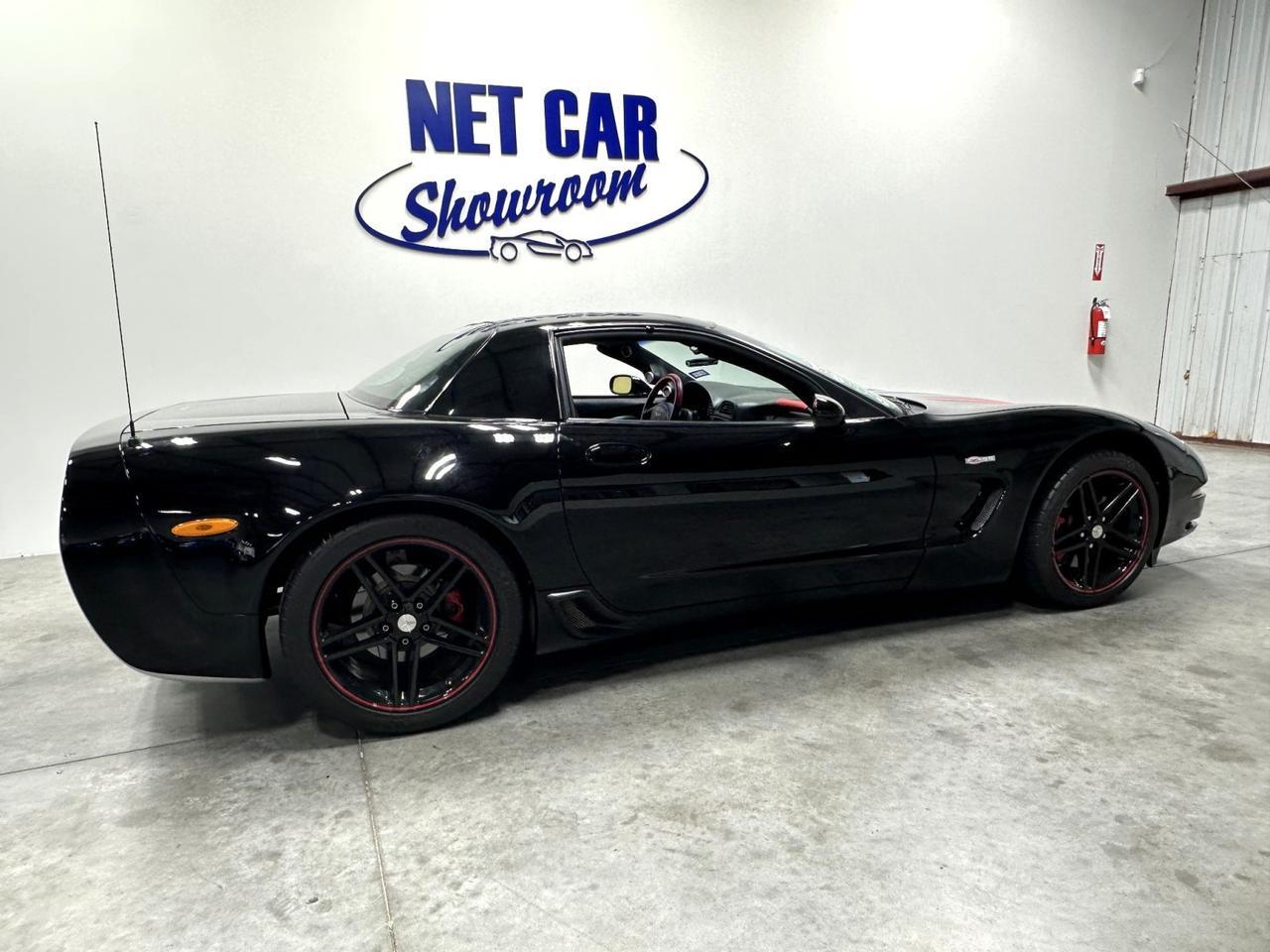

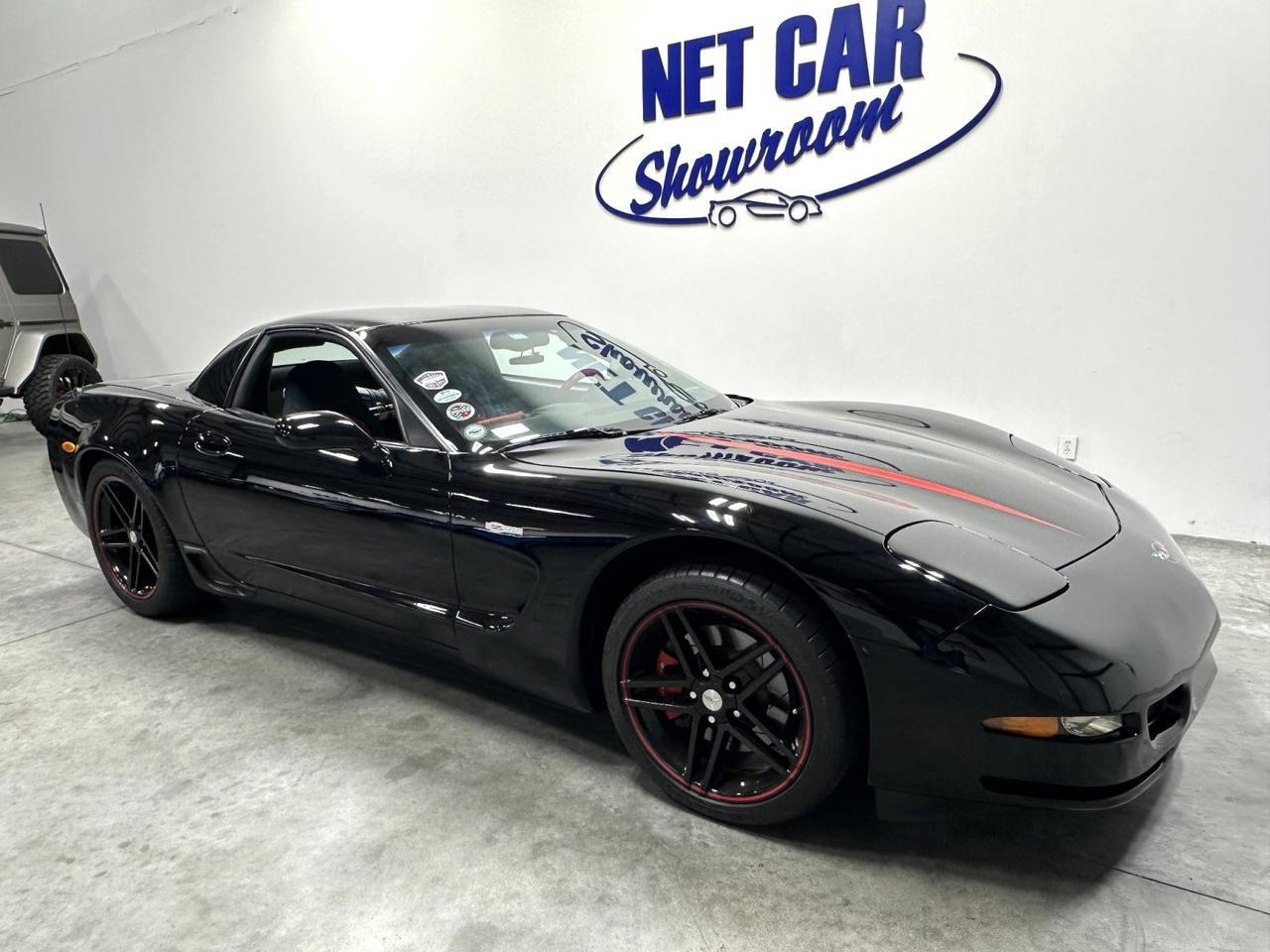

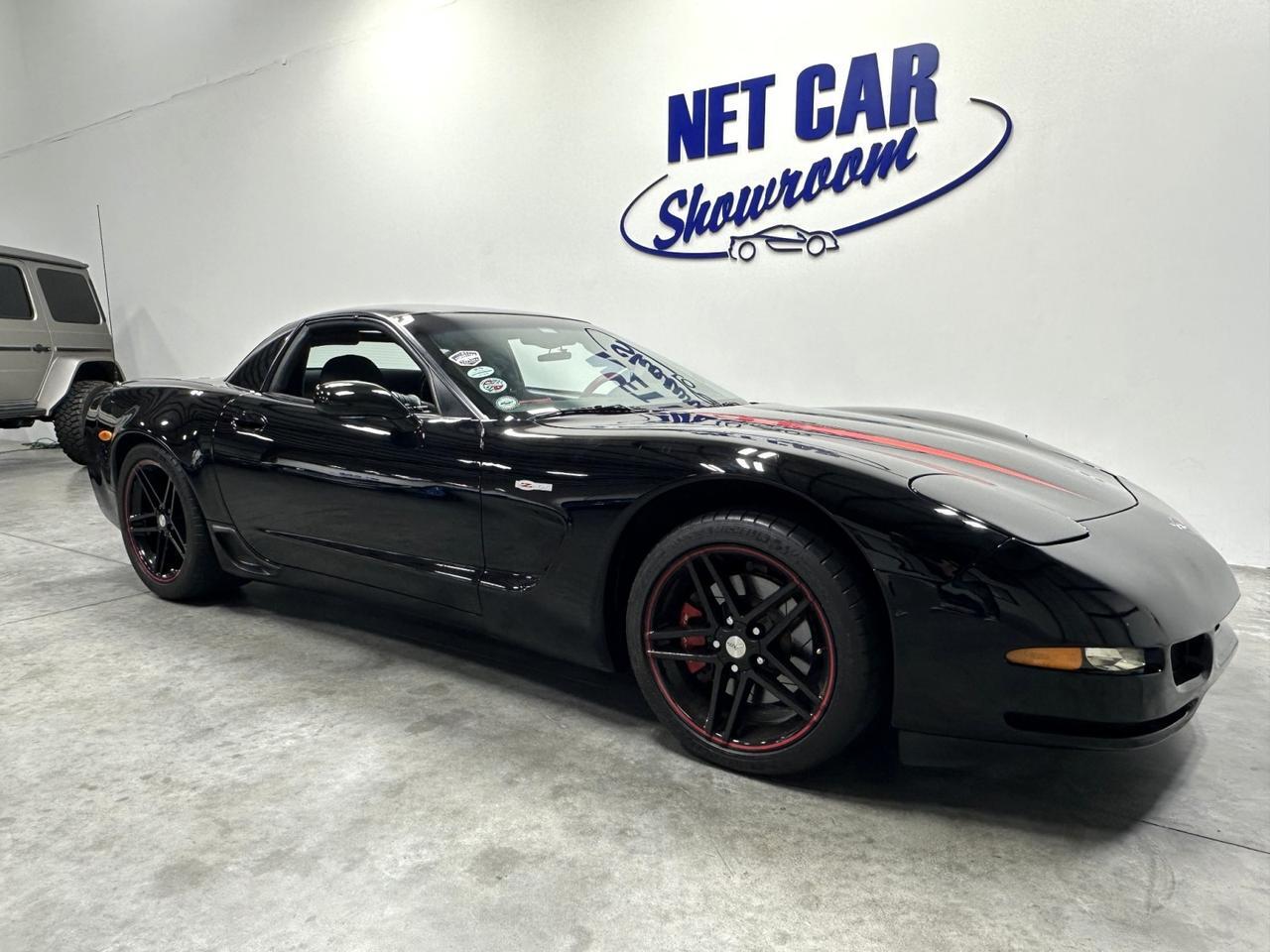

2002 Chevrolet Corvette Z06

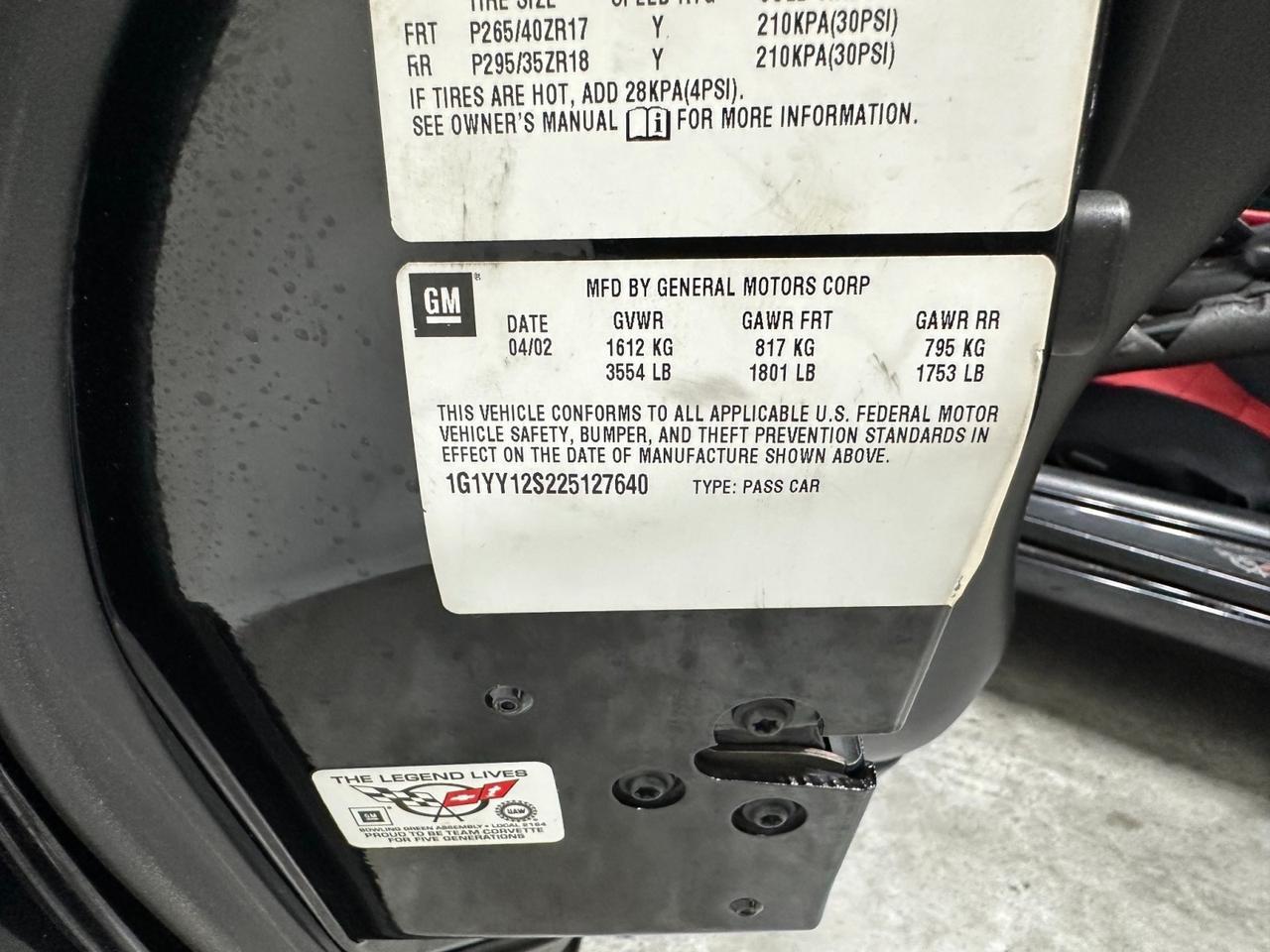

1G1YY12S225127640, Manual
Stock NCS0001528

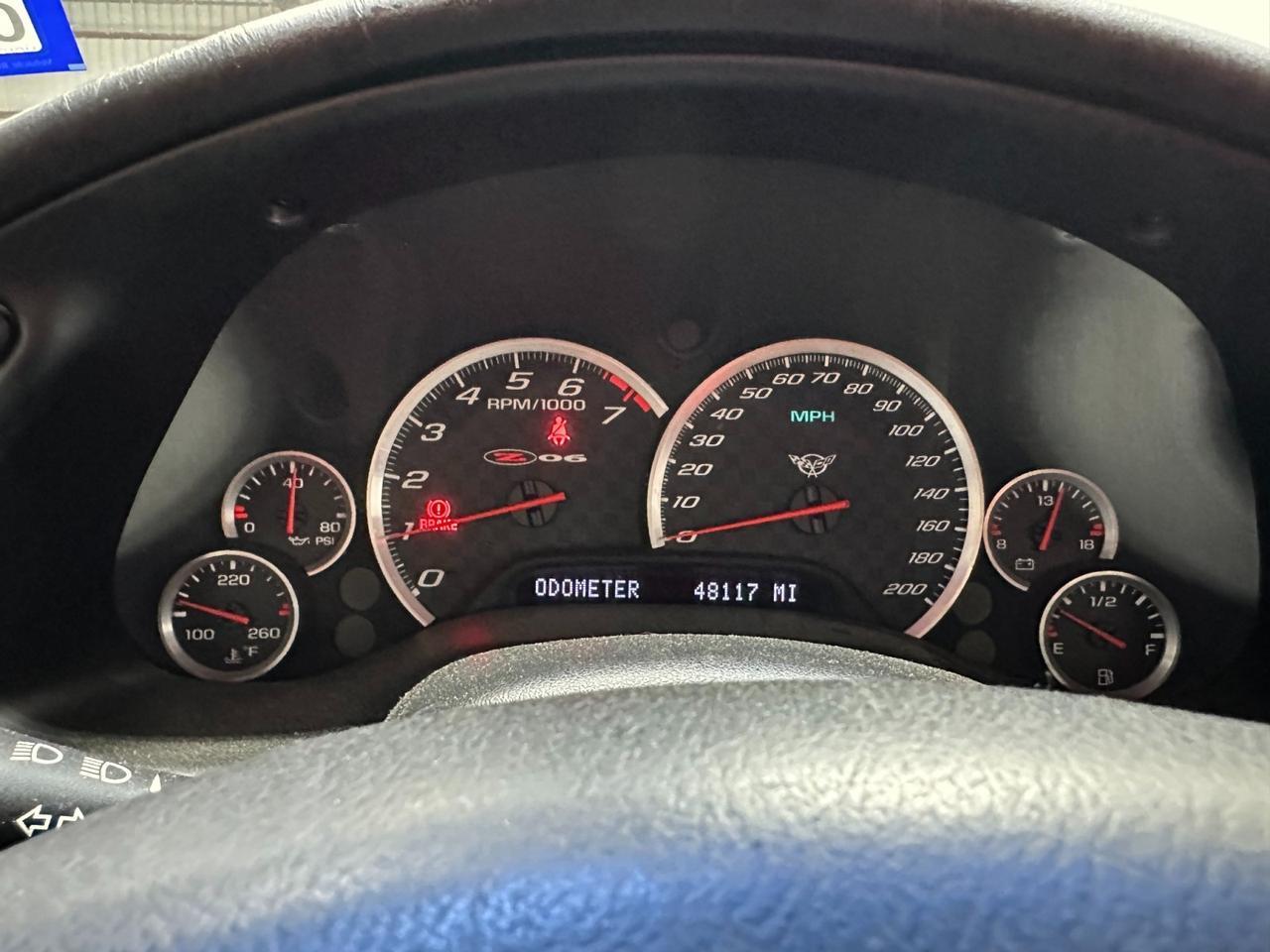

Mileage 48,117
Sale Price
$26,999
TEXT YOURSELF A LINK
Get more Info
Fields marked with asterisk (*) are required
8 Cyl
Manual
19/28 mpg
Black Interior
Coupe
Rear Wheel Drive

ABOUT THIS VEHICLE

Custom 2002 Chevrolet Corvette Z06 Loaded with over 40K in Modifications!
-
- Build Info.

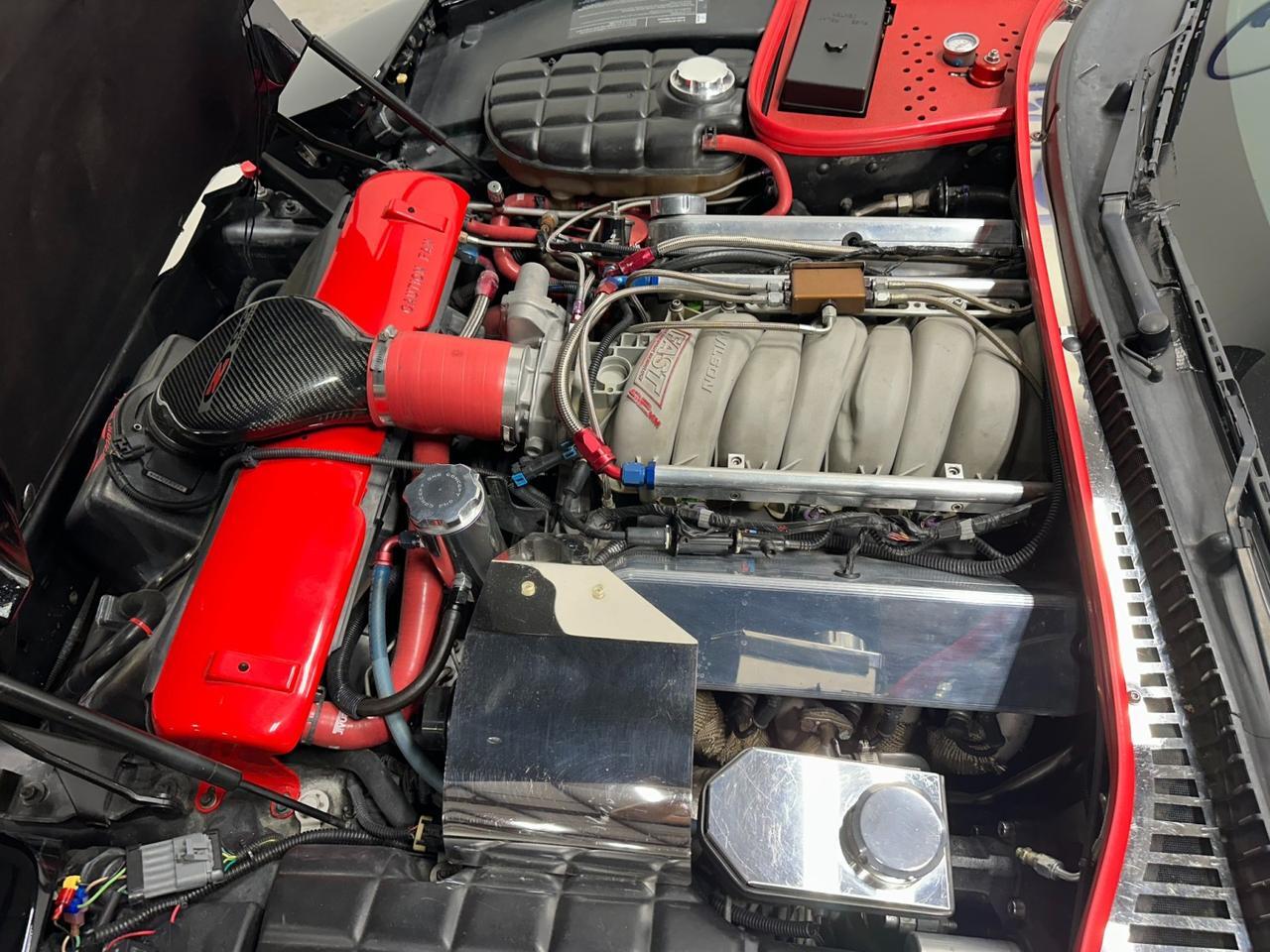

  • Camshaft:

  • COMP Hydraulic roller XR281HR, .26-.918-16 springs, timing set, retainers, locks, pushrods, rocker arm upgrade

  • Timing Cover:

    Quick Time Performance two piece

  • Cooling System:

    Ron Davis radiator (water, oil, PS), Meziere electric water pump, Elite Eng’g rad. screen, Kurt Urban vapor system

  • Accessory Drive:

    Powerbond underdrive pulleys, Katech belt tensioner

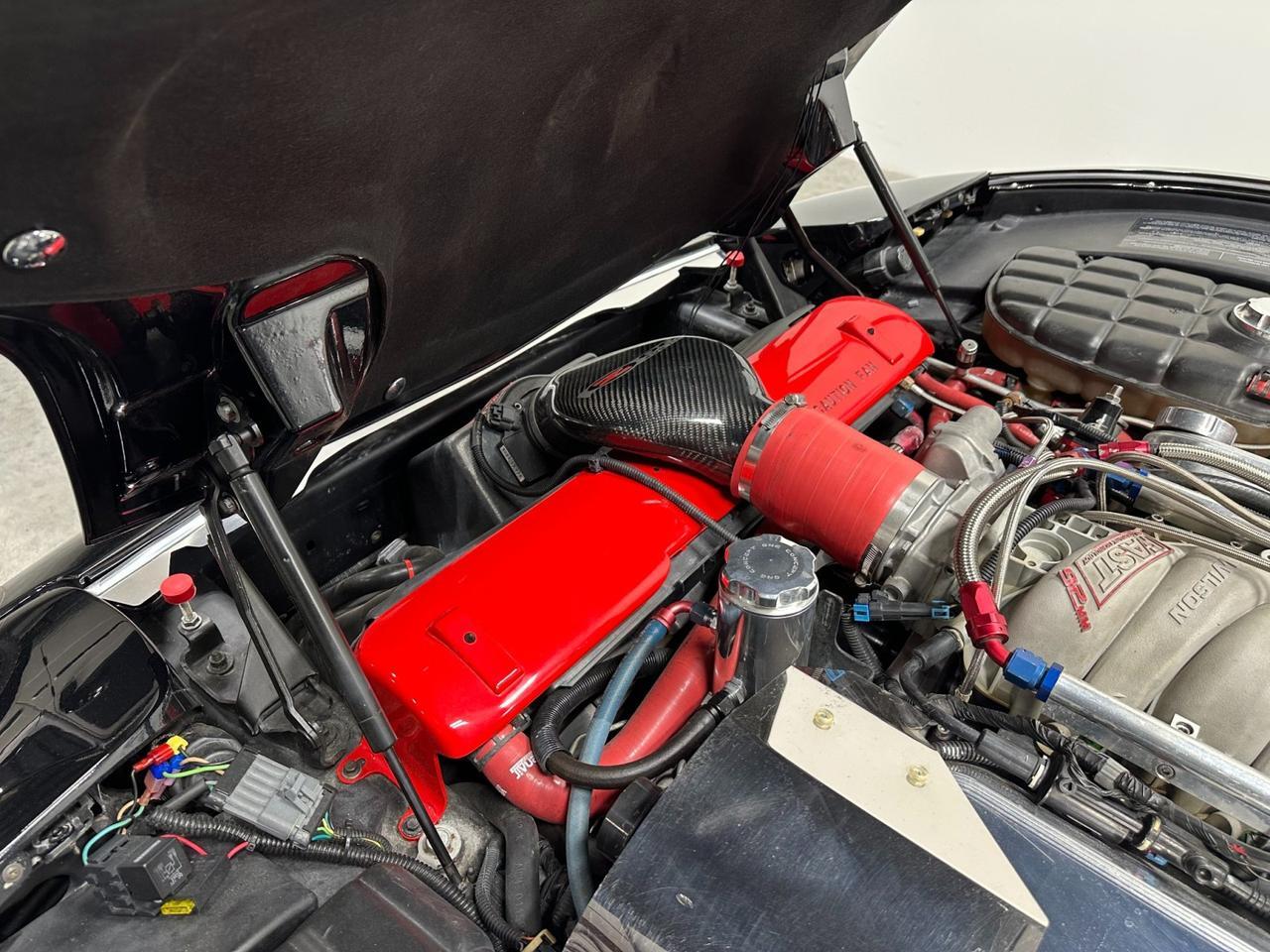

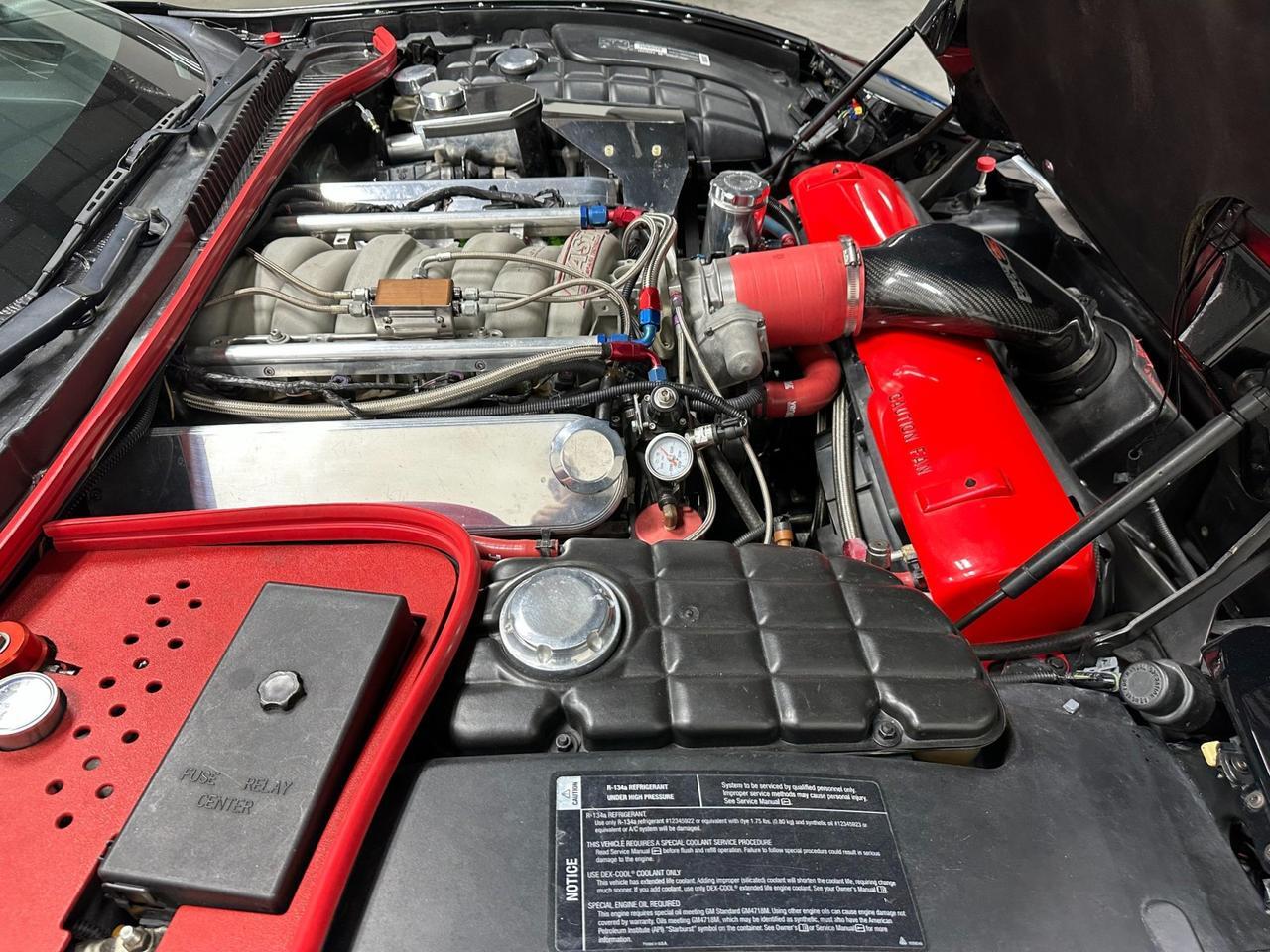

  • Air intake system:

    Breathless Air Products - Vortex Ram Air, high flow duct / coupling

  • Intake manifold:

    92 mm FAST, ported (VMAX Motorsports)

  • Throttle Body:

    GM LS2, 90 mm, CNC ported (VMAX), 997 cfm

  • Fuel Injectors:

    Ford SVO (42 lb/hr)

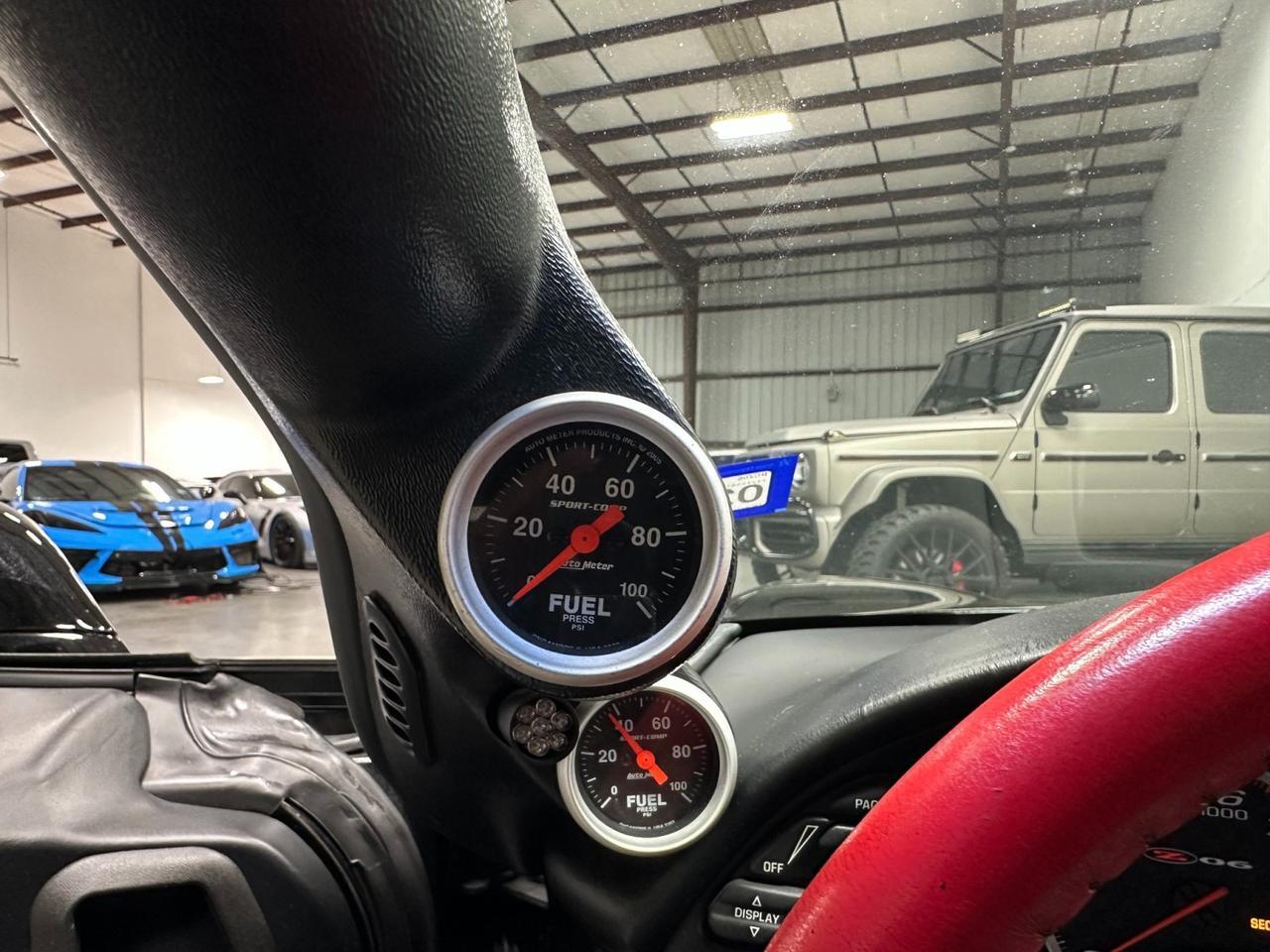

  • Fuel system:

    Walbro fuel pumps (dual 340 l/hr, in-tank), full supply / return fuel lines, pressure regulator, fuel filter

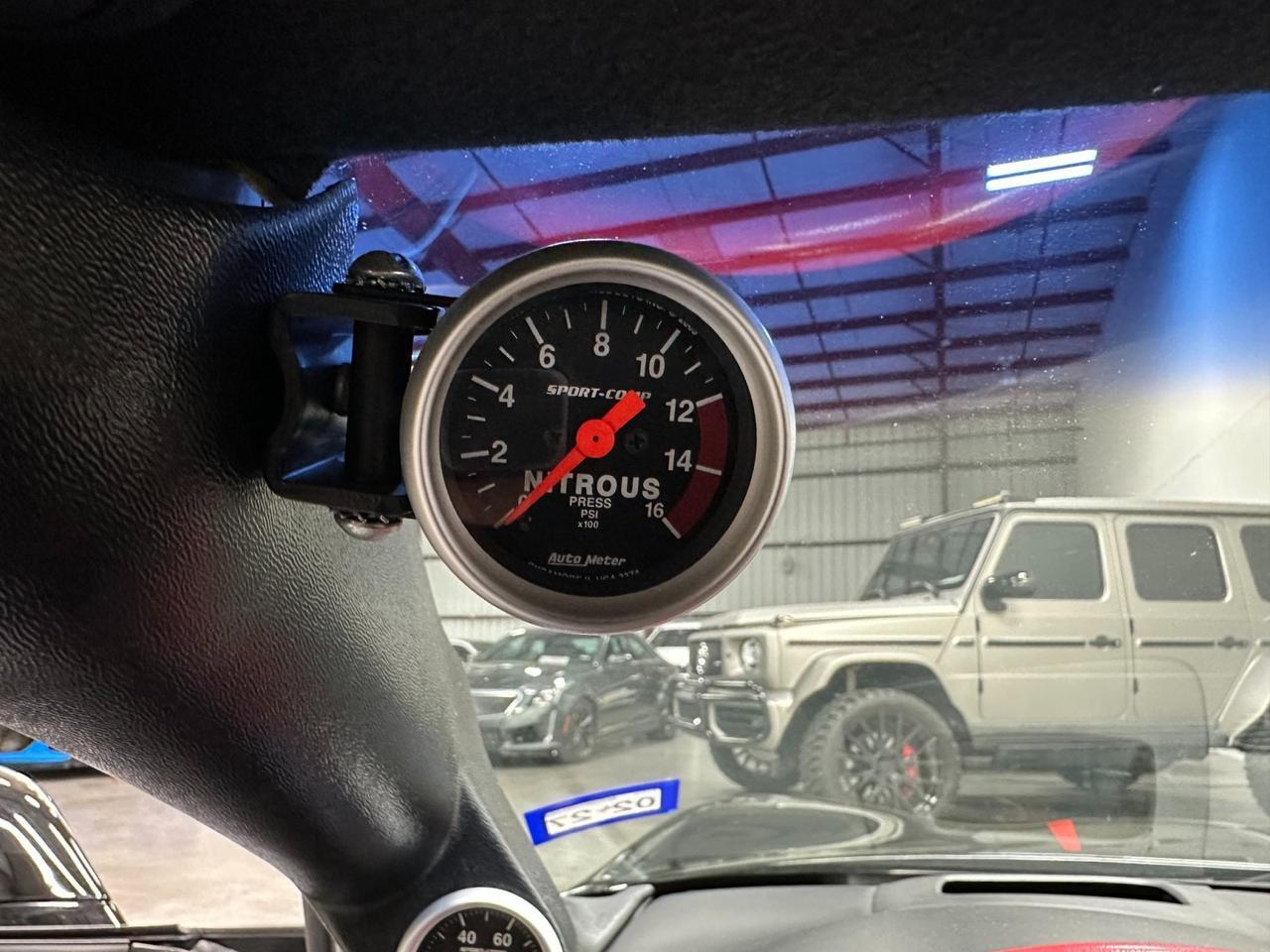

  • Power Adder:

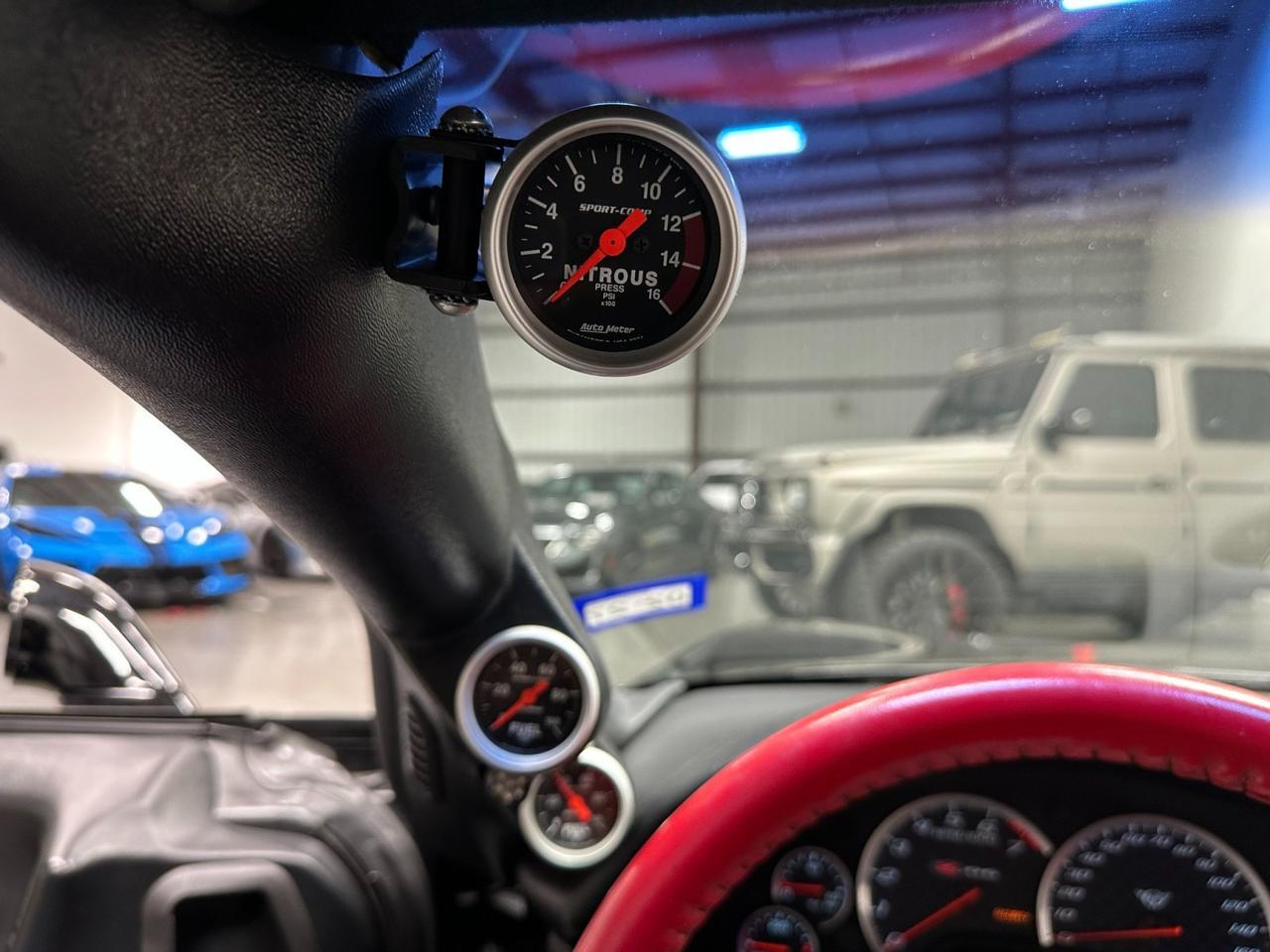

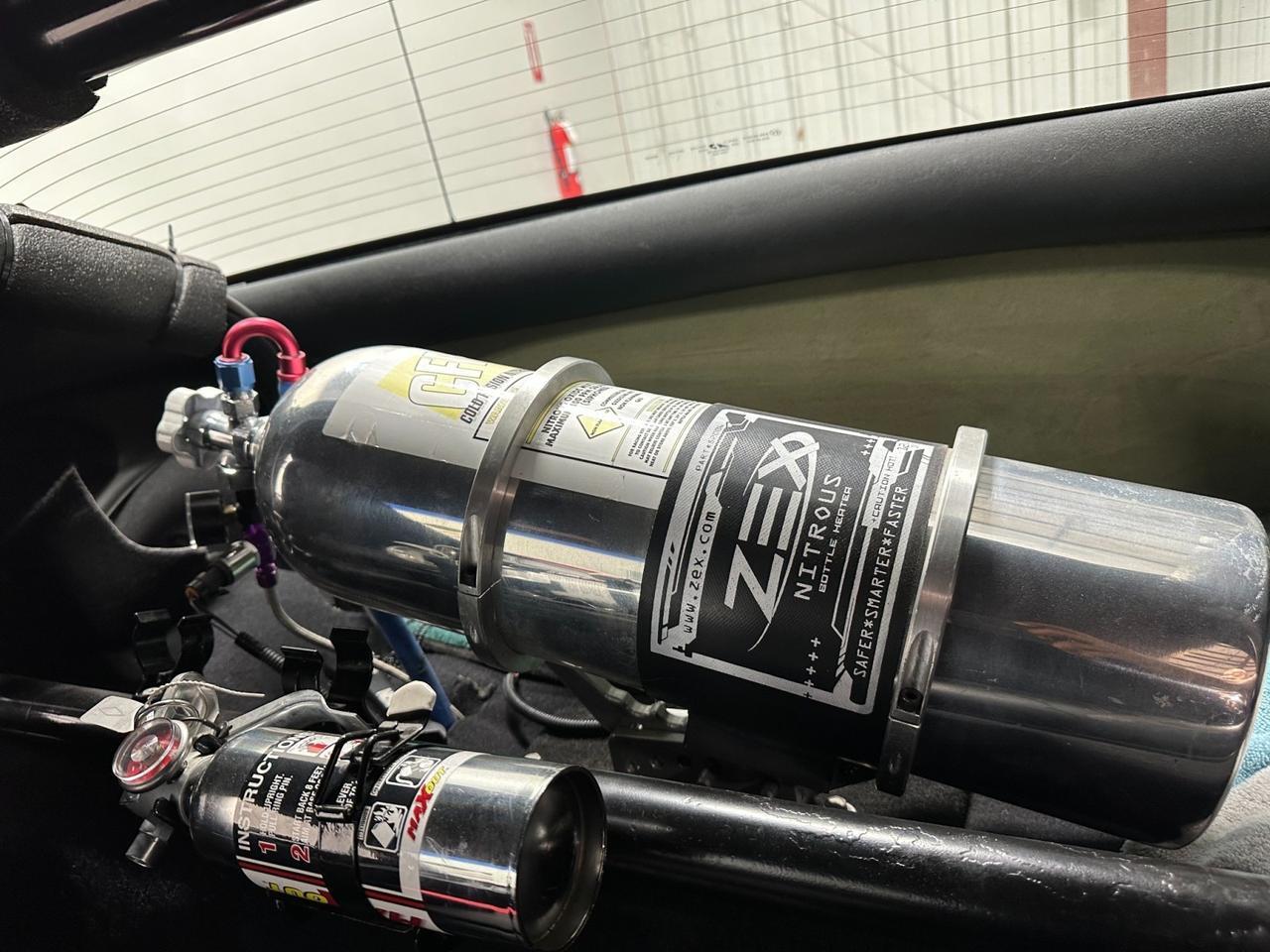

    ZEX NO2, Cold Fusion plate, dedicated fuel system, digital controller, 150 shot, 15 lb polished bottle

  • Ignition:

    Stock Z06 coil on plug, rear mounted battery, disconnect switch

  • Engine Management:

    Z06 PCM, custom tune, 424@6480 rwhp, 374@5348 rwt

  • Exhaust:

    American Racing Headers (ARH), 1 7/8”, x-pipe, cats, 2 Magnaflow mufflers, custom built Texas Quality Performance Exhaust w/electric cut-outs

  • Flywheel:

    McLeod (steel), ARP bolts

  • Clutch:

    McLeod RST (twin disc) @ 47,229 miles, SS lines, remote bleed

  • Steering:

    Z06 power rack and pinion, Turn One PS pump and pulley

  • Chassis / Body:

    Pfadt engine mounts, Elite Engineering frame guards, frame rails, driveshaft tunnel reinforcement plate; Wolfe 6-point roll cage; mini tubs, TPE flared rear quarter panels, Tiger Shark front fascia, aftermarket stereo w/sub-woofer

  • Driveshaft:

    Driveshaft Shop (HD aluminum w/polyurethane front coupling), LG Motorsports solid (aluminum) rear coupling

  • Transmission:

    RPM Stage 5 (close ratio, MM6), CAGS bypass, MGW shifter, Delron shift knob

  • Rear End:

    RPM (4:10 ratio), DTE strut brace system, Driveshaft Shop 1000 HP axles / hubs, Pfadt differential mount

  • Differential:

    Quaife Automatic Torque Biasing (ATB) Helical Limited Slip Differential (LSD)

  • Front / Rear suspension:

    Z06 short / long arm (SLA) double wishbone, aftermarket heavy duty tie rod ends (greasable), 2004 upgraded shocks

  • Steering (again):

    Turn One power steering pump and pulley

  • Front / Rear Brakes:

    Powerslot rotors, Hawk ceramic pads, braided SS lines, Hydratech Hydroboost

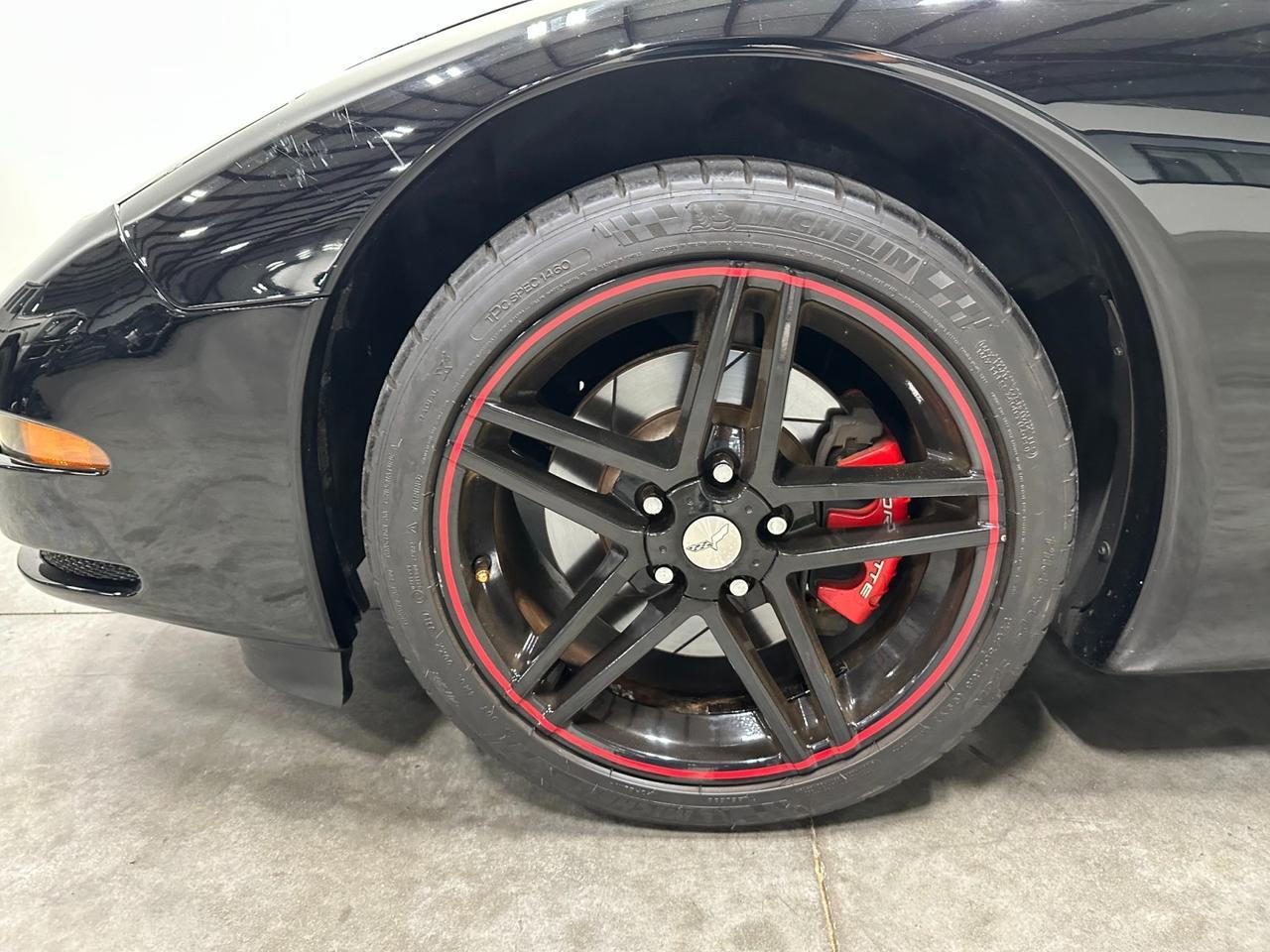

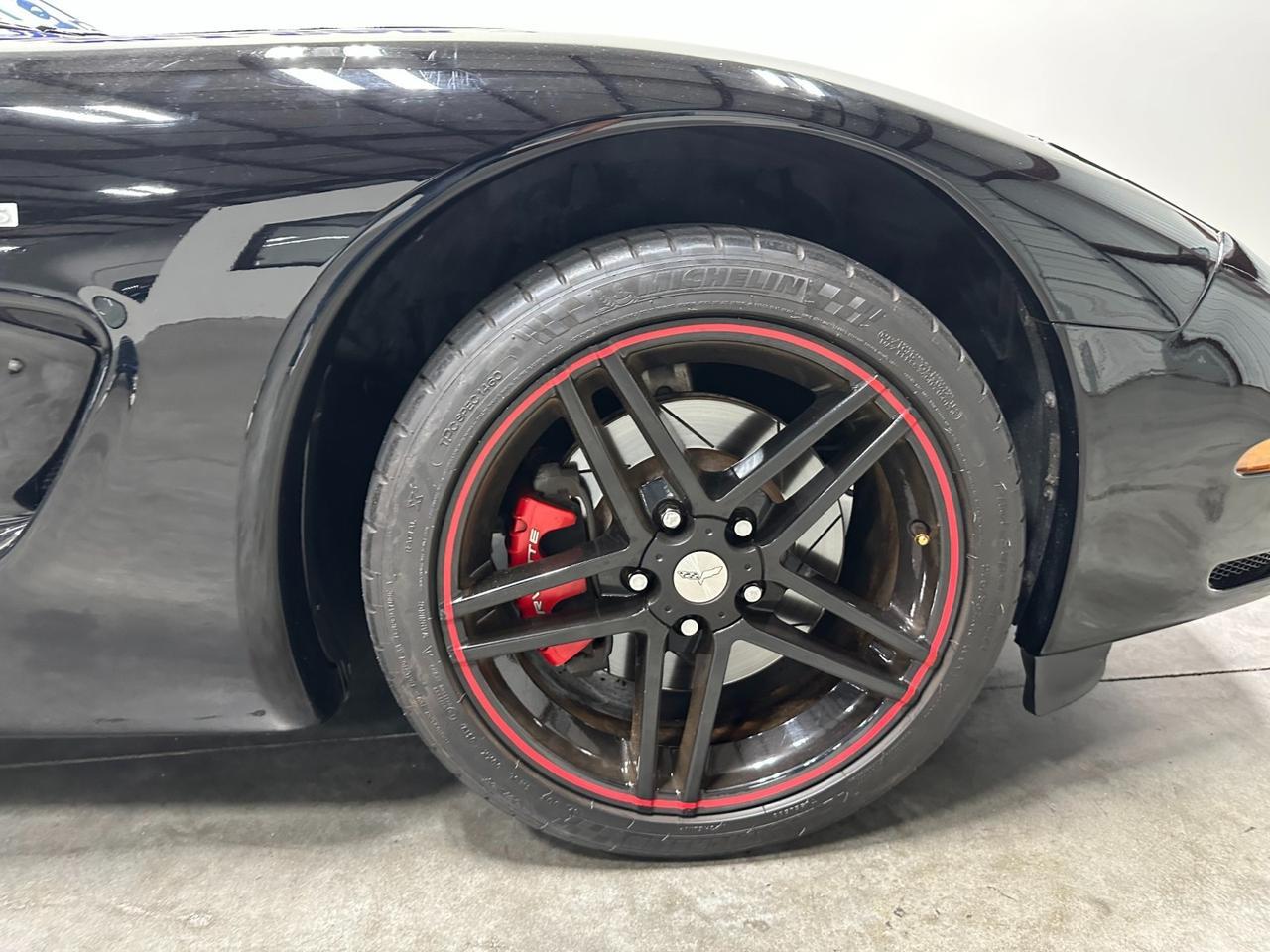

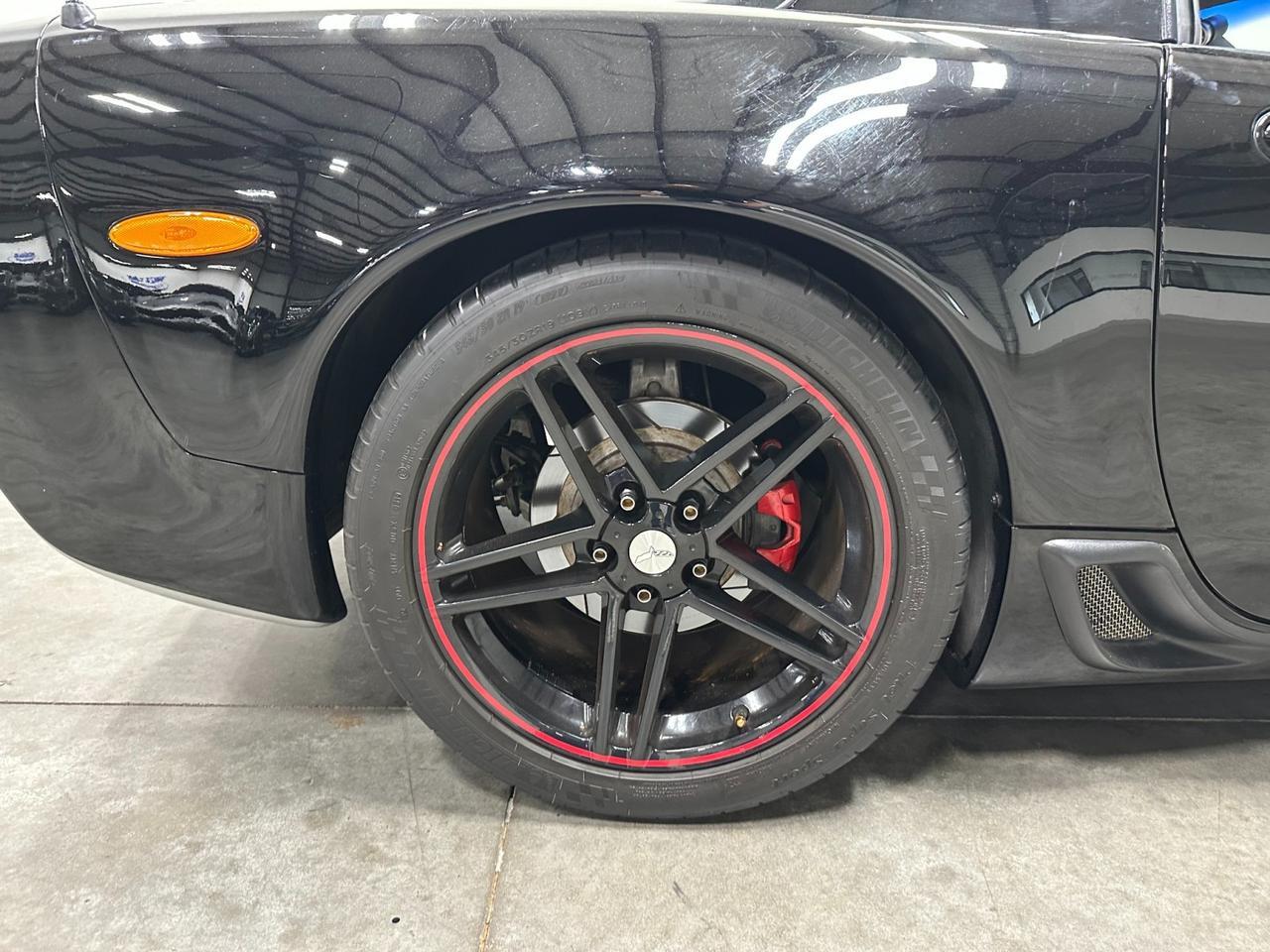

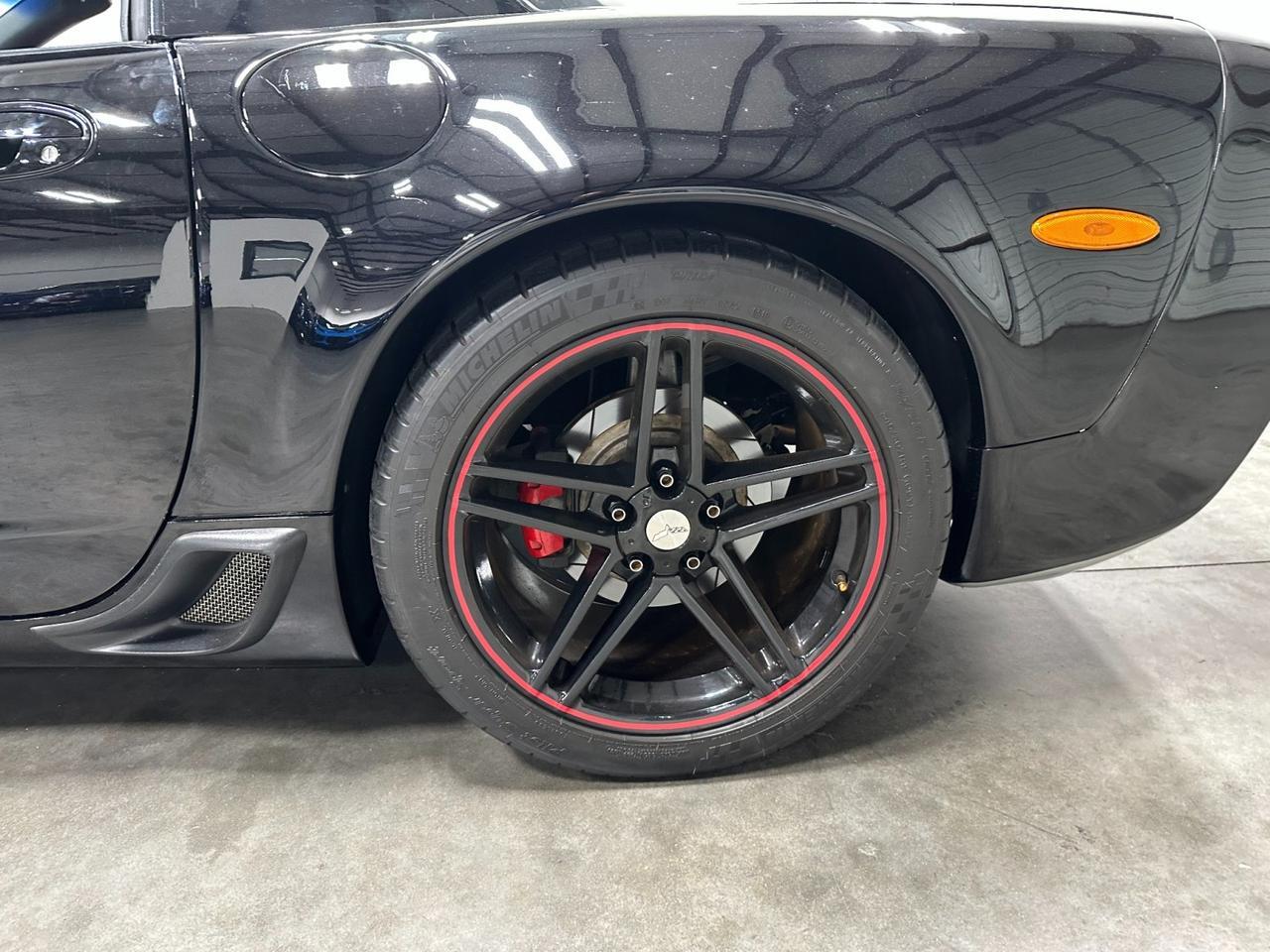

  • Wheels:

    House of Wheels, C6 Z06 (Black), 18 x 9.5 (F), 19 x 12 (R)

  • Tires:

    Michelin Pilot Super Sport, 275/40 x 18, 345/35 x 19

    • Total engine miles ≈ 36,700

      • May 2002 – June 2008: 27,400 miles

      • June 2016 – present: 9,300 miles

    • No piston ring issues, no smoke, runs strong

      • 424 rwhp @ 6,480 RPM

      • 374 rwt @ 5,350 RPM

      • +150 NO

    • Re-installed at 38,700 miles with drivetrain refreshed

    • New McLeod RST twin disc clutch + steel flywheel installed May 2024 @ 37,229 miles

    • Drivetrain parts have less mileage than odometer

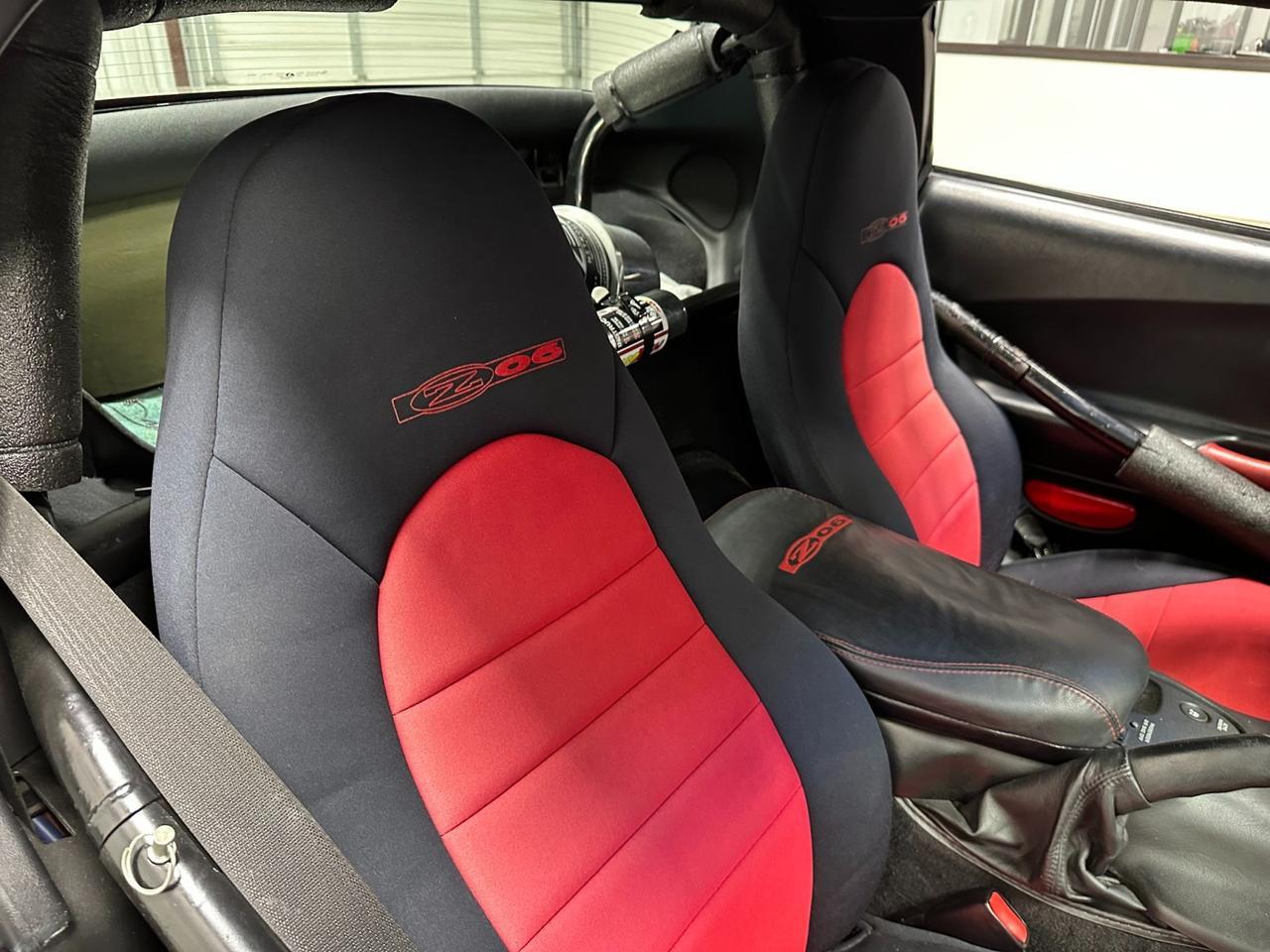

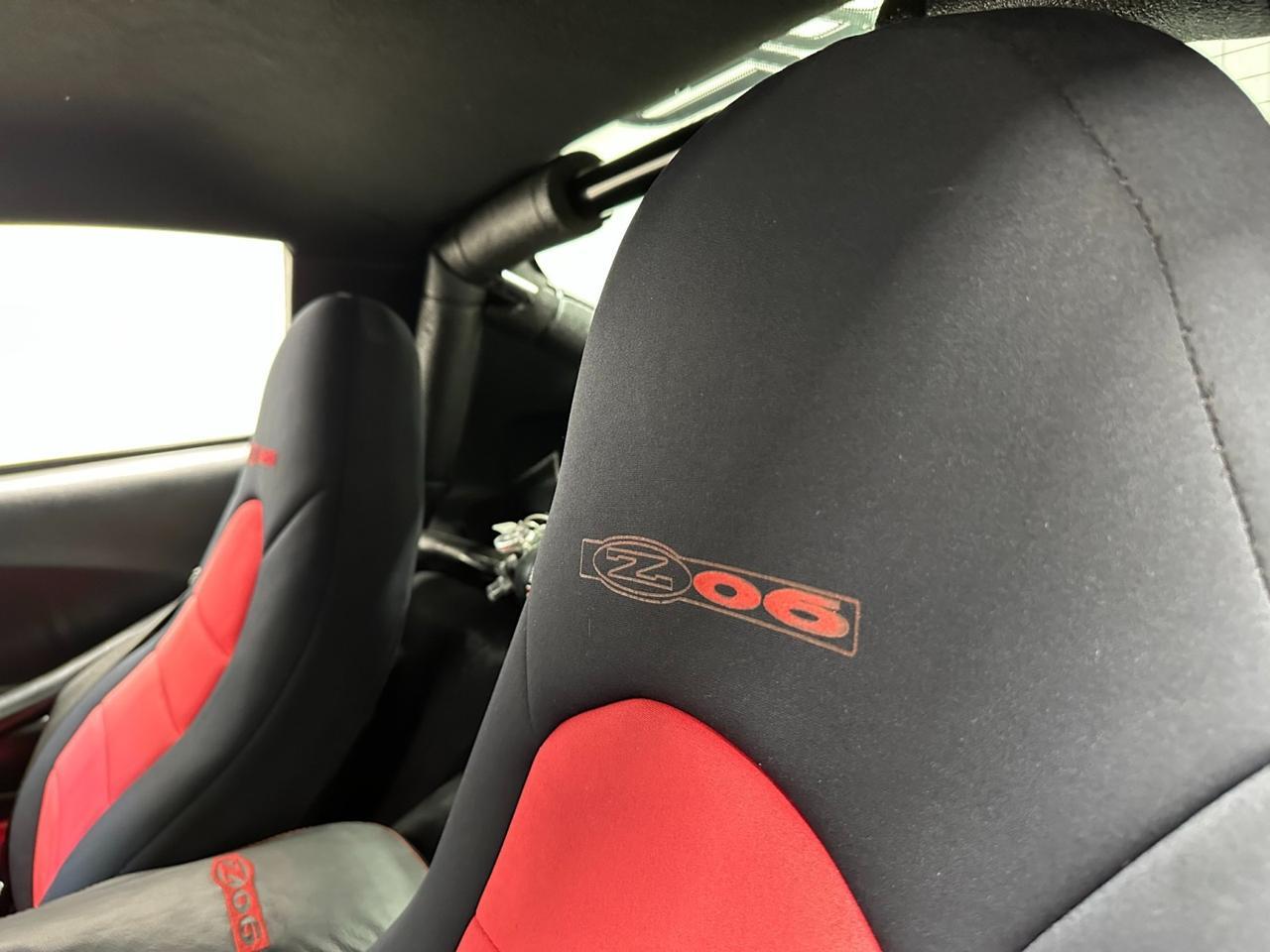

    • Original seats included (black leather w/ Wet Okole covers, black/red)

    • List below = major mods (not fully comprehensive)

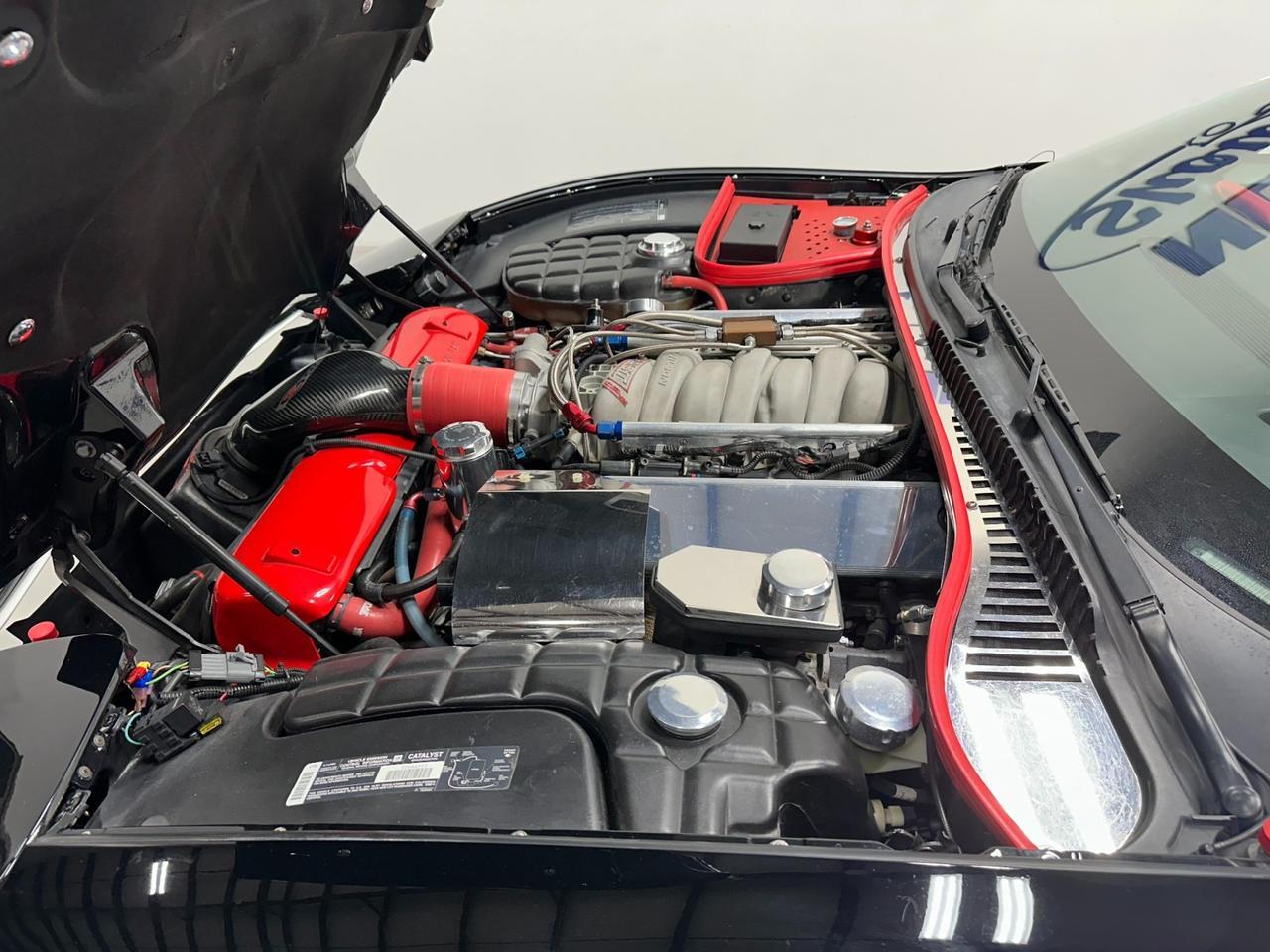

  • LS6 Engine Mods

    • Painted Radiator Cover — Mat (SHCC) — $250 — 12/25/01

    • Vortex Ram Air Intake — Breathless Air Products — $230 — 05/30/02

    • Power Intake Duct — Corvettes of Houston — $225 — 05/30/02

    • Magnetic Oil Pan Drain Plug — Mid America Designs — $5 — 07/01/02

    • Serpentine Belt Tensioner — Katech Motor Sports — $125 — 07/09/02

    • Thermostat (160) — Mid America Direct — $70 — 05/09/03

    • Engine caps (polished aluminum) — DJ Motorsports — — 06/15/06

    • PCV Oil Catch Can — Ron Davis Radiators — $145 — 06/25/07

    • Battery compartment cover — West Coast Corvettes — $90 — 07/01/07

  • Valve Train / Timing

    • COMP camshaft — COMP Cams — $325 — 09/13/07

    • COMP beehive springs — COMP Cams — $165 — 09/13/07

    • COMP valve retainers — COMP Cams — $55 — 09/13/07

    • COMP valve locks — COMP Cams — $35 — 09/13/07

    • COMP pushrods — COMP Cams — $125 — 09/13/07

    • COMP timing chain set — Buckalew Chevrolet — $175 — 09/13/07

    • Two-piece timing cover — Quick Time Performance — $420 — 09/13/07

  • Engine Accessories / Hardware

    • Underdrive pulley — Powerbond — $250 — 09/13/07

    • Flywheel bolts — ARP — $60 — 06/05/08

    • Hi-Tech checking pushrod — COMP Cams — $25 — 06/16/08

    • Throttle Body (LS2) — Scoggins-Dickey Chevrolet — $365 — 08/15/08

  • Fuel / Nitrous System (Stage 3)

      • Fuel system (Stage 3) — Nasty Performance — $1,700 — 08/15/08

      • Valve Covers (polished) — Abear Motorsports — $890 — 08/15/08

      • Fuel Injectors (42 lb/hr) — Ford SVO — $380 — 12/12/08

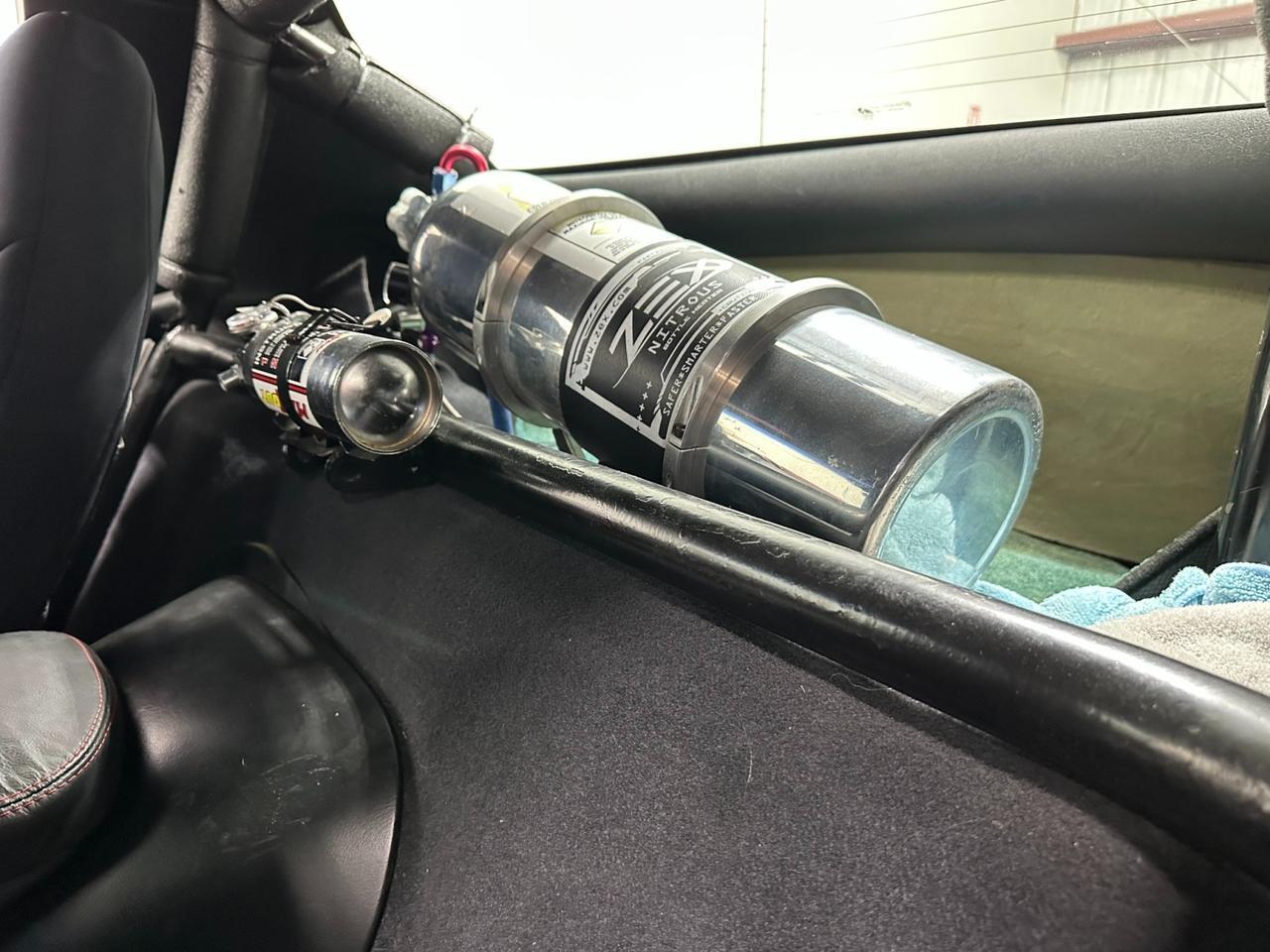

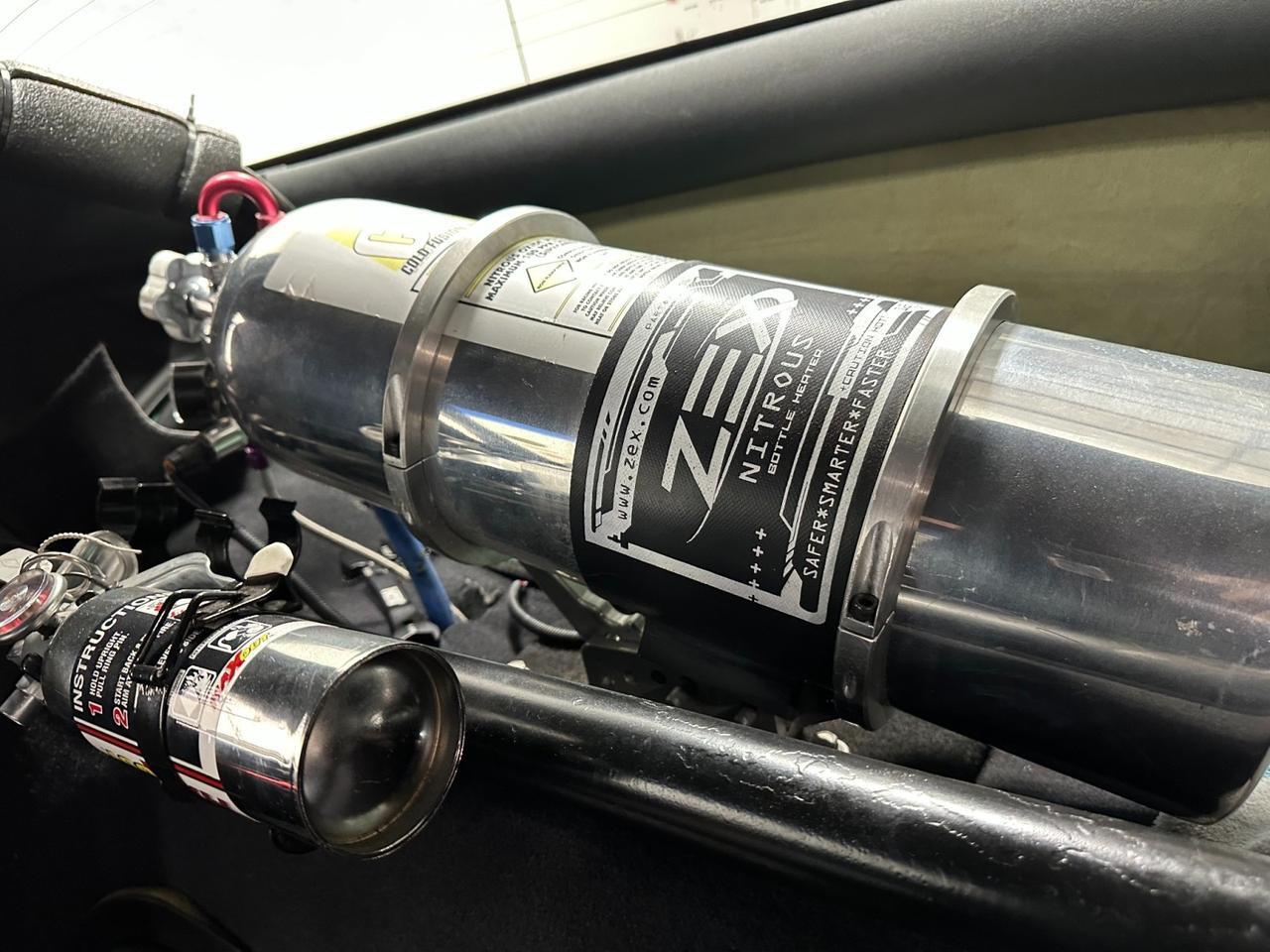

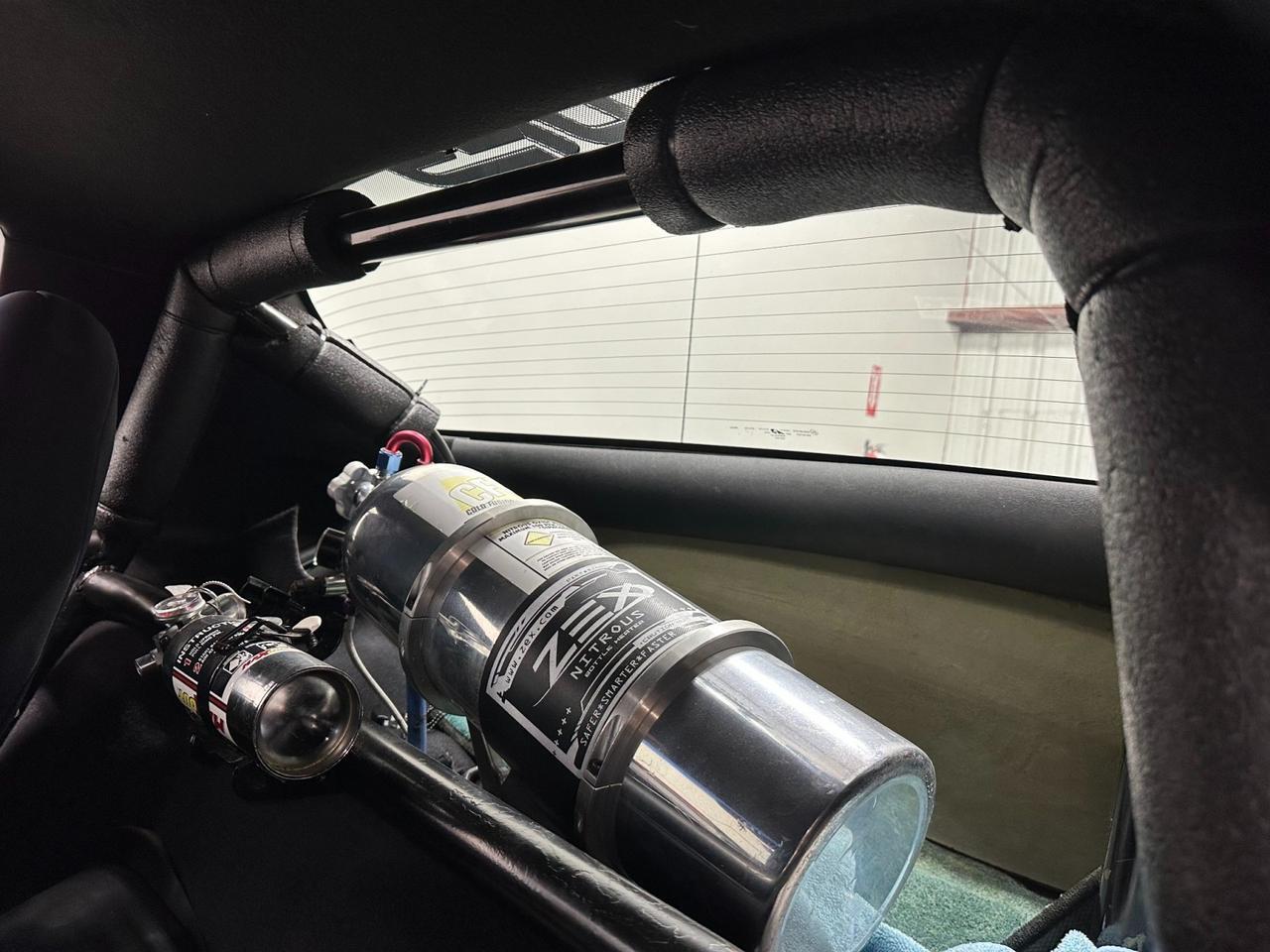

      • NO2 kit — ZEX — $630 — 12/12/08

      • NO2 Racers Tuning Kit — ZEX — $340 — 12/12/08

      • NO2 pressure regulator — ZEX — $325 — 12/12/08

      • NO2 traction control switch — ZEX — $185 — 12/12/08

    • Additional Engine / Components

      • NO2 Purge Kit — ZEX — $120 — 12/12/08

      • High performance engine mounts — Pfadt — $250 — 01/01/09

      • Long Tube Headers (1 7/8 x 3) — American Racing Headers — $1,850 — 01/01/09

      • Intake Manifold (92mm) — FAST — $880 — 01/01/09

      • Serpentine Belt — Gates — $60 — 01/02/09

      • Hydraulic Power Brake Booster — Hydratech — $695 — 02/13/09

      • Meziere electric water pump — Summit — $642 — 05/06/09

      • Engine oil cooler — WPS (Lingenfelter) — $500 — 05/15/09

      • Ported throttle body & intake manifold — VMAX Motorsports (CNC) — $545 — 08/28/09

      • QTP steel bellhousing — Boninfante — $400 — 10/27/09

      • Radiator (water, oil, PS) — Ron Davis Radiators — $984 — 02/01/10

      • Four port water vapor system — Kurt Urban Performance — $186 — 06/01/10

      • Power Steering pump — Turn One Inc. — $305 — 06/03/10

      • Twin disc clutch (Super Twin) — SPEC — $1,301 — 06/13/11

      • Alternator Cover — Mid America Motor Works — $80 — 06/12/12

      • Rocker arm trunnion upgrade — COMP — $200 — 06/2016

    • Drivetrain

      • CAGS Shift Bypass — Corvettes of Houston — $18 — 05/30/02

      • Driveshaft coupling (rear, solid aluminum) — LG Motorsports — $130 — 04/29/08

      • Delron shift knob (tall) — LG Motorsports — $66 — 06/04/08

      • Hydraulic throwout bearing — GM — $195 — 06/17/08

      • Clutch bleeding system — WPS — $45 — 06/17/08

      • Transmission (6-speed manual) — RPM (Stage 5 MM6) — $2,645 — 06/17/08

      • Rear differential (4.10 ratio) — RPM — $2,195 — 06/17/08

      • Quaife differential upgrade — RPM — $1,250 — 06/17/08

      • Transaxle support — DTE Performance — $349 — 06/17/08

      • Transmission brace — Pfadt — $340 — 01/01/09

      • Heavy duty aluminum driveshaft — Driveshaft Shop — $850 — 02/05/10

      • Driveshaft coupling (polyurethane) — Driveshaft Shop — $190 — 02/05/10

      • 1000HP rear axle / hub kit — Driveshaft Shop — $2,361 — 03/03/10

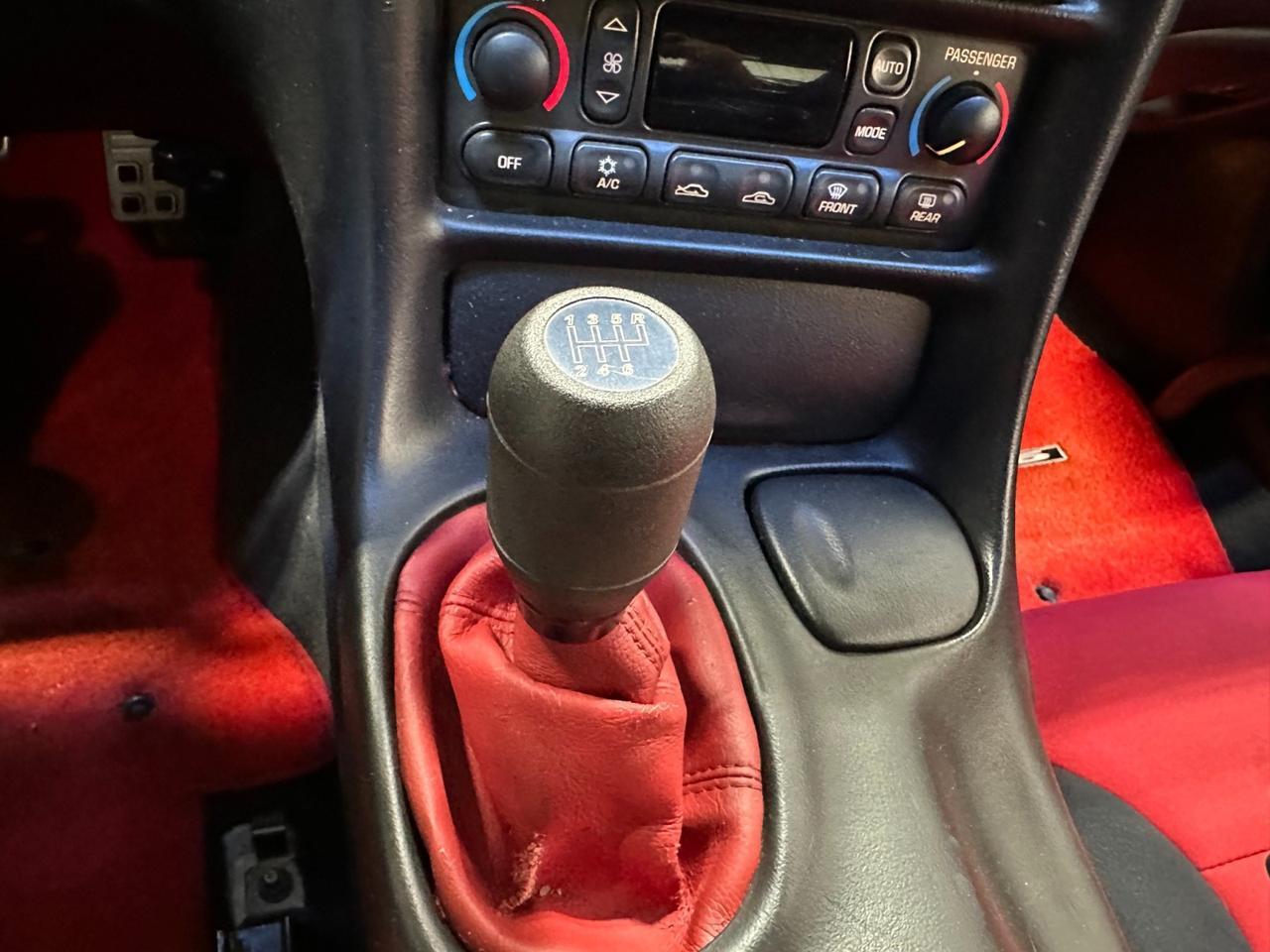

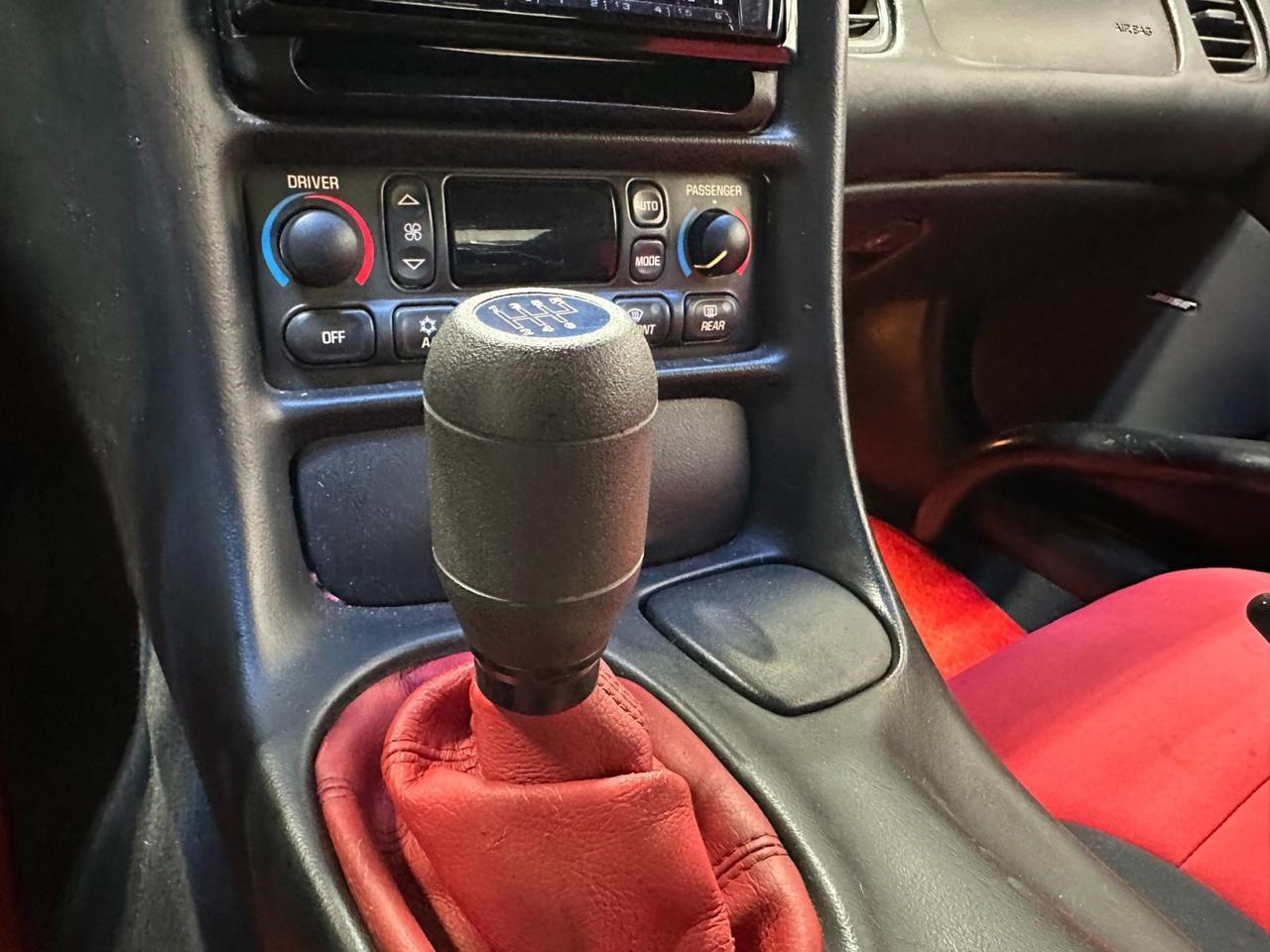

      • MGW shifter + knob — MGW — $415 — 03/15/24

      • Twin disc clutch — McLeod RST — $1,310 — 06/25/24

      • Clutch install (parts & labor, includes input shaft, release bearing, misc, dyno tune) — PowerFab Autosports — $4,000 (noted ~$5,155 with extras) — 06/25/24

    • Chassis / Suspension

      • Speed Bleeders — Corvette Central — $14 — 06/13/02

      • SS Brake Hose — Corvette Central — $120 — 06/20/02

      • Heavy Duty Tie Rod Ends (2) — Corvette Central — $80 — 08/02/02

      • Battery Disconnect Switch — Mid America Direct — $18 — 11/06/02

      • Tunnel Reinforcement Plate (Alum., Red) — Elite Engineering — $195 — 06/07/06

      • Radiator Screen (Black Powder Coated) — Elite Engineering — $98 — 06/07/06

      • Frame rails — Elite Engineering — $149 — 07/01/07

      • Frame Guards — Elite Engineering — $50 — 07/01/07

      • Brake rotors (4) — Powerslot — $590 — 06/17/08

      • Brake pads (ceramic) — Hawk — $225 — 06/17/08

      • Wheels (C6 Z06 Black, 2-18×9.5, 2-19×12) — House of Wheels — $935 — 12/14/09

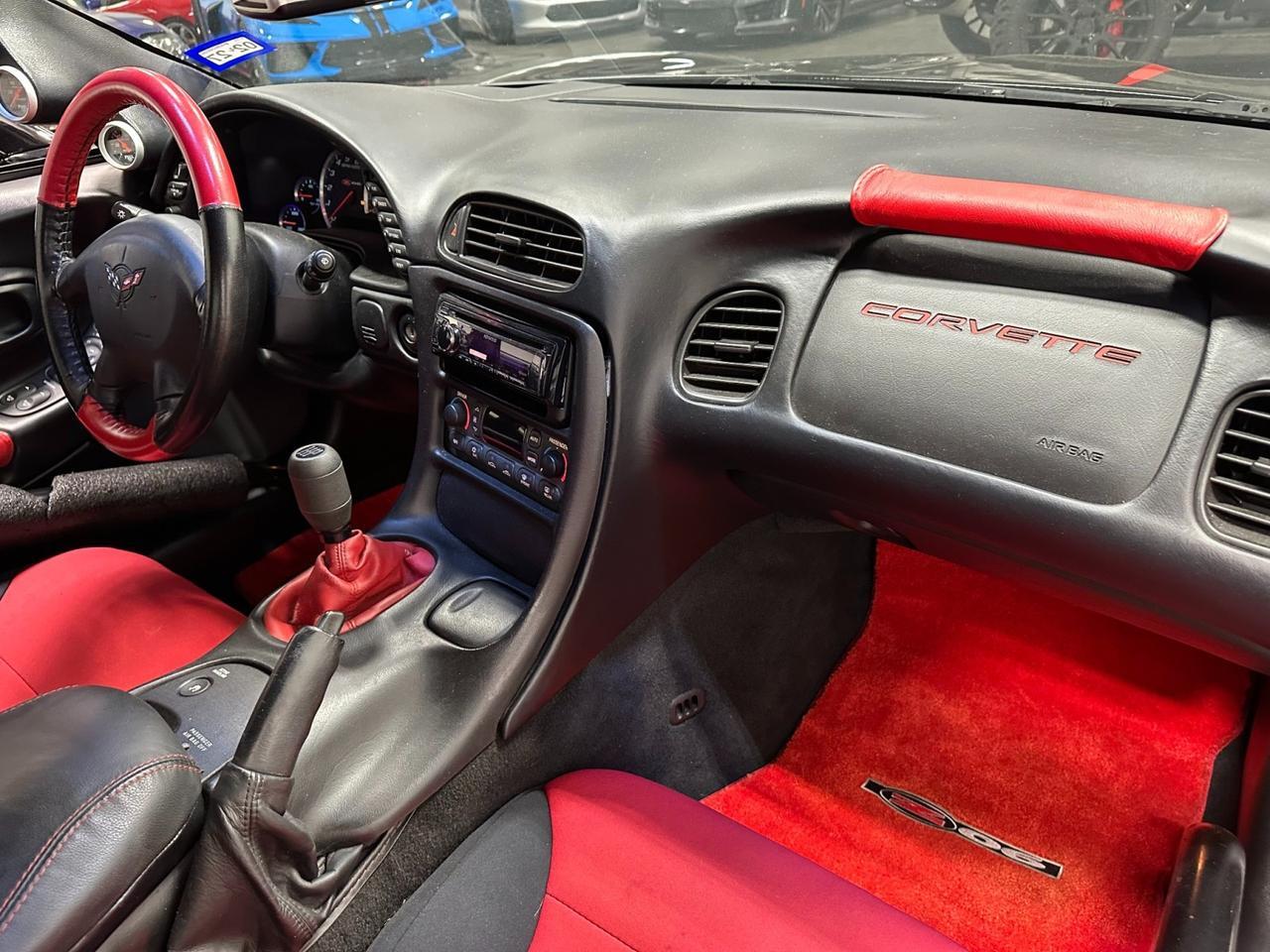

      • Body / Interior

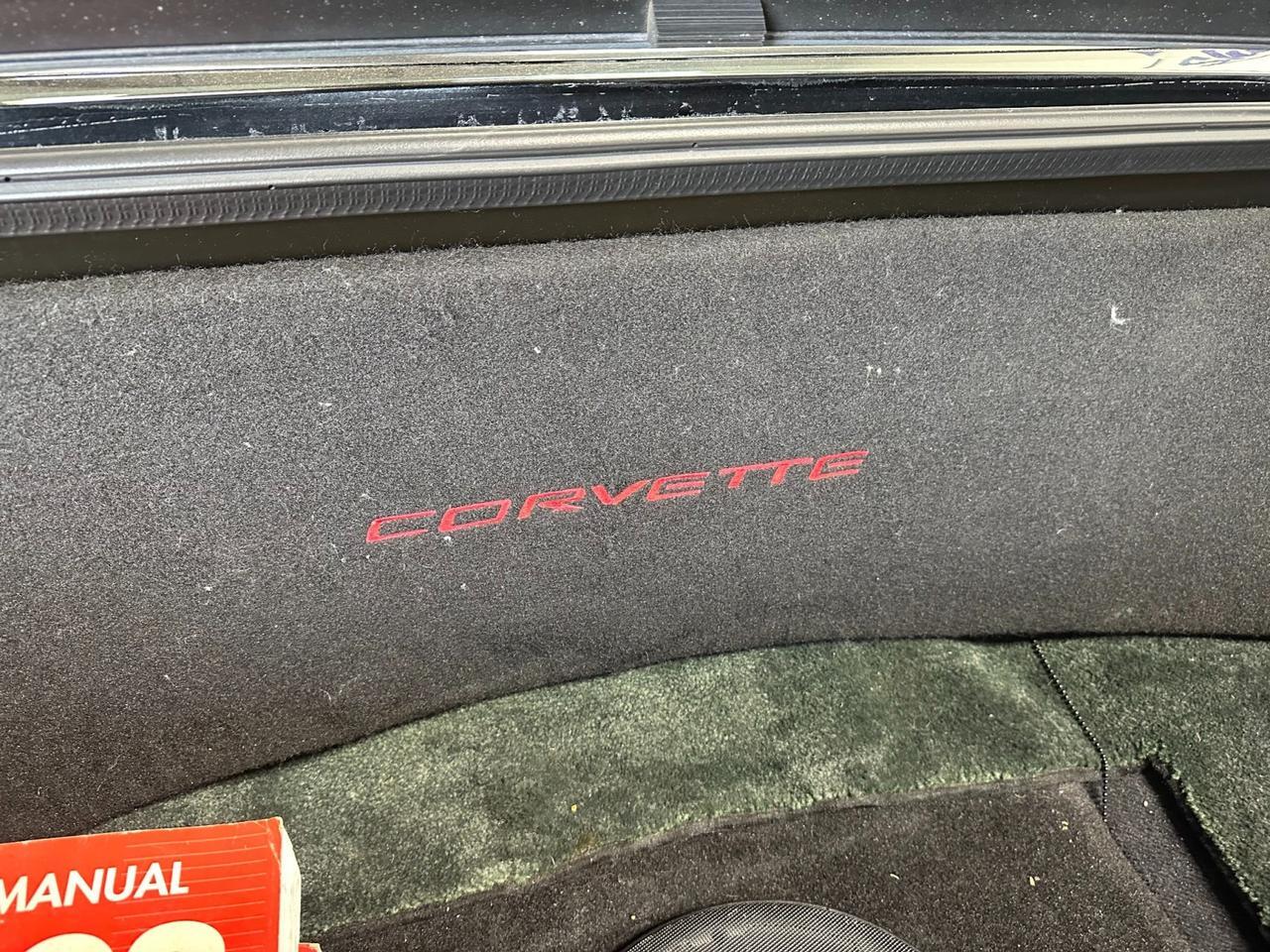

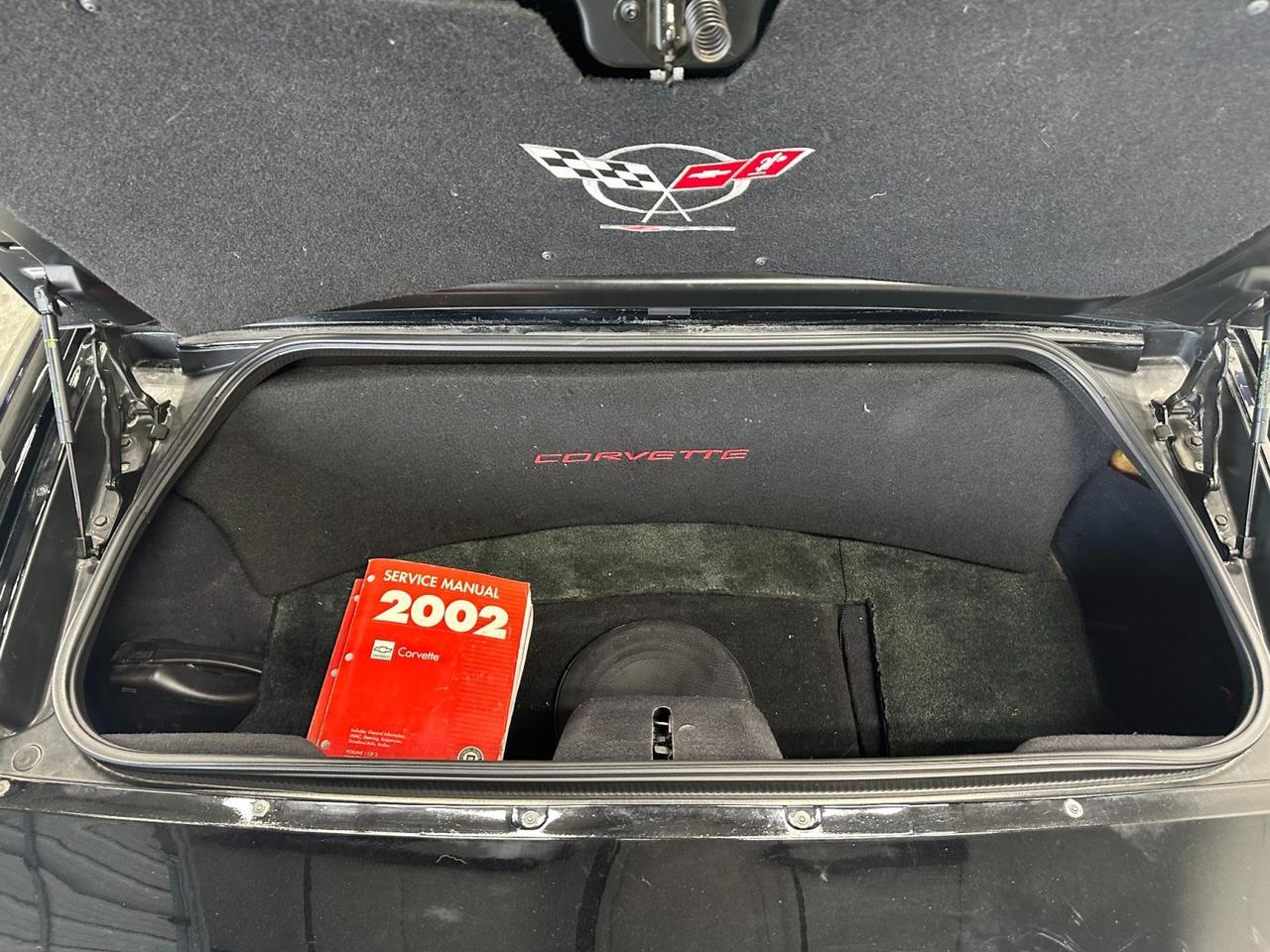

        • Trunk Lid Liner — Corvettes of Houston — $80 — 05/30/02

        • Glove Box Cover — Corvettes of Houston — $100 — 05/30/02

        • Floor Mats — Corvettes of Houston — $89 — 05/30/02

        • Cargo Mat — Corvettes of Houston — $99 — 05/30/02

        • Underhood Display Insert — Corvette Central — $33 — 06/07/02

        • Custom Lower Door Seals — Corvette Central — $21 — 06/13/02

        • Gas Guard — Corvette Central — $6 — 06/13/02

        • NOAH Car Cover — Corvette Central — $140 — 06/19/02

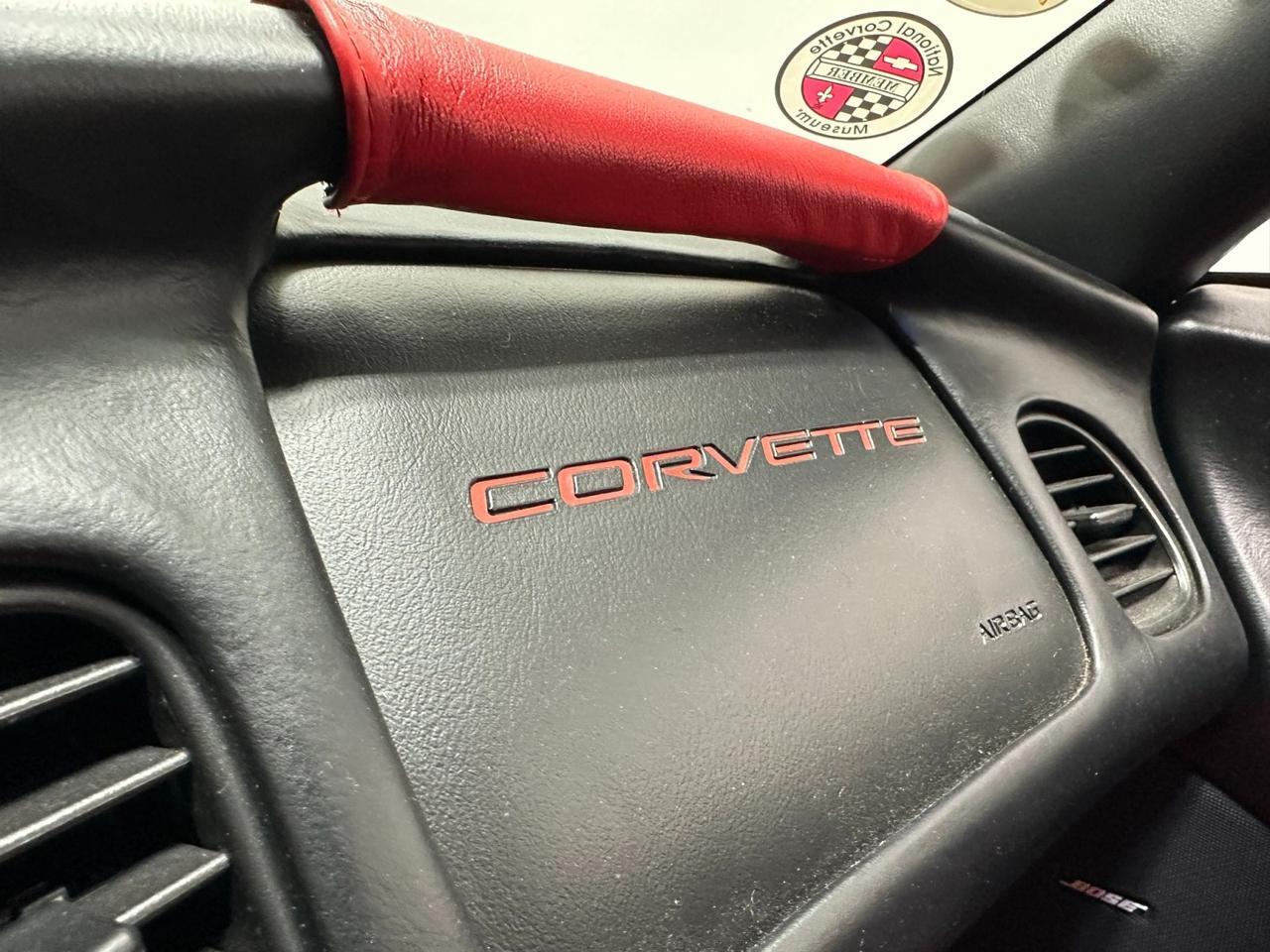

        • Red RH SD Airbag Letters — Corvette Central — $17 — 06/24/02

        • Steering Wheel Emblem Decal — Corvette Central — $18 — 06/24/02

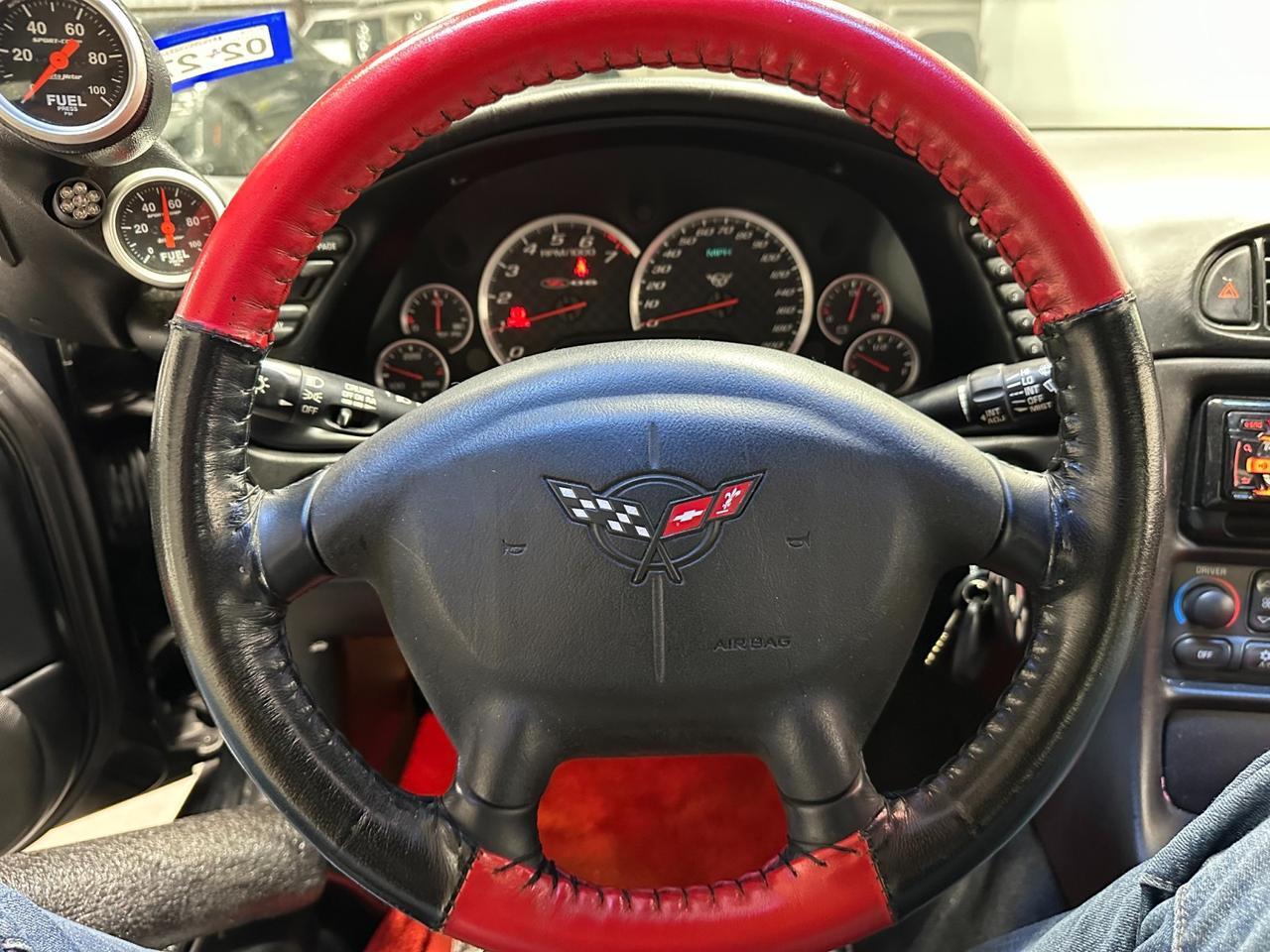

        • Steering Wheel Wheelskin — Mid America Designs — $35 — 08/02/02

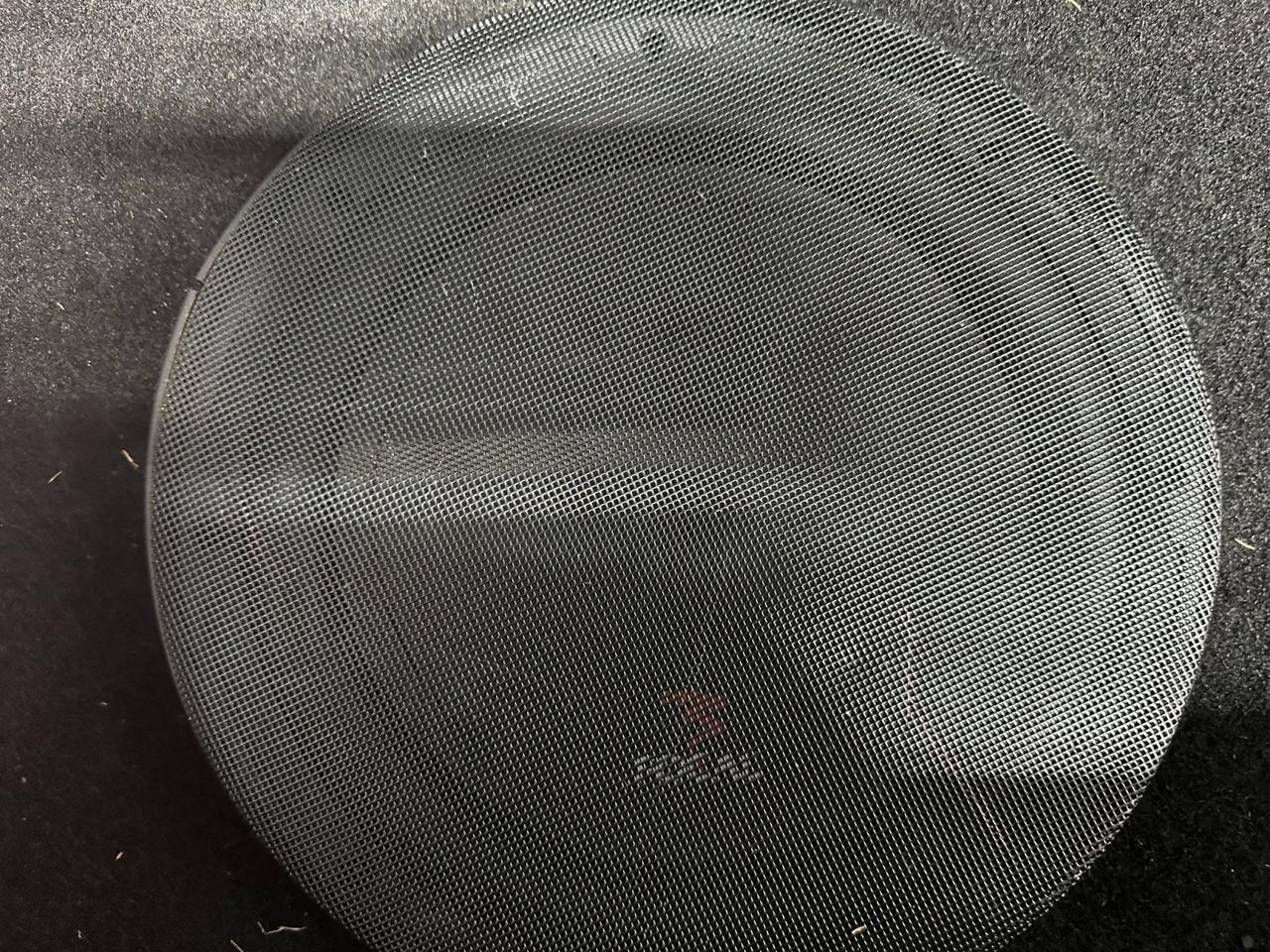

        • JL Audio amplifier (250W) / 10” sub — Car Toys — $803 — 08/02/02

        • Radar Detector Bracket — Corvette Central — $16 — 08/12/02

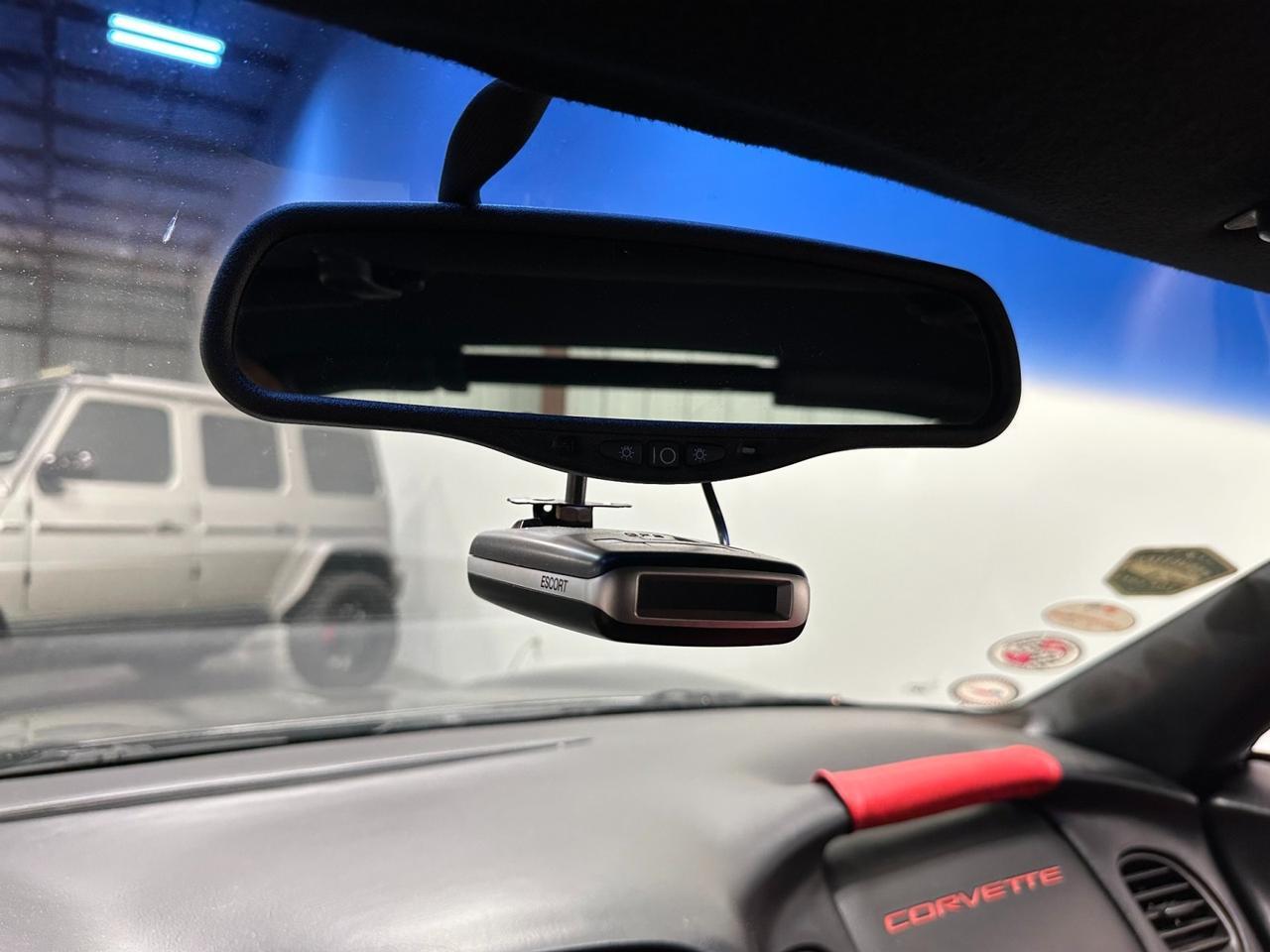

        • Radar Detector (Escort 8500) — Car Toys — $270 — 08/15/02

        • Aluminum Dead Pedal — Corvettes of Houston — $53 — 10/10/02

        • Aluminum Gas Pedal — Corvettes of Houston — $58 — 10/10/02

        • Rear Side Marker Lamp Lens (Amber, 2) — Mid America Direct — $26 — 11/06/02

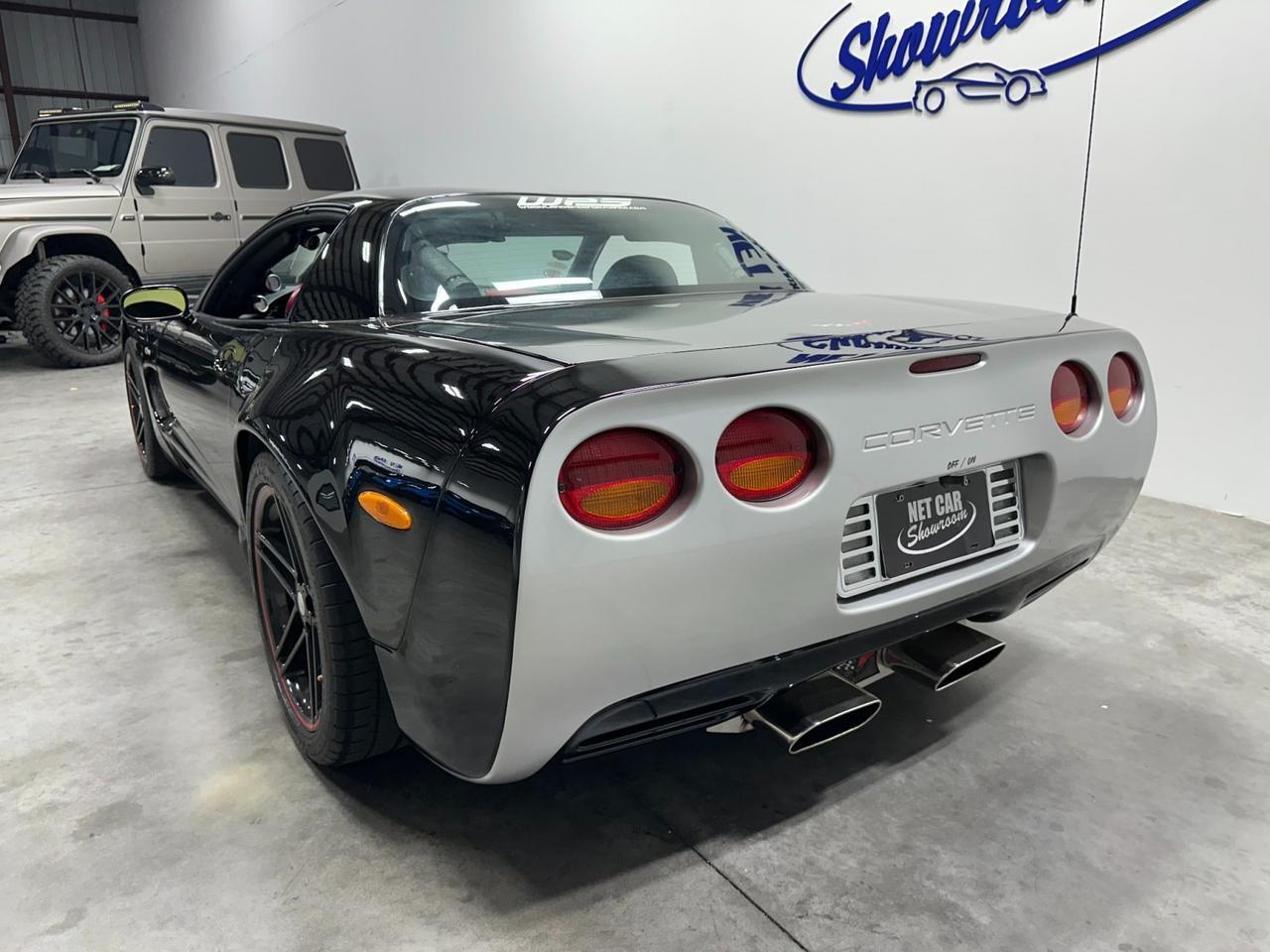

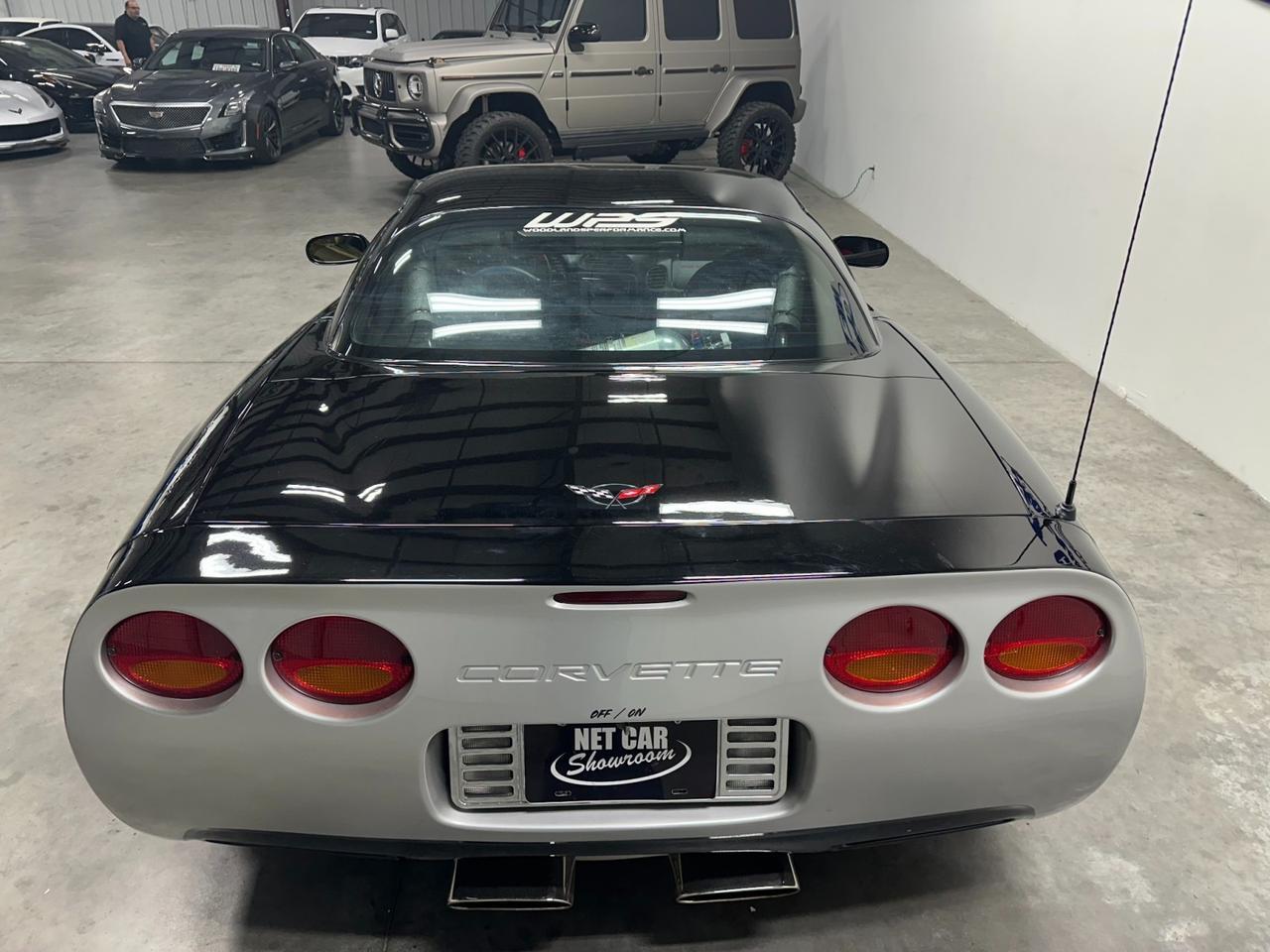

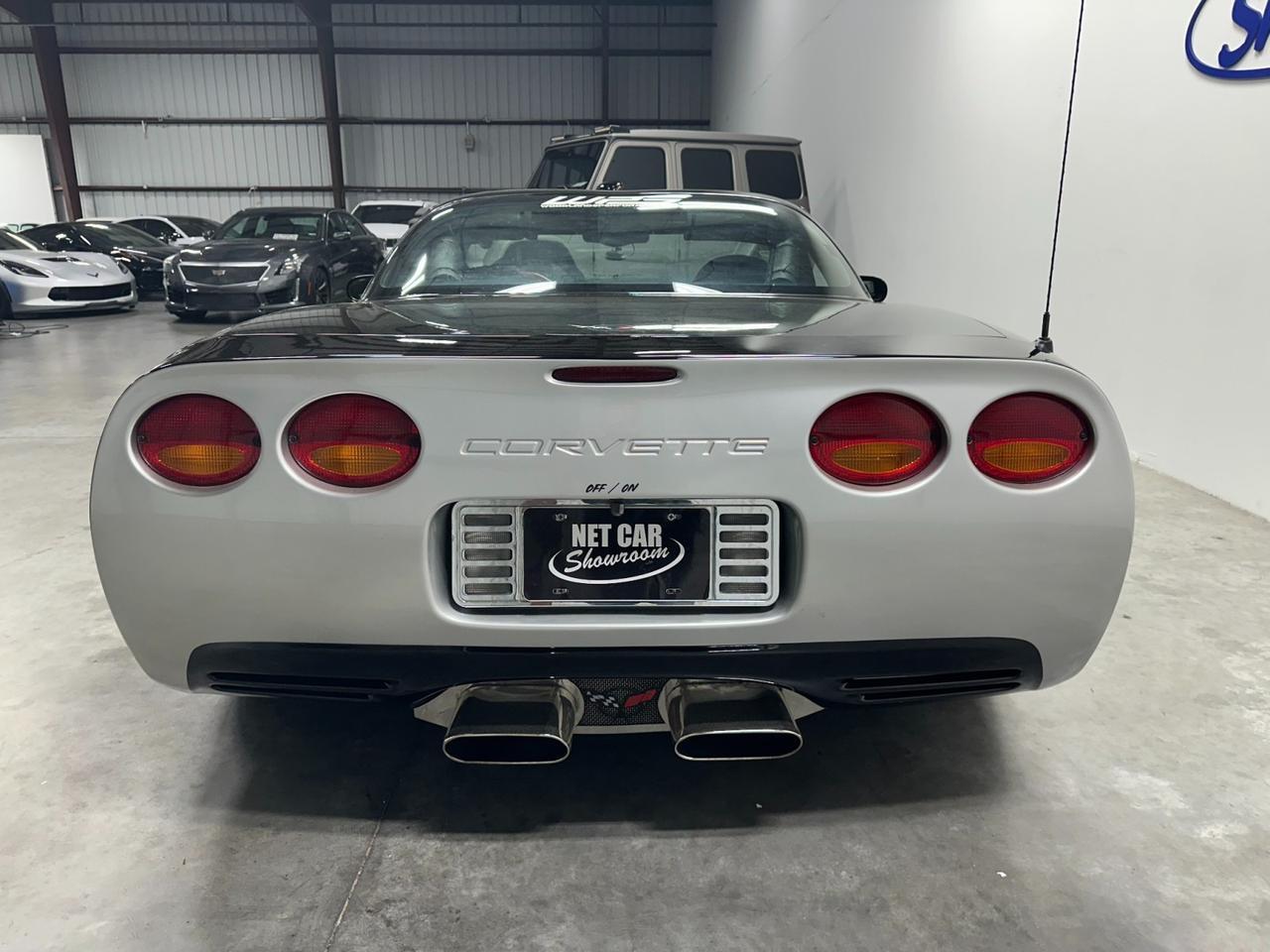

        • European Tail Light Conversion — Corvettes of Houston — $59 — 11/23/02

        • European Tail Lights (amber, 2 each) — Corvettes of Houston — $100 — 11/23/02

        • European Tail Lights (amber, 2 each) — Corvettes of Houston — $110 — 11/23/02

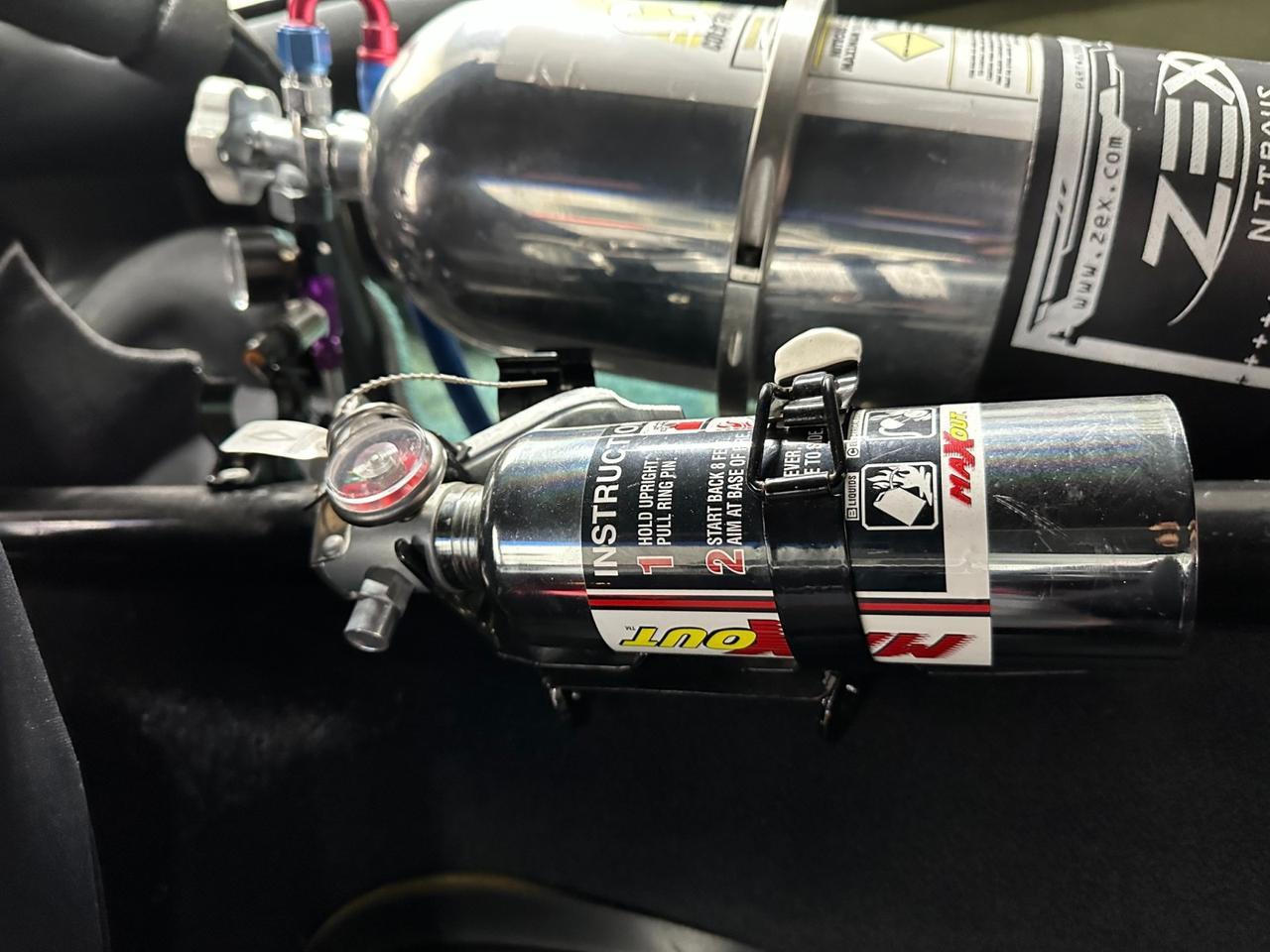

        • Fire Extinguisher Bracket — OG Racing — — 03/28/03

        • Fire Extinguisher — OG Racing — — 03/28/03

      • Exterior / Interior Mods

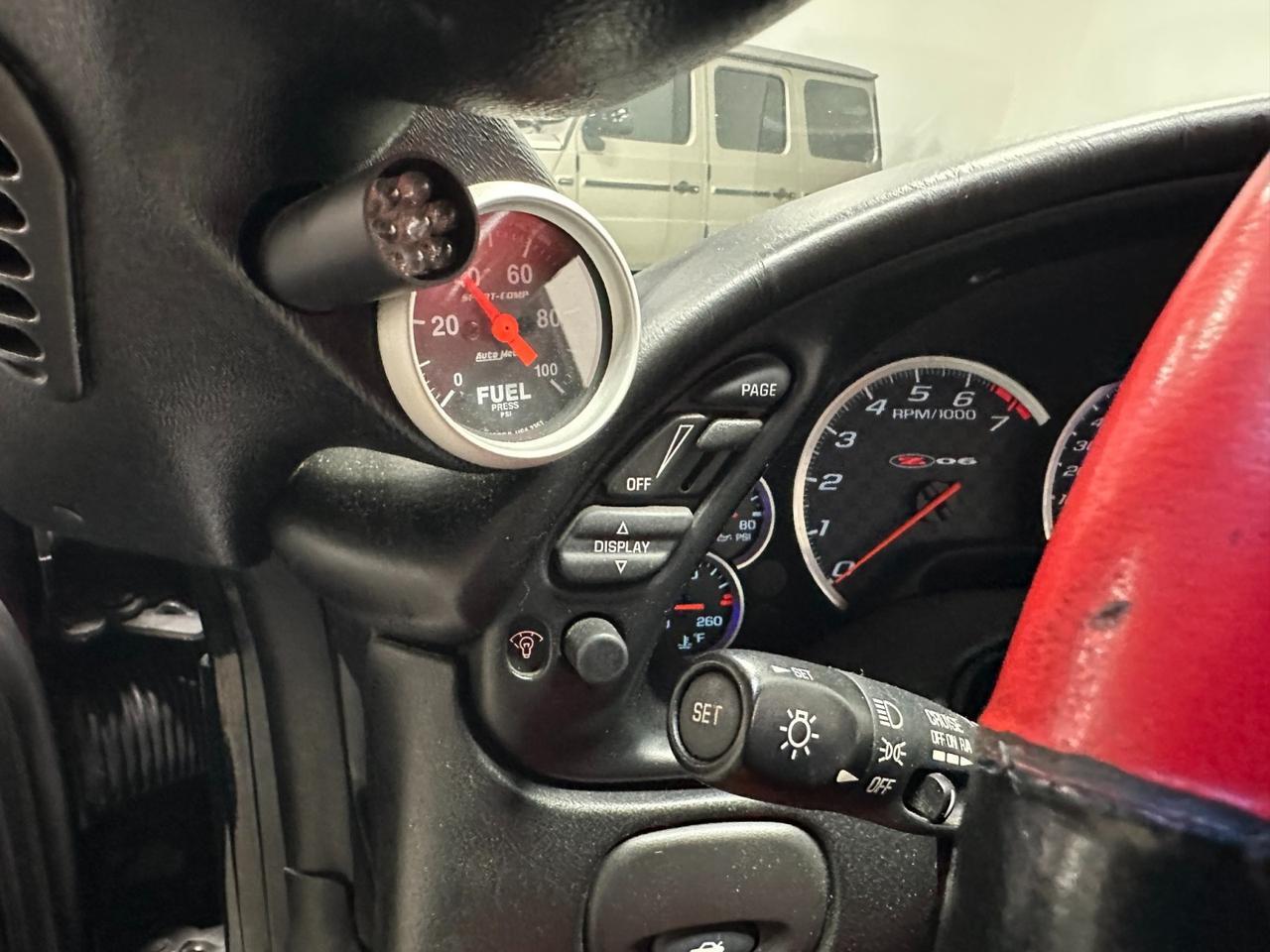

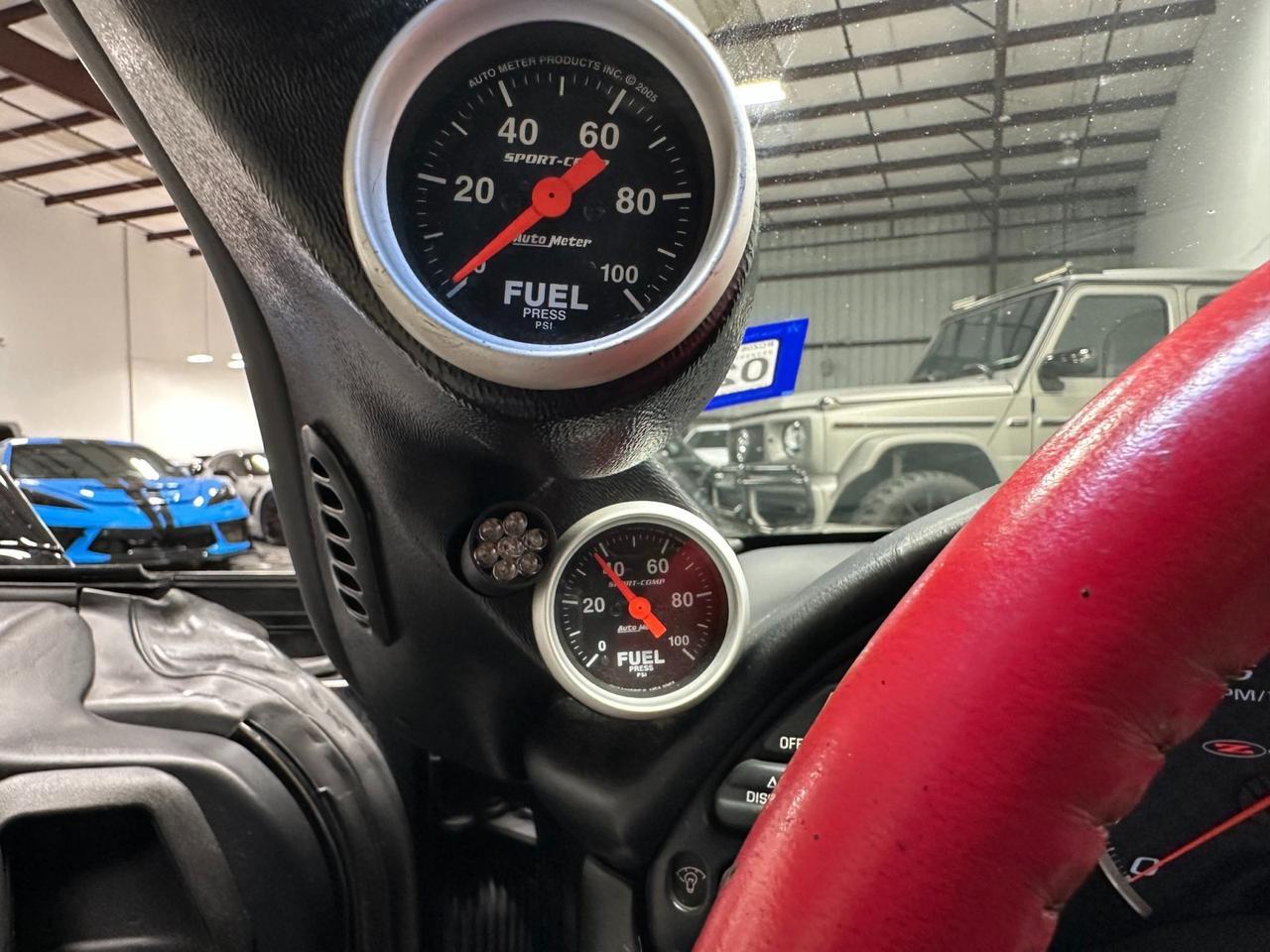

        • Gauge Bezels — Davis Jones — — 03/25/06

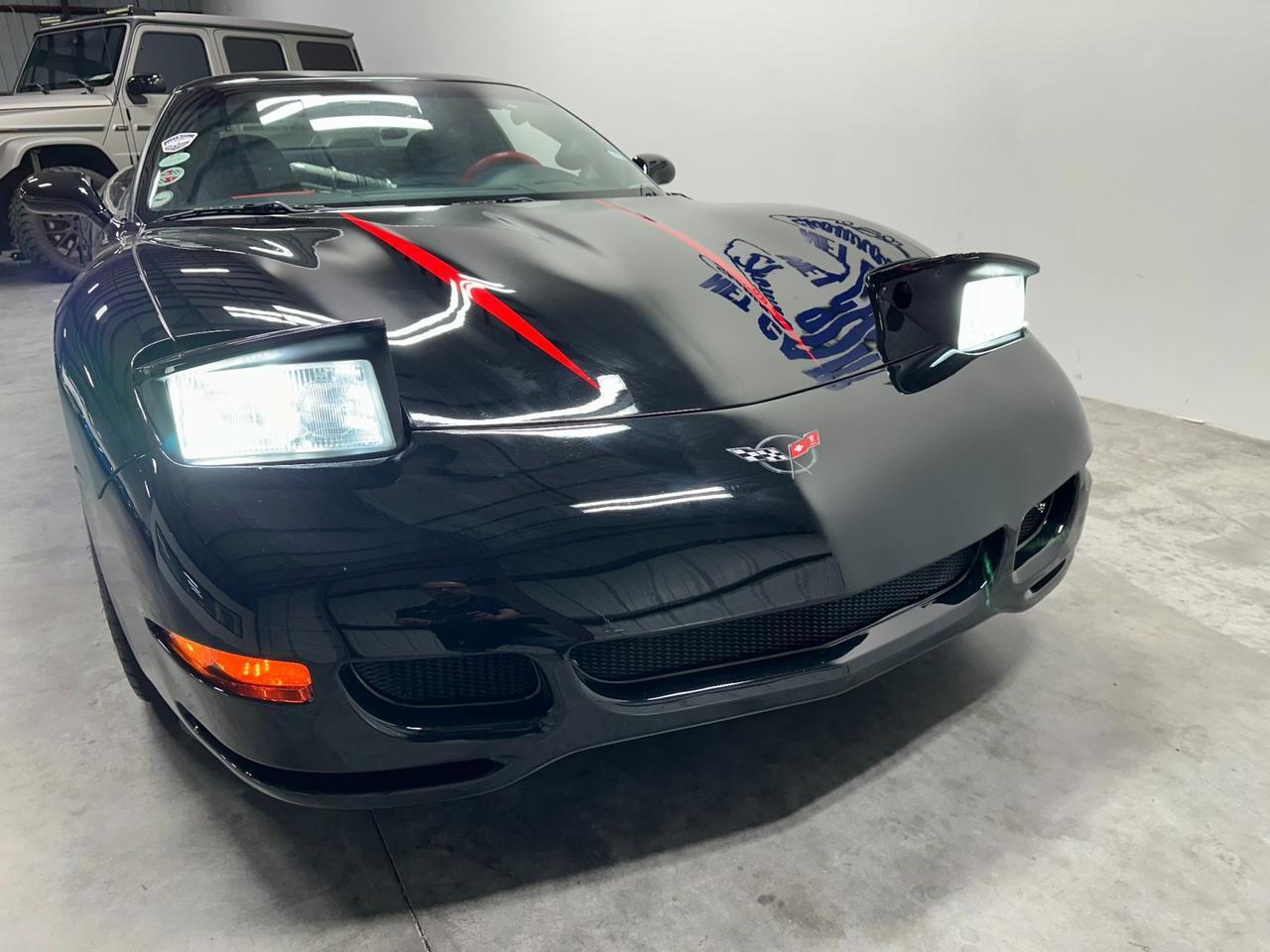

        • HID headlight conversion (HI / LO beams) — DJ Motorsports — $80 — 06/15/06

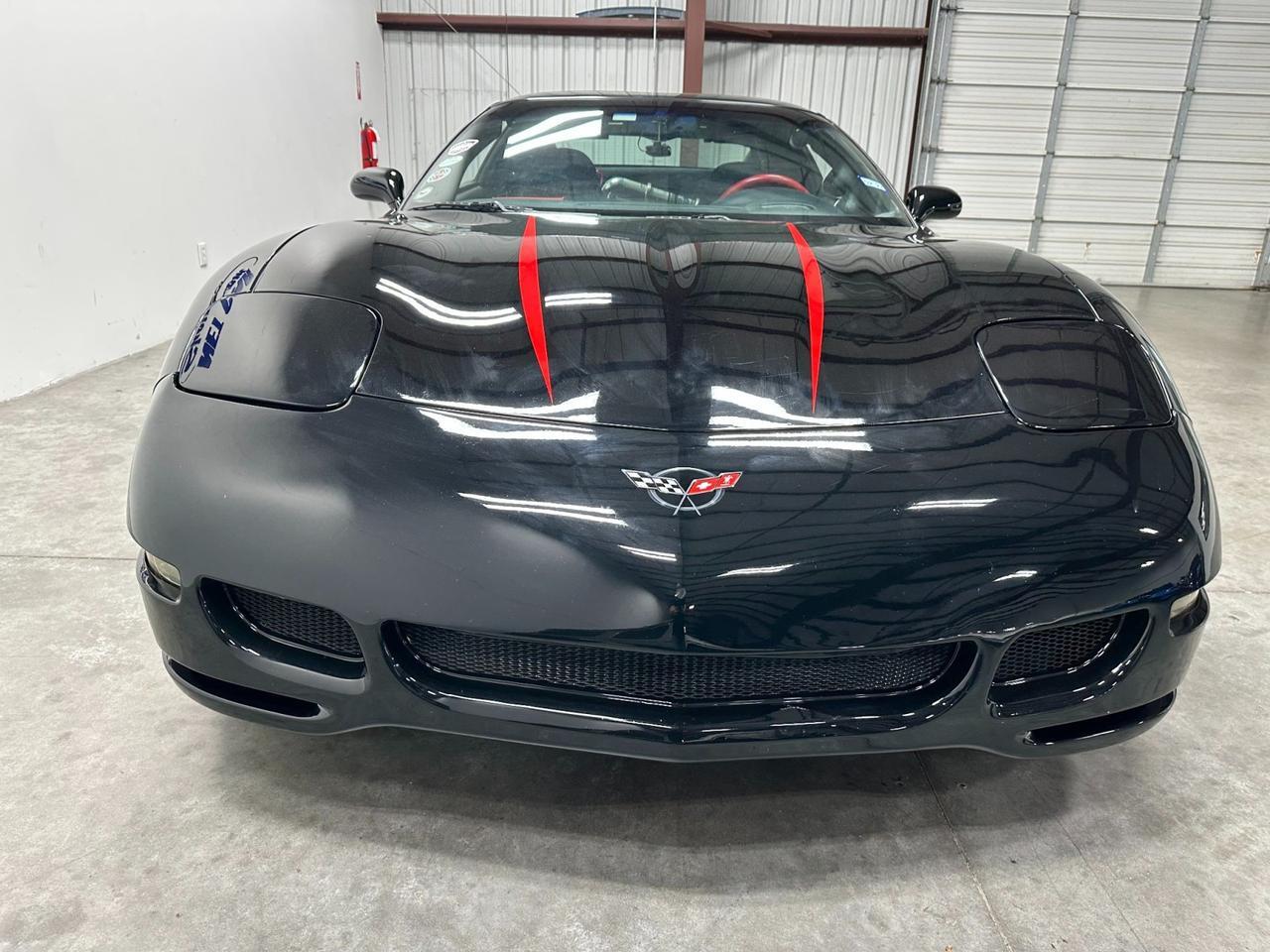

        • Tiger Shark front fascia — Starcraft — $805 — 03/05/09

        • Racing seat belts — Wolfe Racing — $552 — 05/12/09

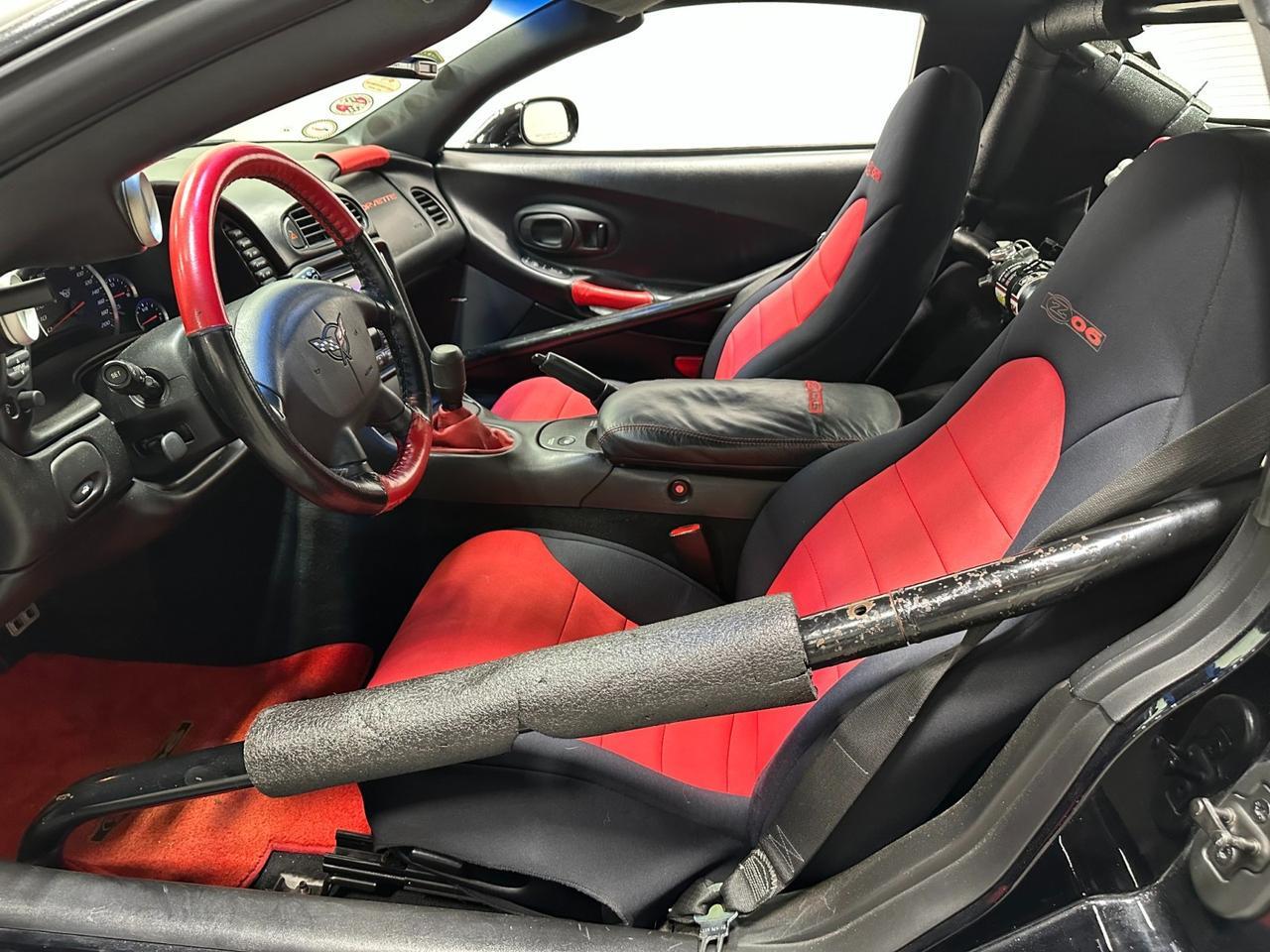

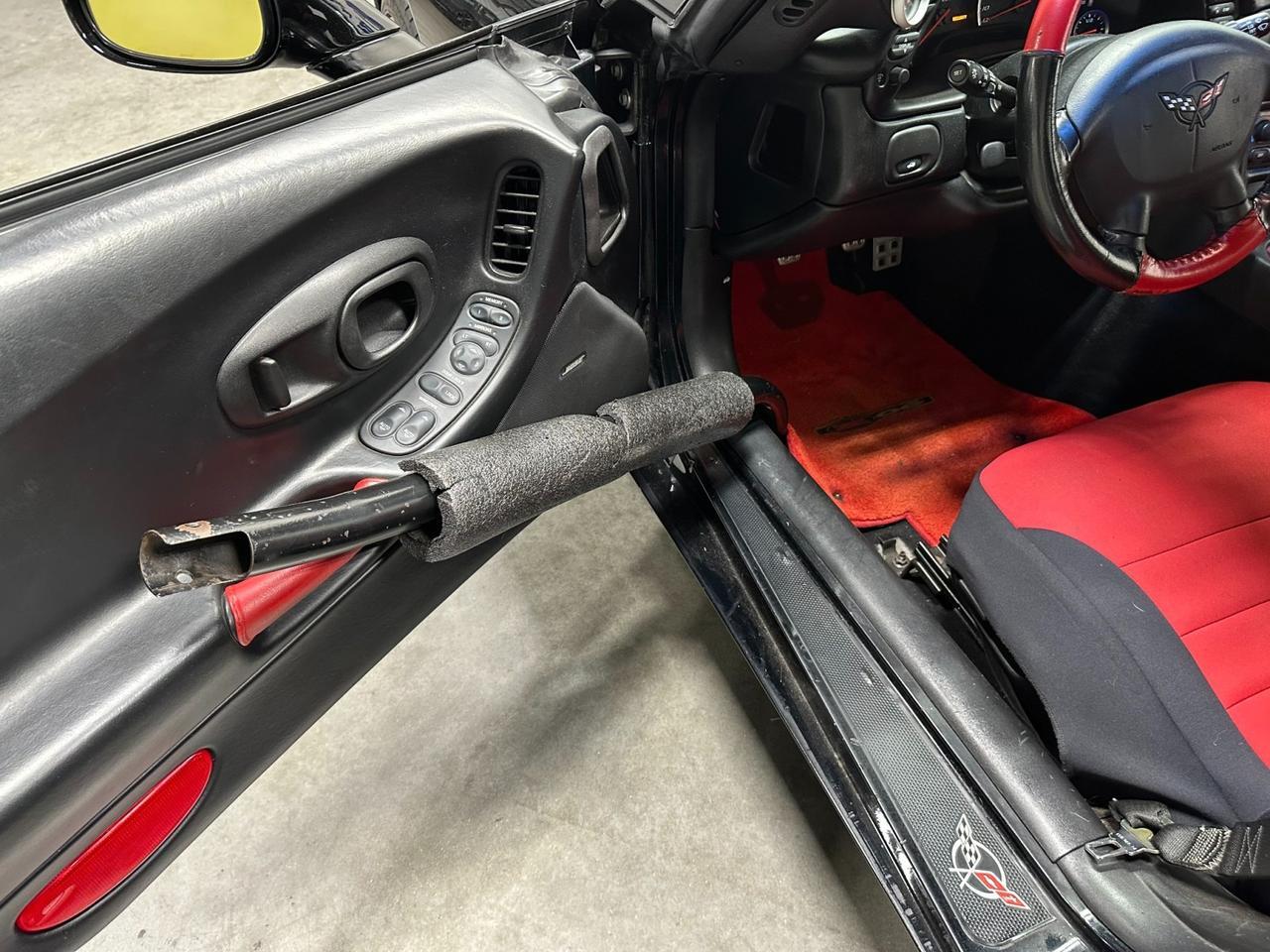

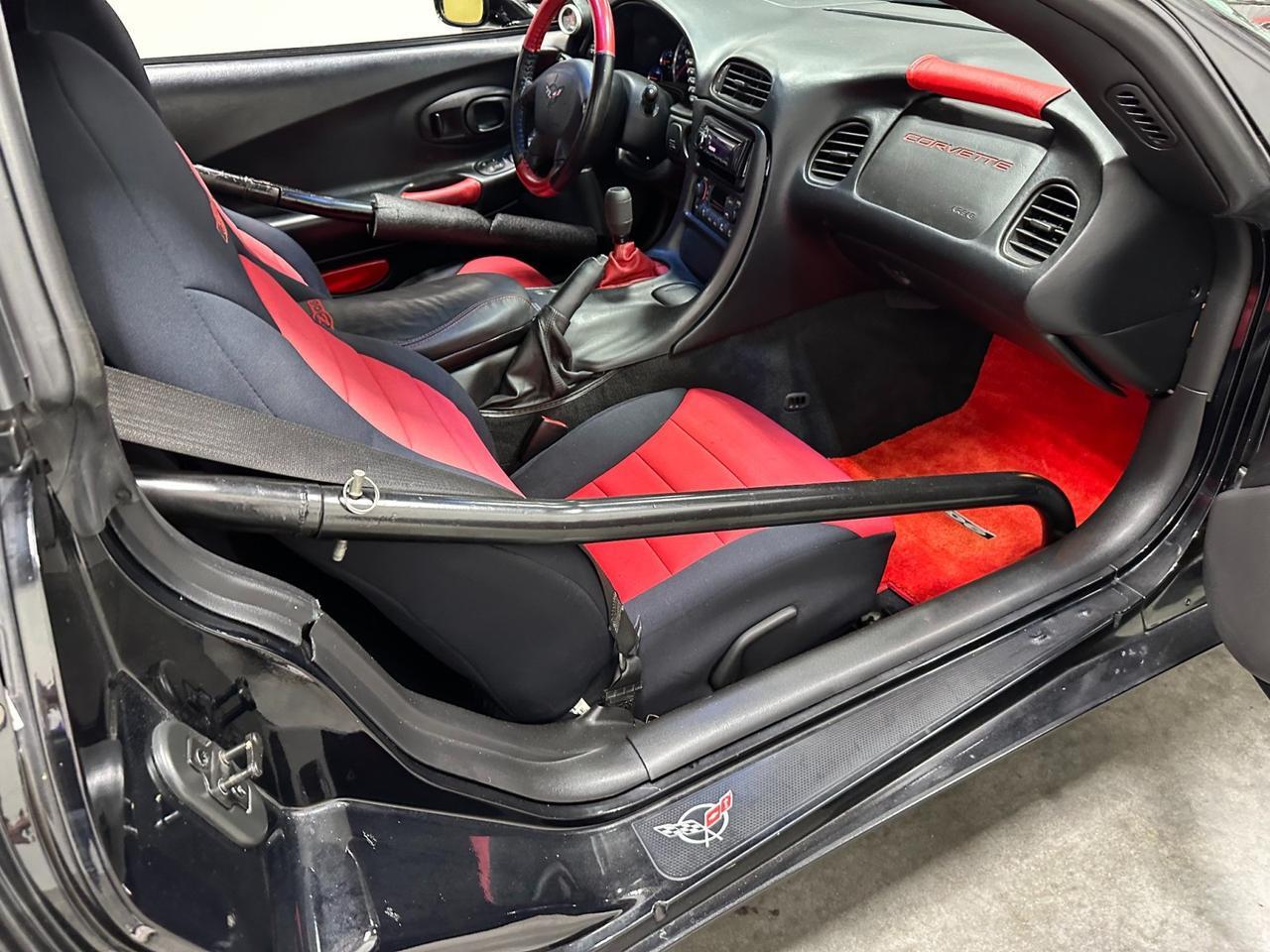

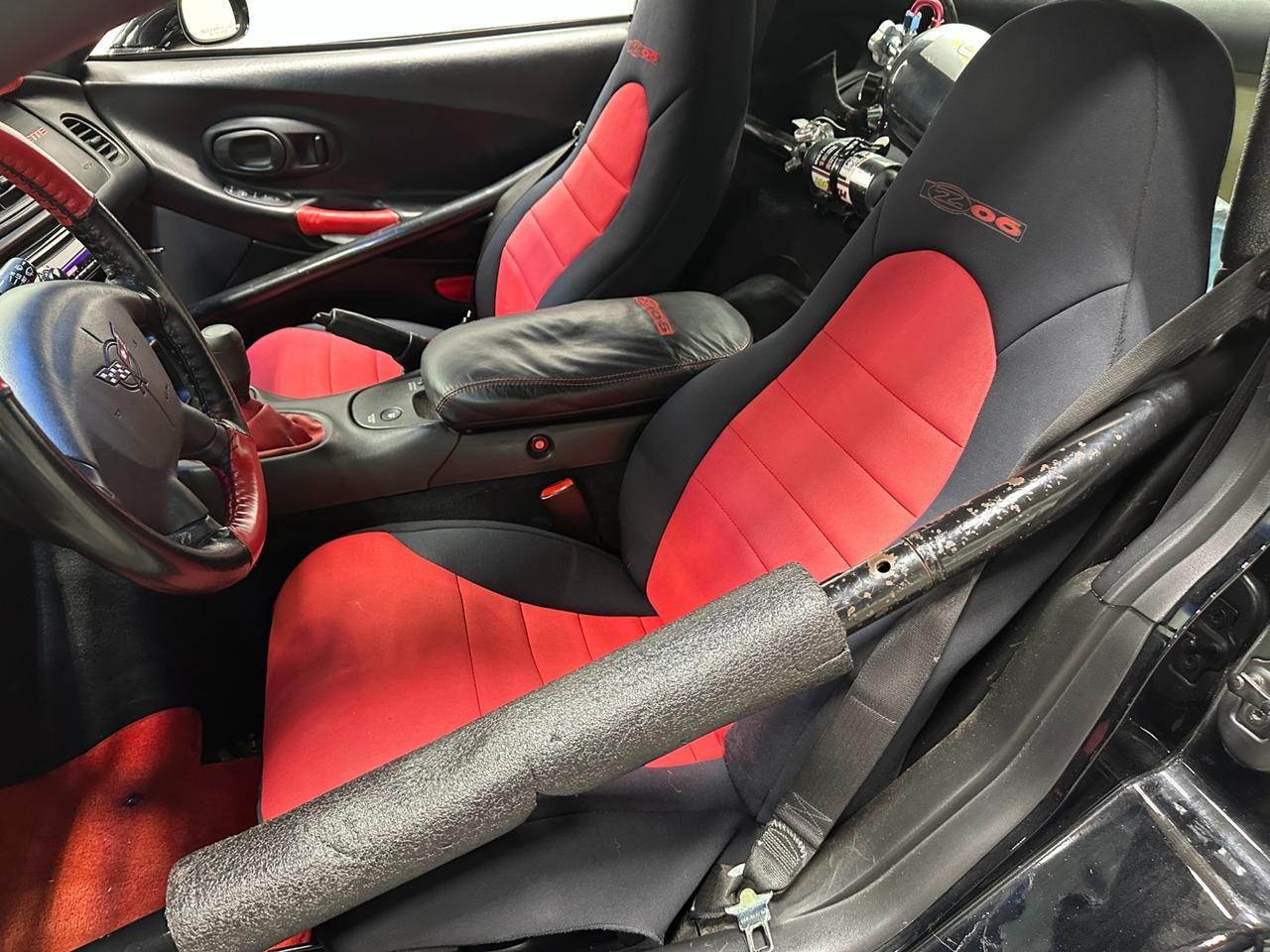

        • Roll bar kit (6 point) — Wolfe Racing — $763 — 05/14/09

        • Mini tubs — WPS (Lingenfelter) — $800 — 08/18/09

        • SS Vent Cover — West Coast Corvettes — $70 — 08/18/09

        • Front fender vent screens — West Coast Corvettes — $40 — 08/19/09

        • Radar Detector power cord — Invisicord — $15 — 08/20/09

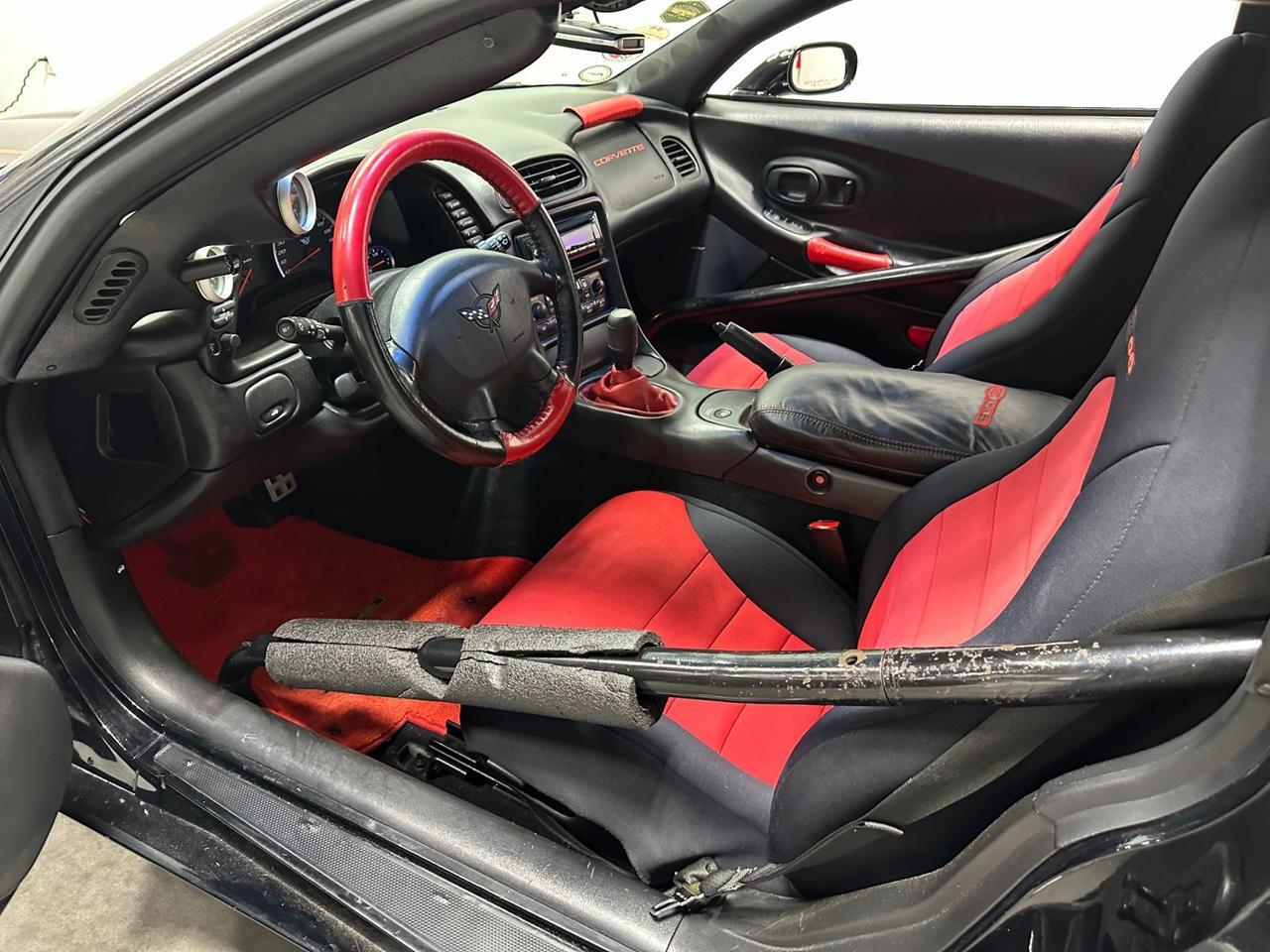

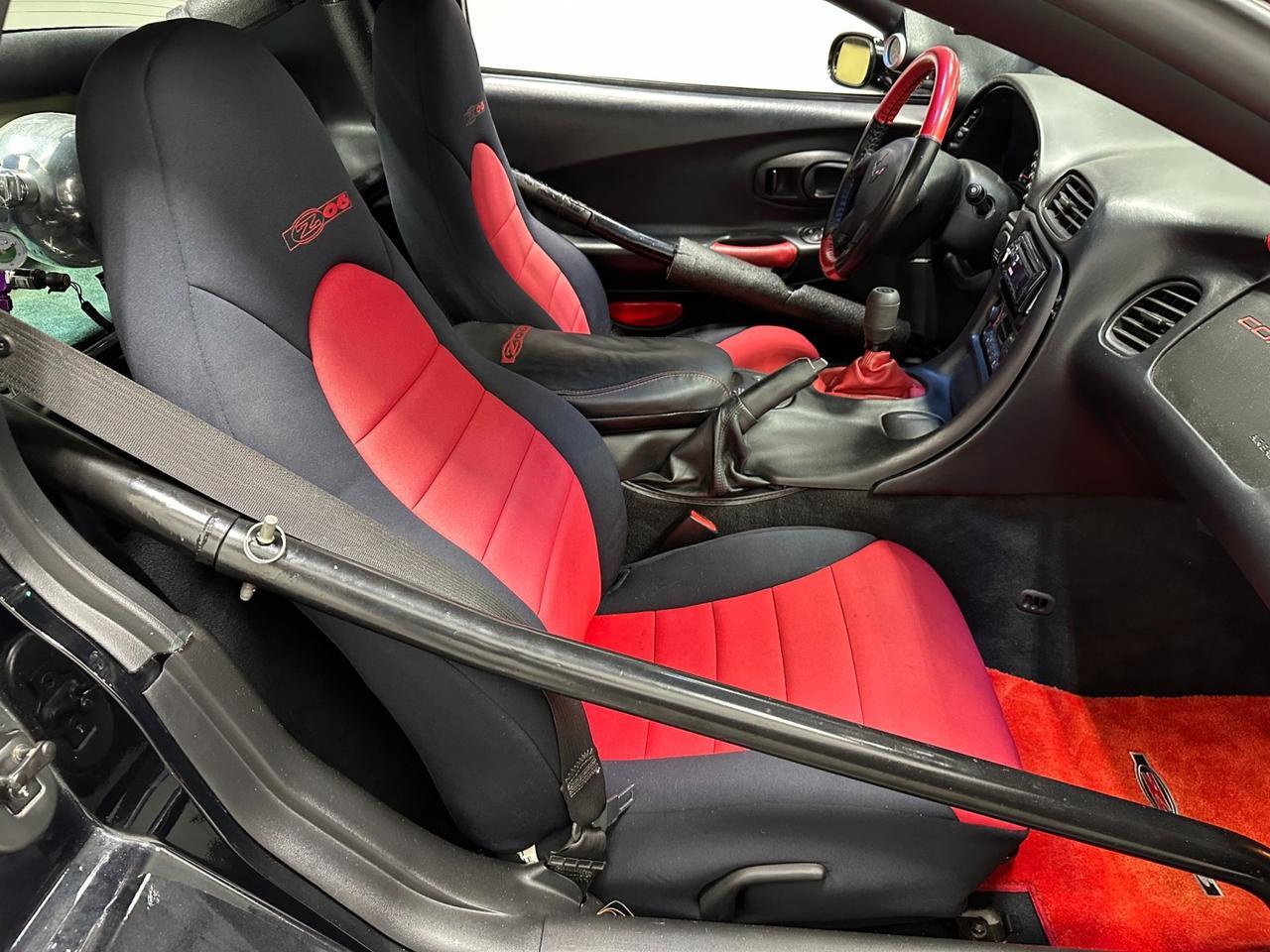

        • Racing seats — Corbeau (A4) — $1,520 — 02/01/10

        • Wide Body Quarter Panels — Total Performance Eng’g — $899 — 06/02/10

        • Nose Cap (polished SS) — West Coast Corvettes — $100 — 06/11/12

        • Column Lock Kit — Corvette World — $100 — 02/22/25

        • Installation — PowerFab Autosports — $340 — 02/24/25

      • Chassis / Suspension

        • Speed Bleeders — Corvette Central — $14 — 06/13/02

        • SS Brake Hose — Corvette Central — $120 — 06/20/02

        • Heavy Duty Tie Rod Ends (2) — Corvette Central — $80 — 08/02/02

        • Battery Disconnect Switch — Mid America Direct — $18 — 11/06/02

        • Tunnel Reinforcement Plate (Alum., Red) — Elite Engineering — $195 — 06/07/06

        • Radiator Screen (Black Powder Coated) — Elite Engineering — $98 — 06/07/06

        • Frame rails — Elite Engineering — $149 — 07/01/07

        • Frame Guards — Elite Engineering — $50 — 07/01/07

        • Brake rotors (4) — Powerslot — $590 — 06/17/08

        • Brake pads (ceramic) — Hawk — $225 — 06/17/08

        • Wheels (C6 Z06 Black, 2-18×9.5, 2-19×12) — House of Wheels — $935 — 12/14/09

      • Body / Interior

        • Trunk Lid Liner — Corvettes of Houston — $80 — 05/30/02

        • Glove Box Cover — Corvettes of Houston — $100 — 05/30/02

        • Floor Mats — Corvettes of Houston — $89 — 05/30/02

        • Cargo Mat — Corvettes of Houston — $99 — 05/30/02

        • Underhood Display Insert — Corvette Central — $33 — 06/07/02

        • Custom Lower Door Seals — Corvette Central — $21 — 06/13/02

        • Gas Guard — Corvette Central — $6 — 06/13/02

        • NOAH Car Cover — Corvette Central — $140 — 06/19/02

        • Red RH SD Airbag Letters — Corvette Central — $17 — 06/24/02

        • Steering Wheel Emblem Decal — Corvette Central — $18 — 06/24/02

        • Steering Wheel Wheelskin — Mid America Designs — $35 — 08/02/02

        • JL Audio amplifier (250W) / 10” sub — Car Toys — $803 — 08/02/02

        • Radar Detector Bracket — Corvette Central — $16 — 08/12/02

        • Radar Detector (Escort 8500) — Car Toys — $270 — 08/15/02

        • Aluminum Dead Pedal — Corvettes of Houston — $53 — 10/10/02

        • Aluminum Gas Pedal — Corvettes of Houston — $58 — 10/10/02

        • Rear Side Marker Lamp Lens (Amber, 2) — Mid America Direct — $26 — 11/06/02

        • European Tail Light Conversion — Corvettes of Houston — $59 — 11/23/02

        • European Tail Lights (amber, 2 each) — Corvettes of Houston — $100 — 11/23/02

        • European Tail Lights (amber, 2 each) — Corvettes of Houston — $110 — 11/23/02

        • Fire Extinguisher Bracket — OG Racing — — 03/28/03

        • Fire Extinguisher — OG Racing — — 03/28/03

      • Exterior / Interior Mods

        • Gauge Bezels — Davis Jones — — 03/25/06

        • HID headlight conversion (HI / LO beams) — DJ Motorsports — $80 — 06/15/06

        • Tiger Shark front fascia — Starcraft — $805 — 03/05/09

        • Racing seat belts — Wolfe Racing — $552 — 05/12/09

        • Roll bar kit (6 point) — Wolfe Racing — $763 — 05/14/09

        • Mini tubs — WPS (Lingenfelter) — $800 — 08/18/09

        • SS Vent Cover — West Coast Corvettes — $70 — 08/18/09

        • Front fender vent screens — West Coast Corvettes — $40 — 08/19/09

        • Radar Detector power cord — Invisicord — $15 — 08/20/09

        • Racing seats — Corbeau (A4) — $1,520 — 02/01/10

        • Wide Body Quarter Panels — Total Performance Eng’g — $899 — 06/02/10

        • Nose Cap (polished SS) — West Coast Corvettes — $100 — 06/11/12

        • Column Lock Kit — Corvette World — $100 — 02/22/25

        • Installation — PowerFab Autosports — $340 — 02/24/25

Vehicle info

Stock
 NCS0001528
VIN
 1G1YY12S225127640
Dealer
 Net Car Showroom
Year
 2002
Make
 Chevrolet
Model
 Corvette
Mileage
 48,117
Dealer Certified
 No
Certified
 No
Date in Stock
 03/25/2026
Trim
 Z06
Model Number
 1YY37
Body
 Coupe
Body Style
 Coupe
Doors
 2
Cylinders
 8
Description
 5.7L SFI V8 Engine
Drivetrain
 Rear Wheel Drive
Fuel Type
 Gas
Exterior Color
 Black
Interior Color
 Black
EPA City
 19
EPA Highway
 28
Portions of the data provided are © 2026 Autodata, Inc. dba ChromeData

EQUIPMENT DETAIL

Generic
  • 17" front 5-spoke aluminum wheels
  • 18" rear 5-spoke aluminum wheels
  • 18.5 gallon fuel tank
  • 3.42 rear axle ratio
  • 4-wheel anti-lock braking system
  • 4-wheel anti-lock braking system
  • 4-wheel double wishbone independent suspension w/transverse fiberglass leaf springs
  • 5.7L (346) SFI V8 engine
  • 6-speed manual transmission w/5th & 6th gear OD
  • 6-way pwr driver seat
  • Active handling system
  • Body-color pwr heated mirrors
  • Bose speaker system
  • City 19/hwy 28 (5.7L engine/6-speed manual trans)
  • Courtesy lighting-inc: cargo area console glovebox
  • Cruise control w/resume speed
  • Day/night rearview mirror w/integral map light
  • Daytime running lamps
  • Daytime running lamps
  • Distributorless opti-spark ignition system
  • Driver & front passenger airbags w/passenger shut-off switch
  • Dual-zone air conditioning w/climate control

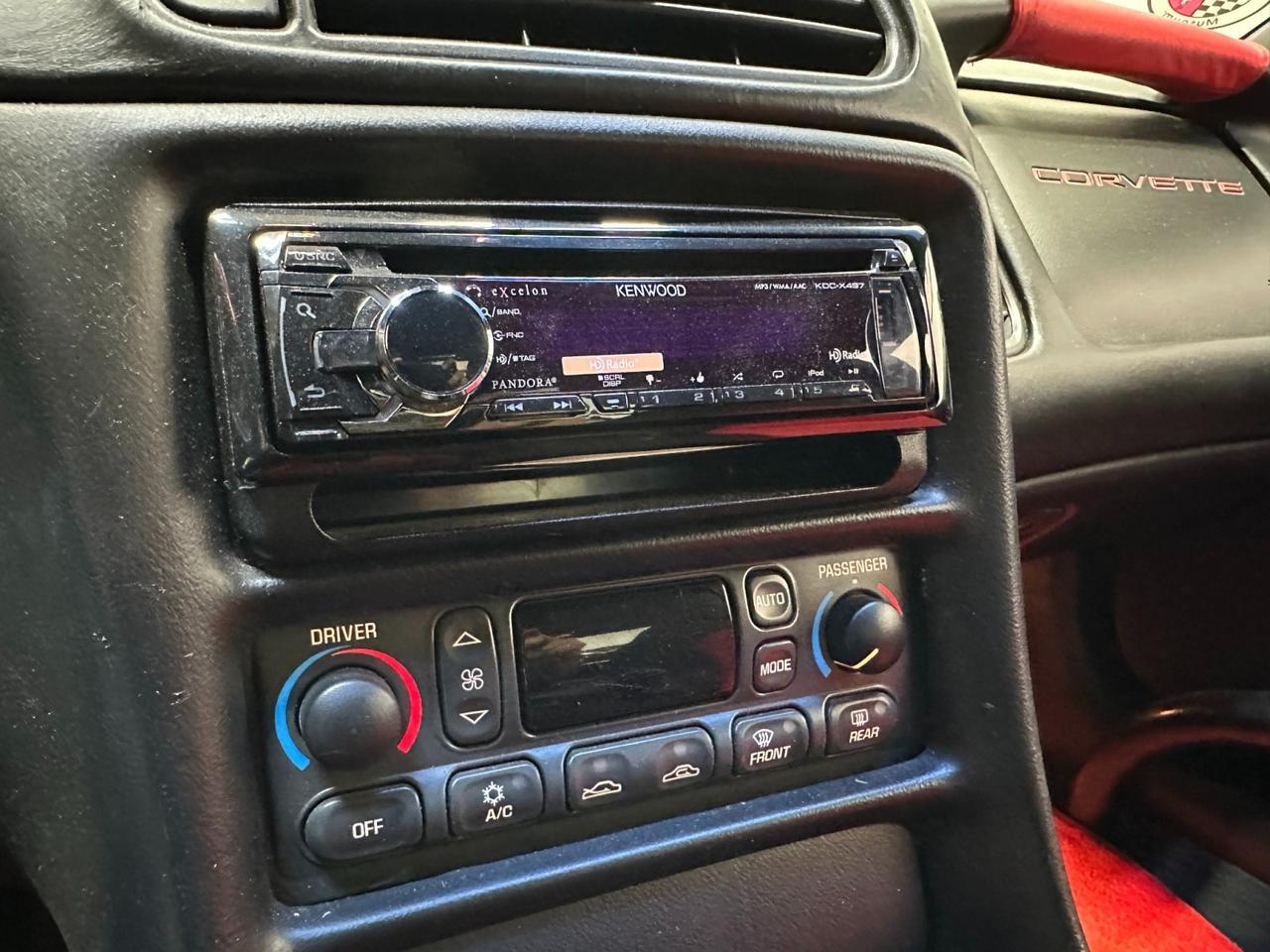

  • ETR AM/FM stereo w/compact disc-inc: seek-scan auto tone control TheftLock speed compensated volume digital clock
  • Fixed mast antenna
  • Floor mats
  • Head-up display
  • Illuminated covered visor mirrors
  • Intermittent windshield wipers
  • Leather bucket seats-inc: Z06 embroidered head restraints lateral support back-angle adjustment
  • Leather-wrapped tilt steering wheel
  • LEV certified (5.7L engine/6-speed manual trans)
  • Limited slip differential
  • Lockable storage compartments-inc: glovebox & (3) rear compartments
  • Locking center console-inc: cup holder ashtray coin traycassette/CD storage
  • Low oil level warning light
  • P265/40ZR17 Eagle F1 Supercar front tires
  • P295/35ZR18 Eagle F1 Supercar rear tires
  • PASS-Key II theft deterrent system w/alarm
  • Puncture sealant & inflator kit
  • Pwr 4-wheel disc brakes
  • Pwr door locks
  • Pwr retractable halogen headlamps
  • Pwr steering cooler
  • Pwr windows w/driver & passenger-side express down
  • Rear brake cooling ducts
  • Rear opening hood for easy engine access
  • Rear wheel drive
  • Rear window defogger
  • Remote keyless entry-inc: remote trunk release panic alarm
  • Solar-ray tinted glass
  • Speed sensitive variable assist rack & pinion steering
  • Tire sealant/inflator kit
  • Titanium mufflers & tailpipes w/chrome plated tips
  • Traction control
  • Traction control
  • Transmission temp warning light
  • Z06 fender emblems
  • Z06 performance handling-inc: stiffer springs/stabilizer bars
  • Z06 specific analog gauges w/multi-language driver information center
Show more Show less

Warranty Information

This vehicle is being sold as is, where is with no warranty, expressed written or implied. The seller shall not be responsible for the correct description, authenticity, genuineness, or defects herein, and makes no warranty in connection therewith. No allowance or set aside will be made on account of any incorrectness, imperfection, defect or damage. Any descriptions or representations are for identification purposes only and are not to be construed as a warranty of any type. It is the responsibility of the buyer to have thoroughly inspected the vehicle, and to have satisfied himself or herself as to the condition and value and to bid based upon that judgement solely. The seller shall and will make every reasonable effort to disclose any known defects associated with this vehicle at the buyer's request prior to the close of sale. Seller assumes no responsibility for any repairs regardless of any oral statements about the vehicle.

Terms and Conditions

Shipping is the purchasers responsibility. If in Texas, buyer pays all Texas taxes and fees. If purchaser is out of state, buyer pays Texas Inventory fee and doc fees.
